Quick Check

Quick Check

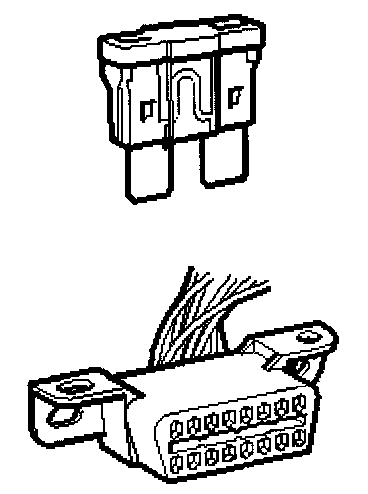

- Check and if necessary change fuses 17 and 27.
- Check pin 7 of the data link connector visually for possible pin displacement.

Is the function correct?

NO - Continue with Quick Check

YES - Check That the DICE Control Module Is Awake

Rectify the fault.

After performing this procedure Final Check
