Checking the ABS Control Module's Ground Connection

Checking the ABS Control Module's Ground Connection

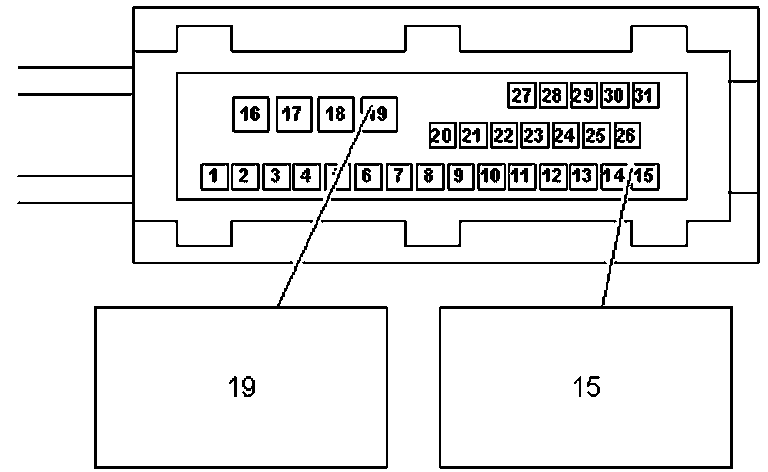

- Connect test lamp 86 11 857 to pins 15 and 19 of the control module's female connector.







- The test lamp should light.

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - II

YES - Final Check
