Checking the Power Supply For the Lamps on the LH Side

Checking the Power Supply For the Lamps on the LH Side

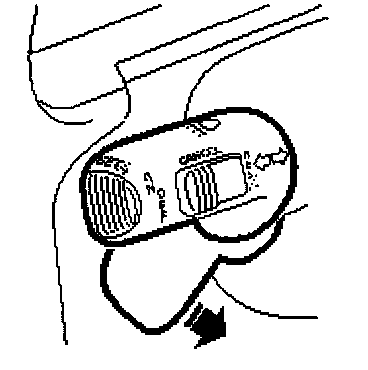

- Turn on the LH direction indicators.

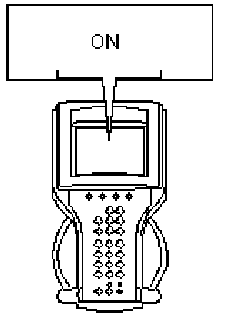

Test value: Left Direction Indicator Switch (DICE)
The reading should be: ON

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Checking the Direction Indicator Switch, Left

YES - Internal Control Module Fault
