Checking the Direction Indicator Switch, Left

Checking the Direction Indicator Switch, Left

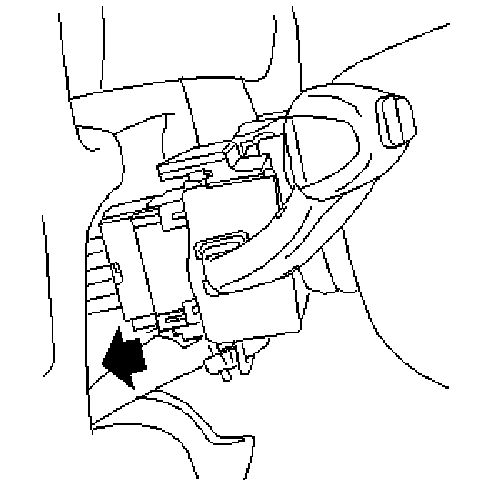

Unplug the connector:
- Direction indicator switch (24)

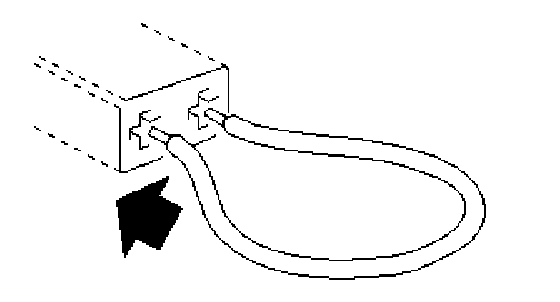

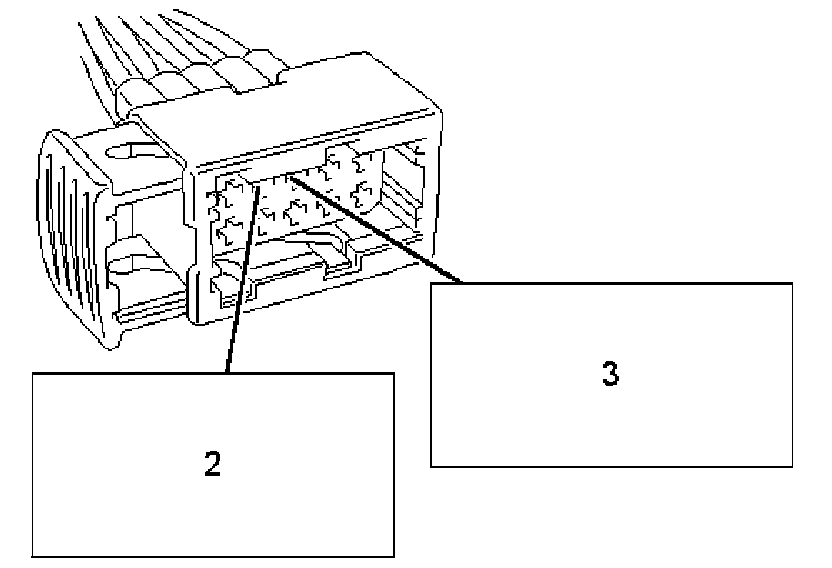

- Connect a Jumper lead between pins 2 and 3 of the female connector.

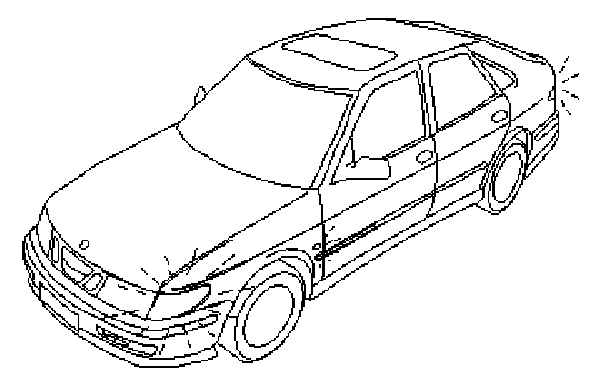

- The LH lamps should flash.

Is the function correct?

NO - Rectifying the Lead - II

YES - Changing Components - I
