Home >> Saab >> 2000 >> 9-3 Hatchback (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Hazard Flashers >> Rectifying the Lead - I

Rectifying the Lead - I




Rectifying the Lead

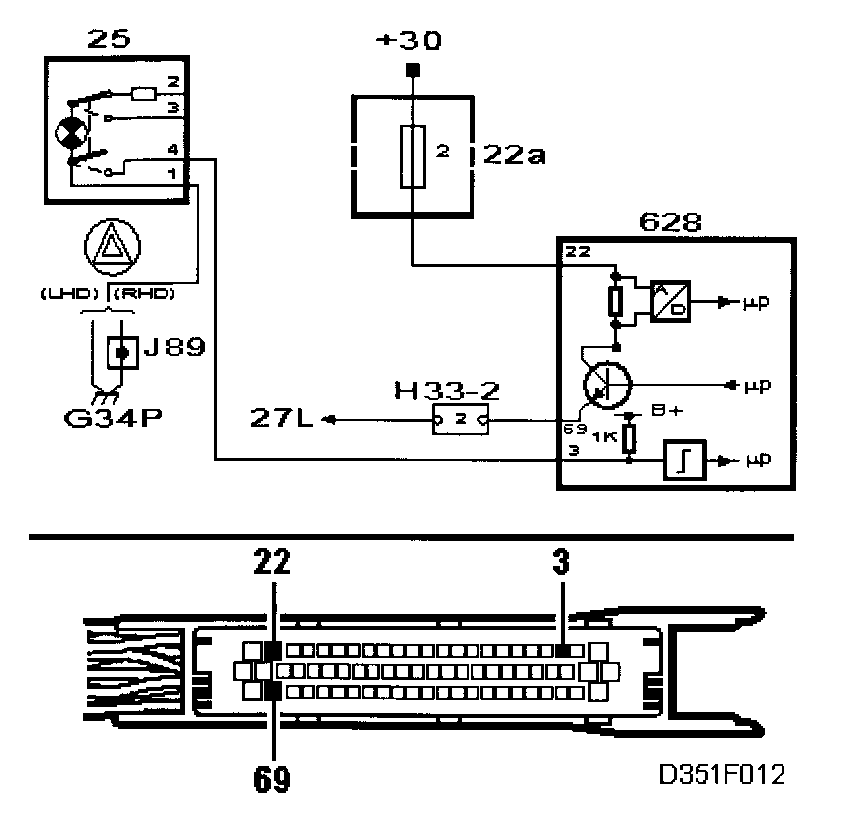

- Rectify the lead between pin 1 on the female connector to the switch and grounding point G34P.

After performing this procedure Final Check
