Checking the Power Supply, Continued

Checking the Power Supply, Continued

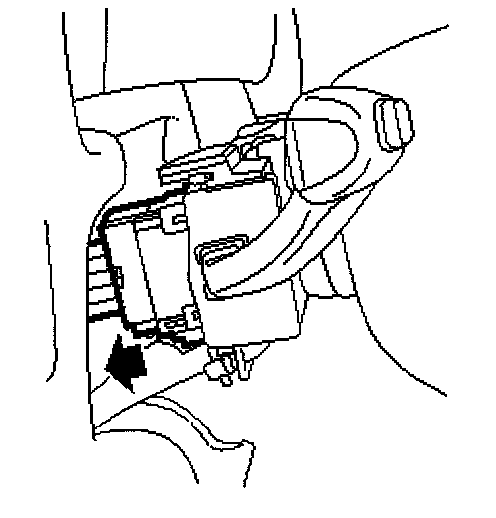

Unplug the connector:
- Direction indicator switch (24)

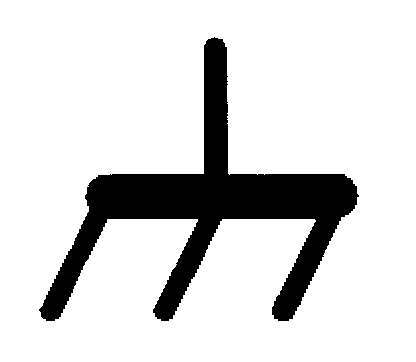

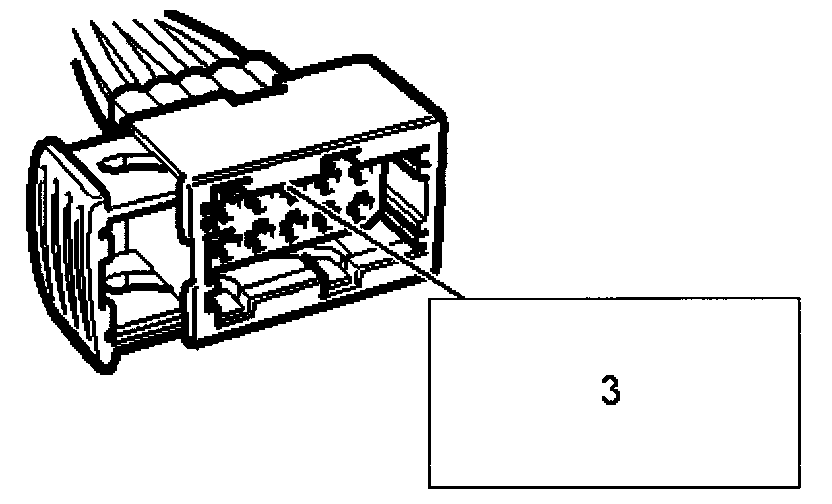

- Connect a test lamp to pin 3 and a good grounding point.







- The test lamp should light.

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - II

YES - Changing Components
