Checking the Lamp's Grounding

Checking the Lamp's Grounding

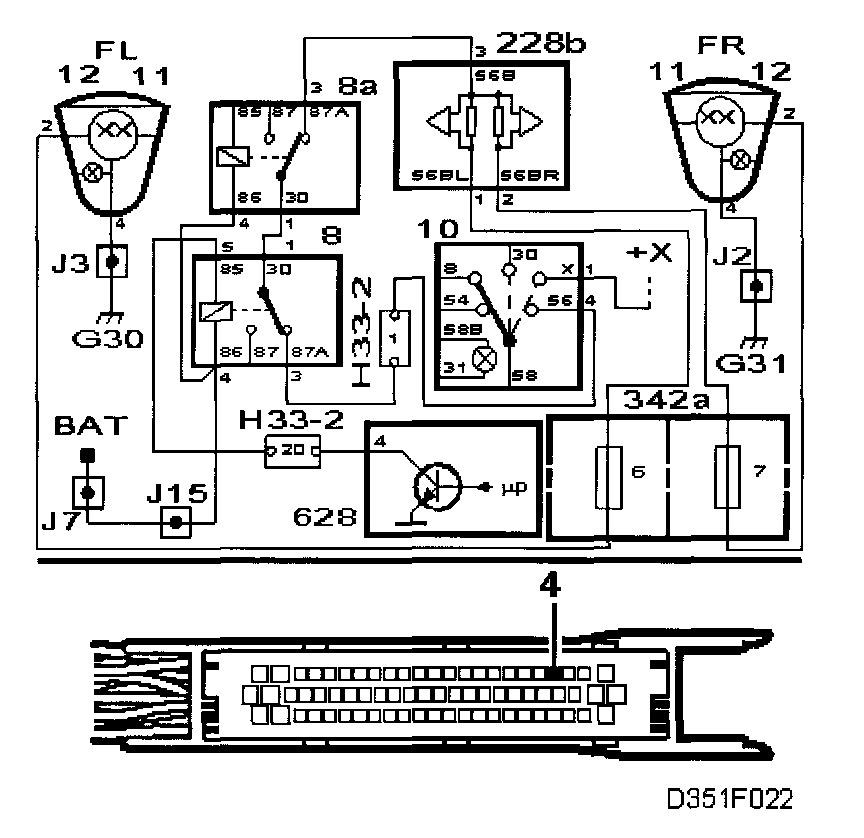

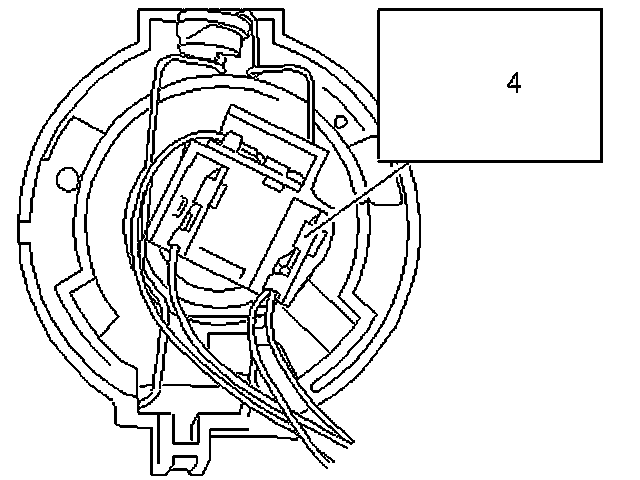

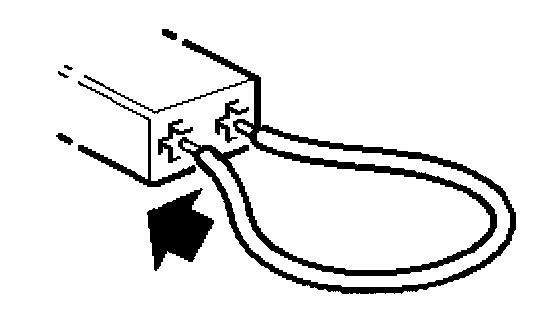

- Connect a jumper lead between pin 4 of the female connector at the back and a good grounding point.
- The lamp should come on

Is the function correct?

NO - Identifying the Fault, LH Side

YES - Rectifying the Lead - I
