Home >> Saab >> 2000 >> 9-3 Hatchback (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Front Fog Lights Malfunctioning >> Fault On LH Side >> Rectifying the Lead - II

Rectifying the Lead - II




Rectifying the Lead

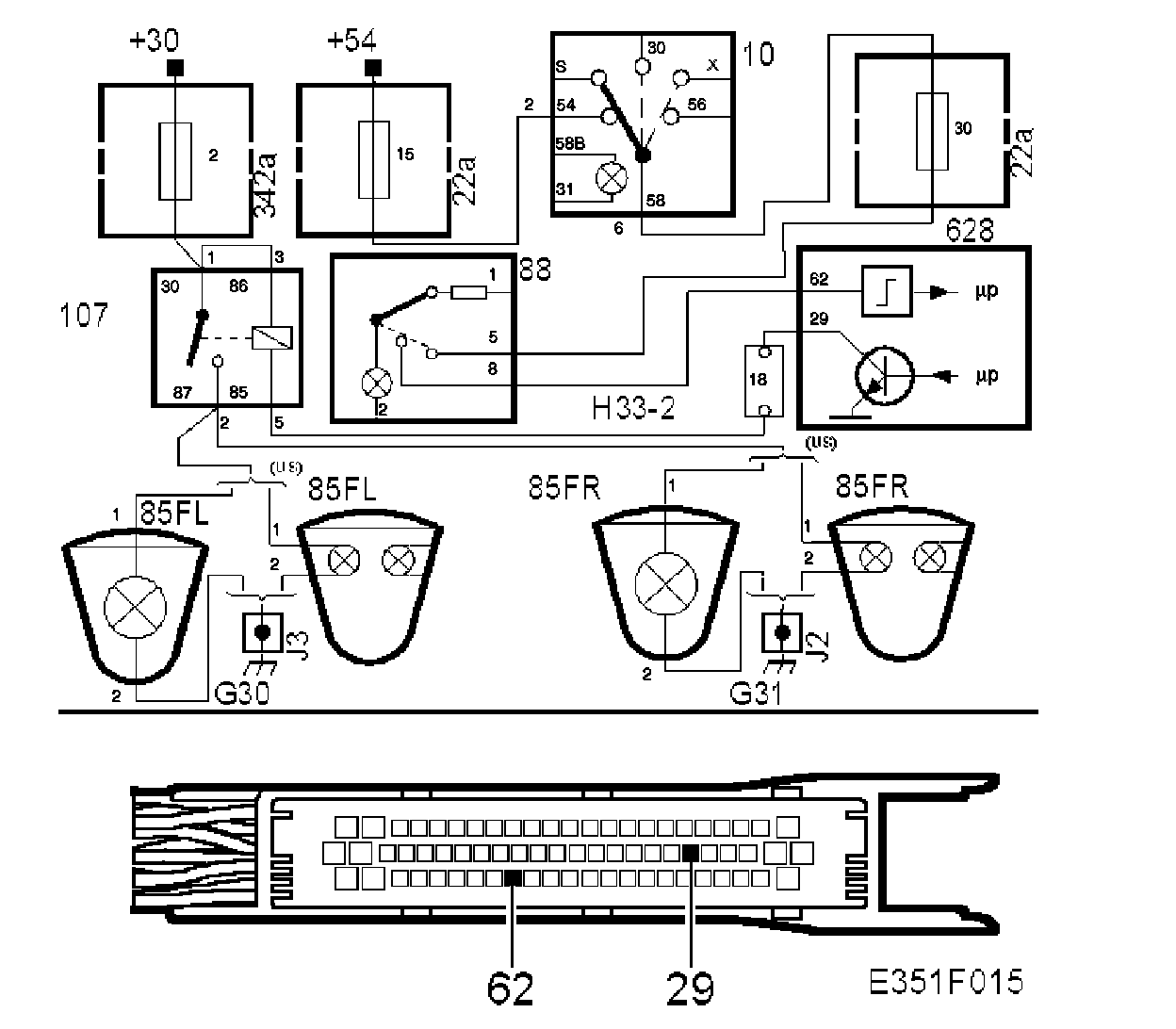

- Rectify the lead between pin 2 on the relay holder and pin 1 on the LH fog light lamp.

After performing this procedure Final Check
