Checking the Operation of the Relay

Checking the Operation of the Relay

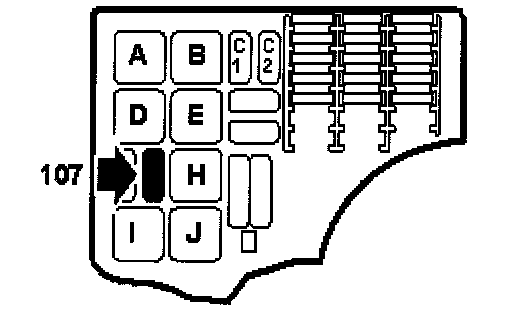

- Remove component: Fog lights relay

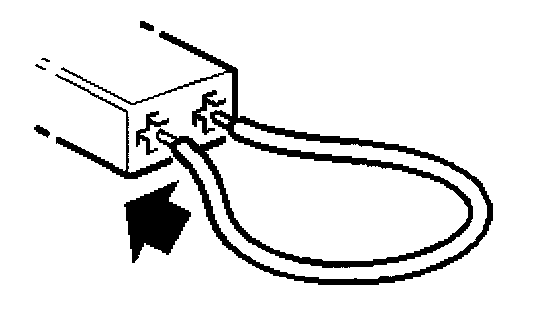

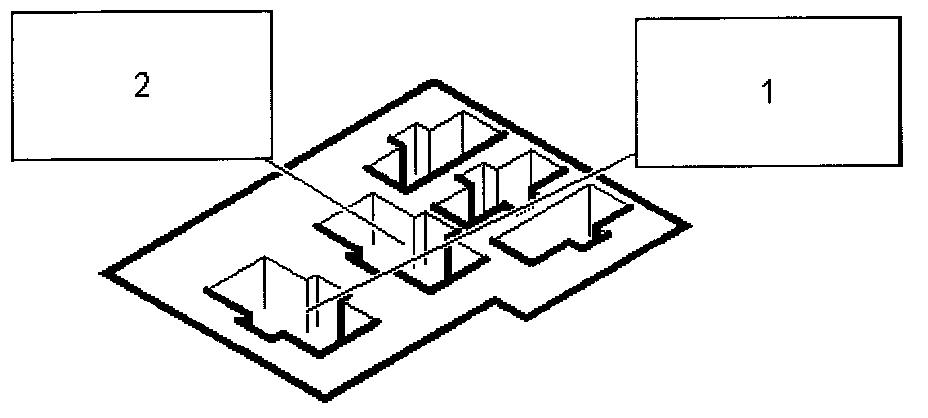

- Connect a jumper lead between pin 1(30) and pin 2(87) of the relay holder.

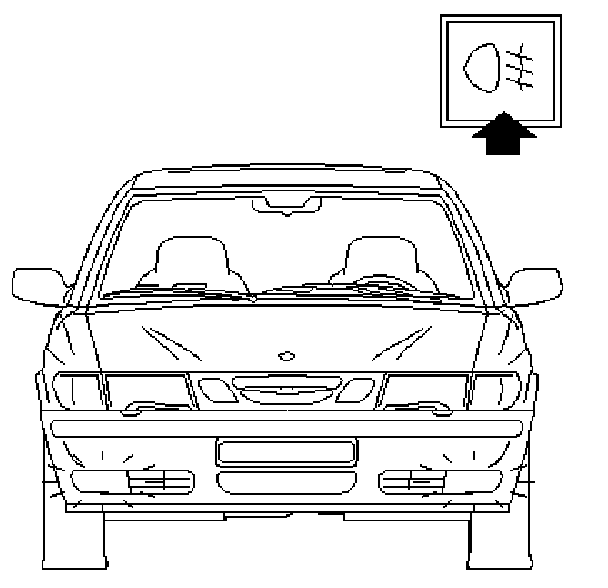

- The fog light should come on

Is the function correct?

NO - Rectifying the Lead - II

YES - Changing Components - I
