Home >> Saab >> 2000 >> 9-3 Hatchback (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Diagrams >> Electrical Diagrams >> Front Fog Lights

Front Fog Lights

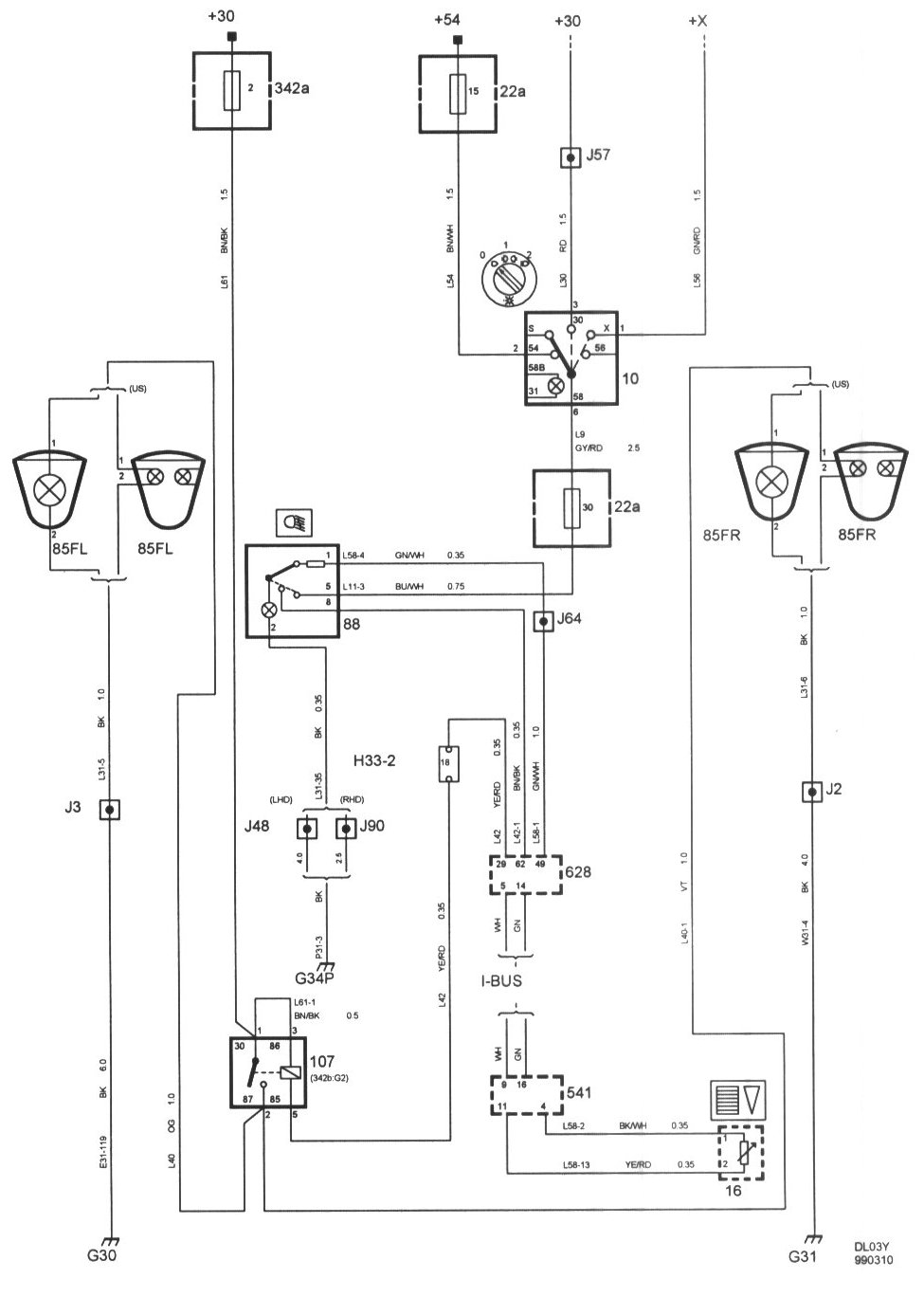

Front Fog Lights:

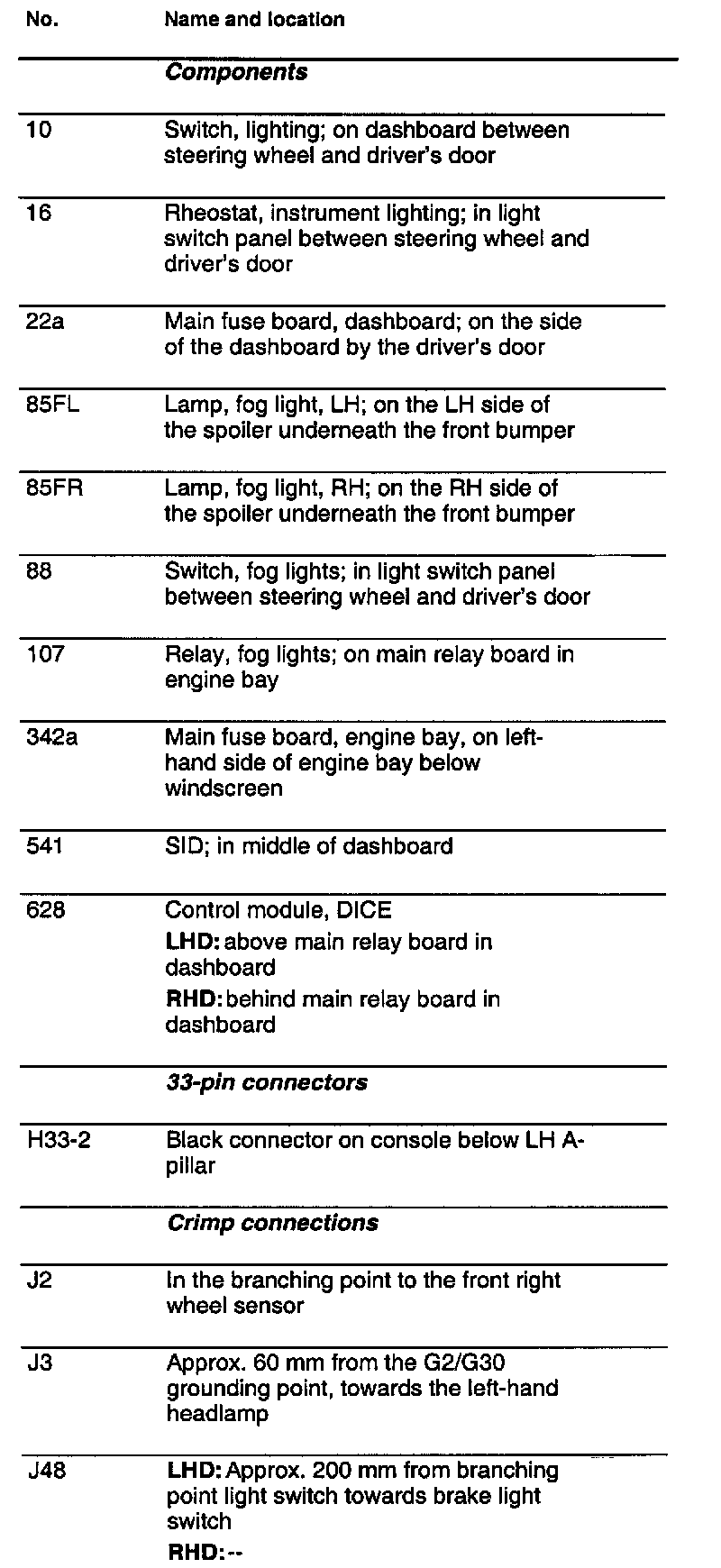

Component List, Part 1:

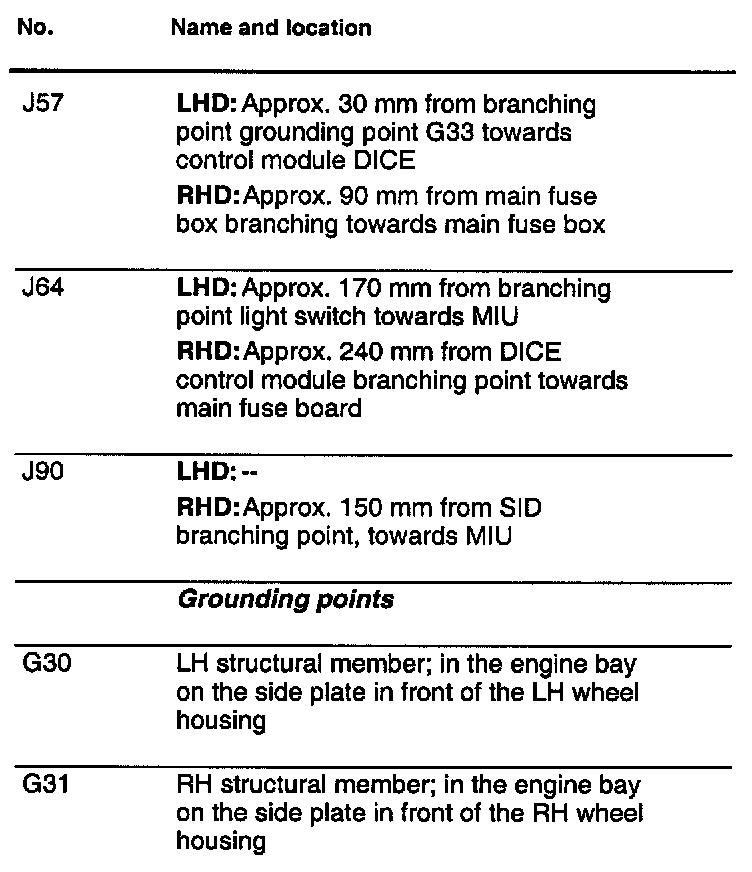

Component List, Part 2:
