Checking the Reversing Light Switch

Checking the Reversing Light Switch

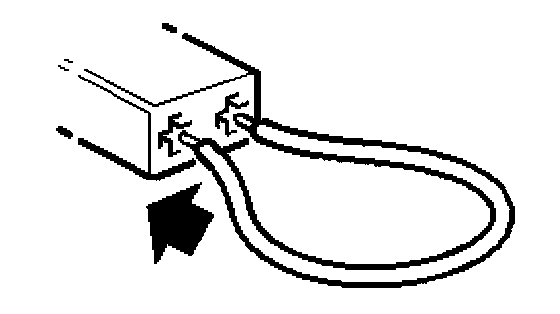

- Connect a jumper lead between pins 1 and 2 of the female connector.

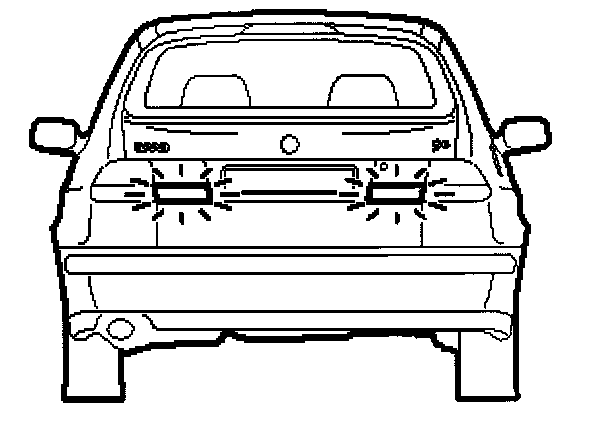

The reversing light should be on.

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - II

YES - Changing Components
