Home >> Saab >> 2000 >> 9-3 Hatchback (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Diagrams >> Electrical Diagrams >> Reversing Lights, Manual Gearbox

Reversing Lights, Manual Gearbox

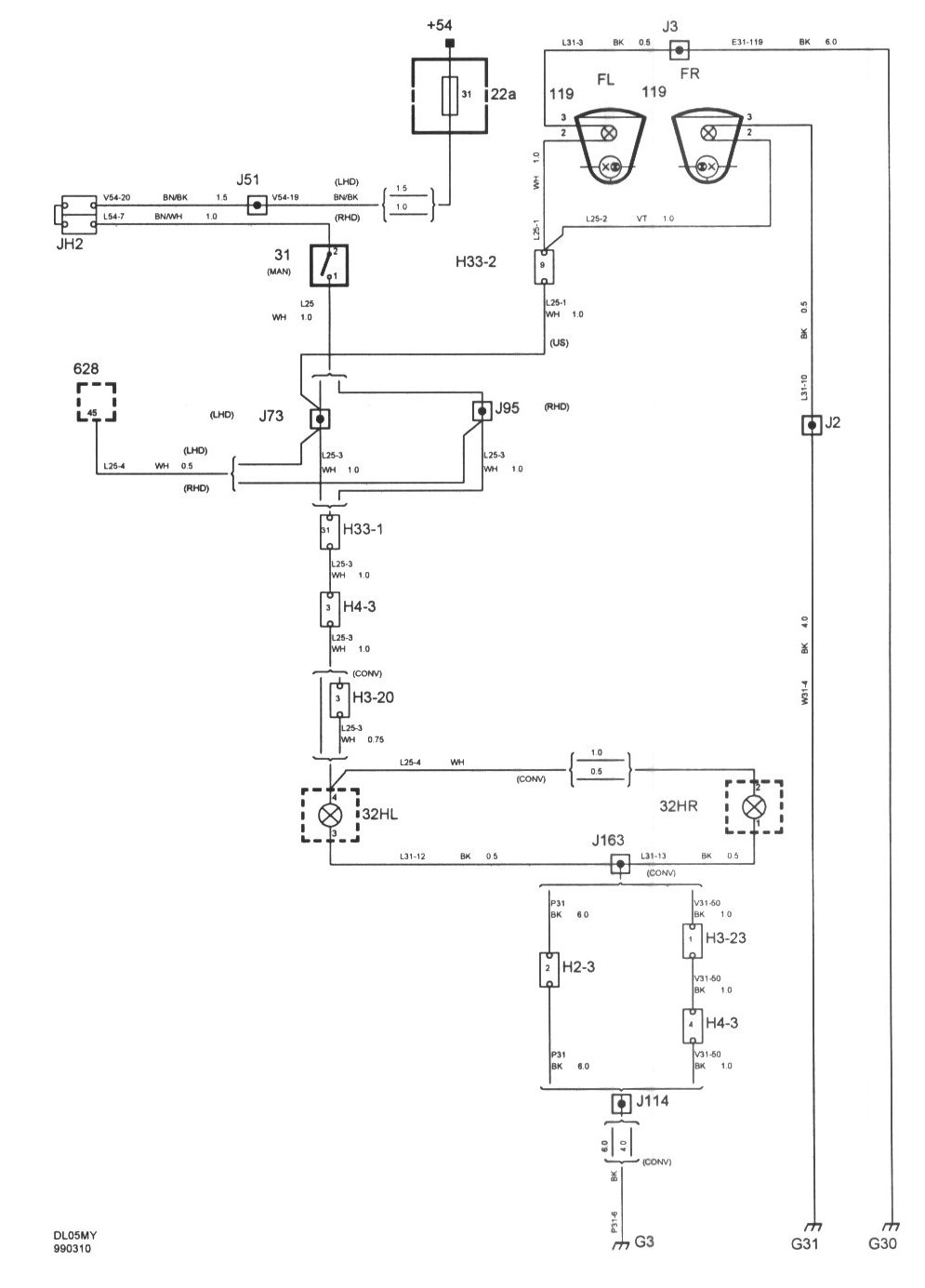

Reversing Lights, Manual Gearbox:

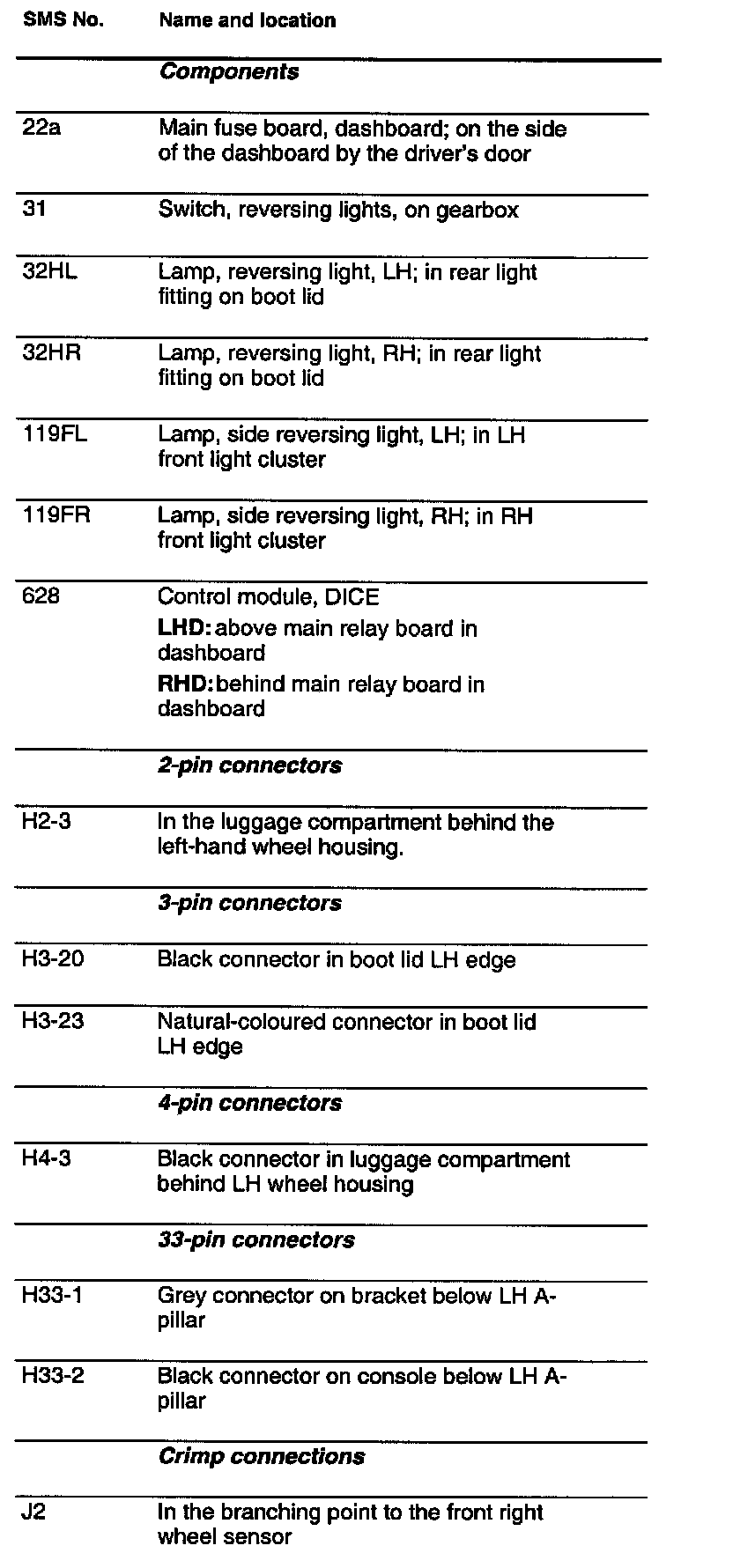

Component List, Part 1:

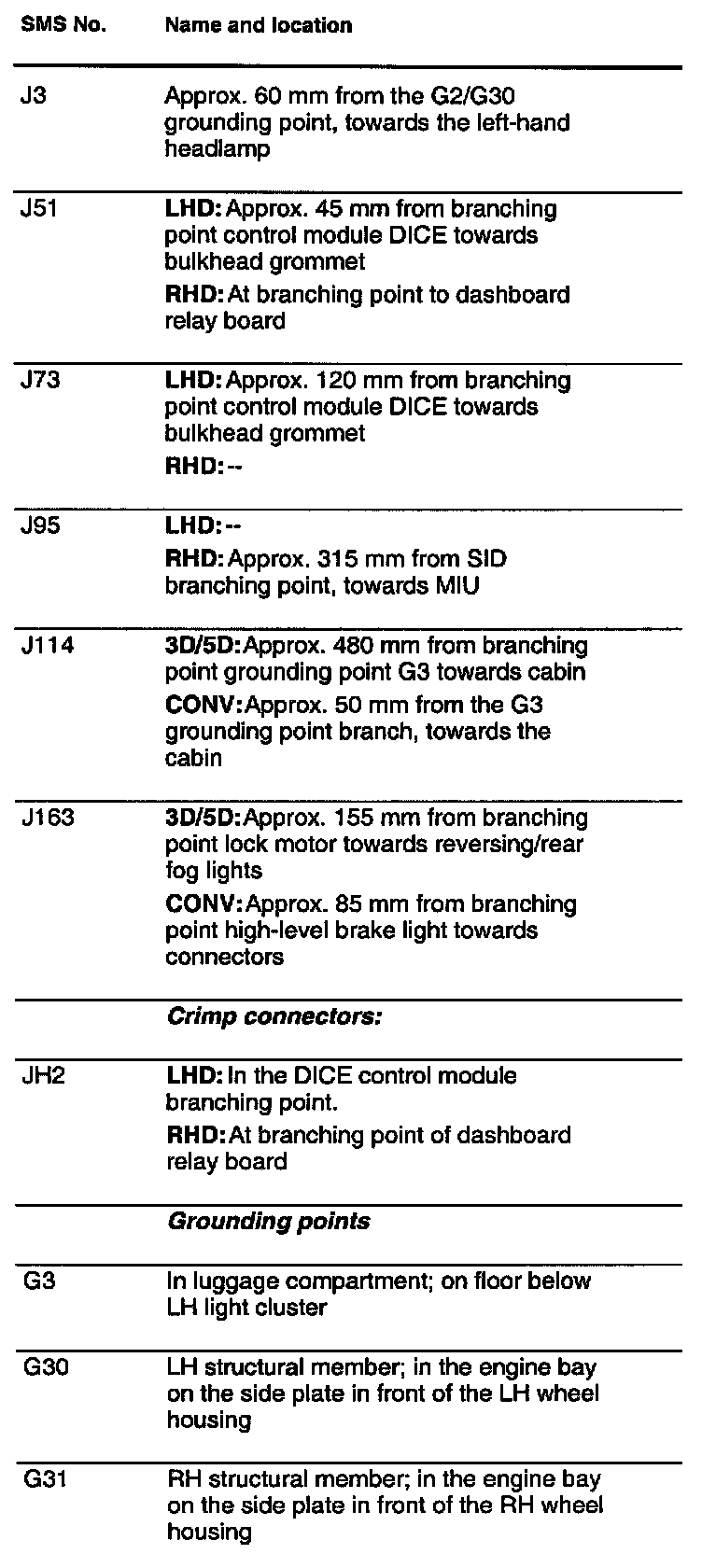

Component List, Part 2:
