Checking the Reading

Checking The Reading

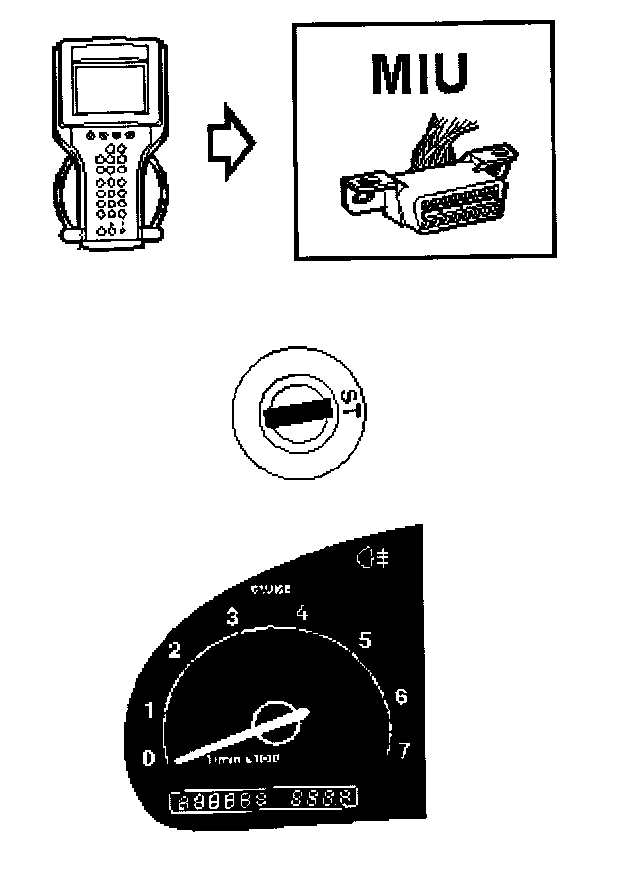

- Contact Main instrument unit.
- Read value: Engine RPM (Main instrument unit).
- Vary the engine speed.
- Check that the reading is plausible for the actual engine speed.

Is the function correct?

NO - Checking the Control Module Input

YES - Final Check
