Checking Control Module Input

Checking Control Module Input

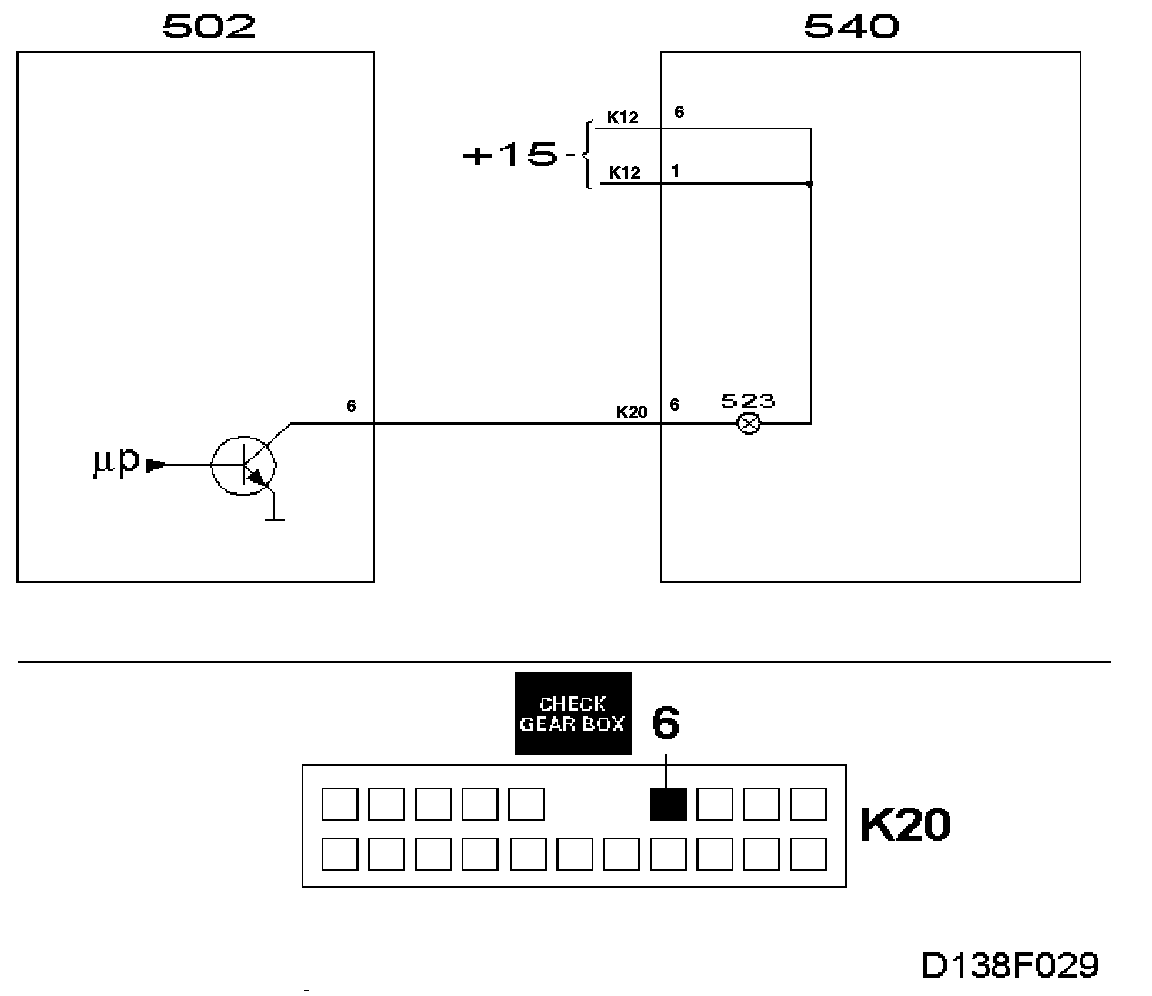

Unplug the connector:

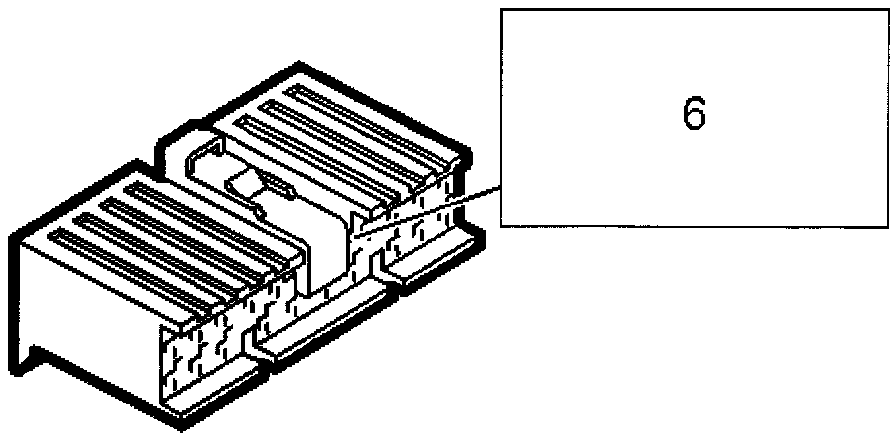

- Main instrument unit 20-pin connector (540)

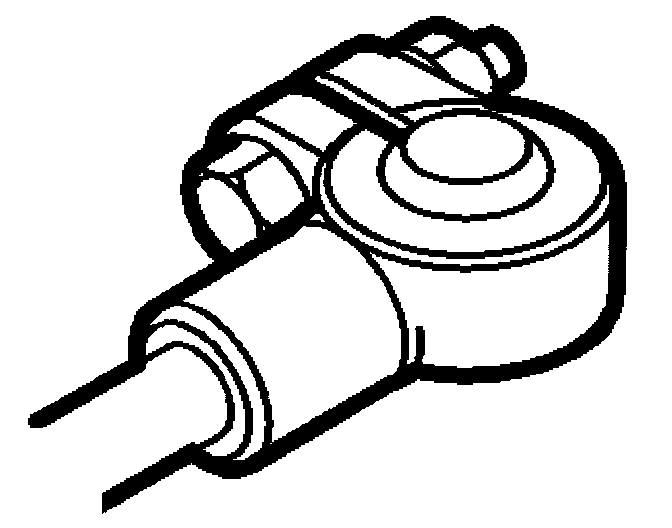

- Connect a test lamp to battery positive (B+) and pin 6 of the female connector.












- Turn the ignition switch to the ON position.
- Contact TCM.
Activate: CHECK GEARBOX Lamp (ON)







- The test lamp should light.

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead

YES - Changing Components
