Tech 2 Menu Structure, Read Values,, System Information

Tech 2 menu structure

Read / Clear Fault Codes
Read Values / Activate
Adjustment
Programming
Snapshot
System Information

Menu "Read Values"

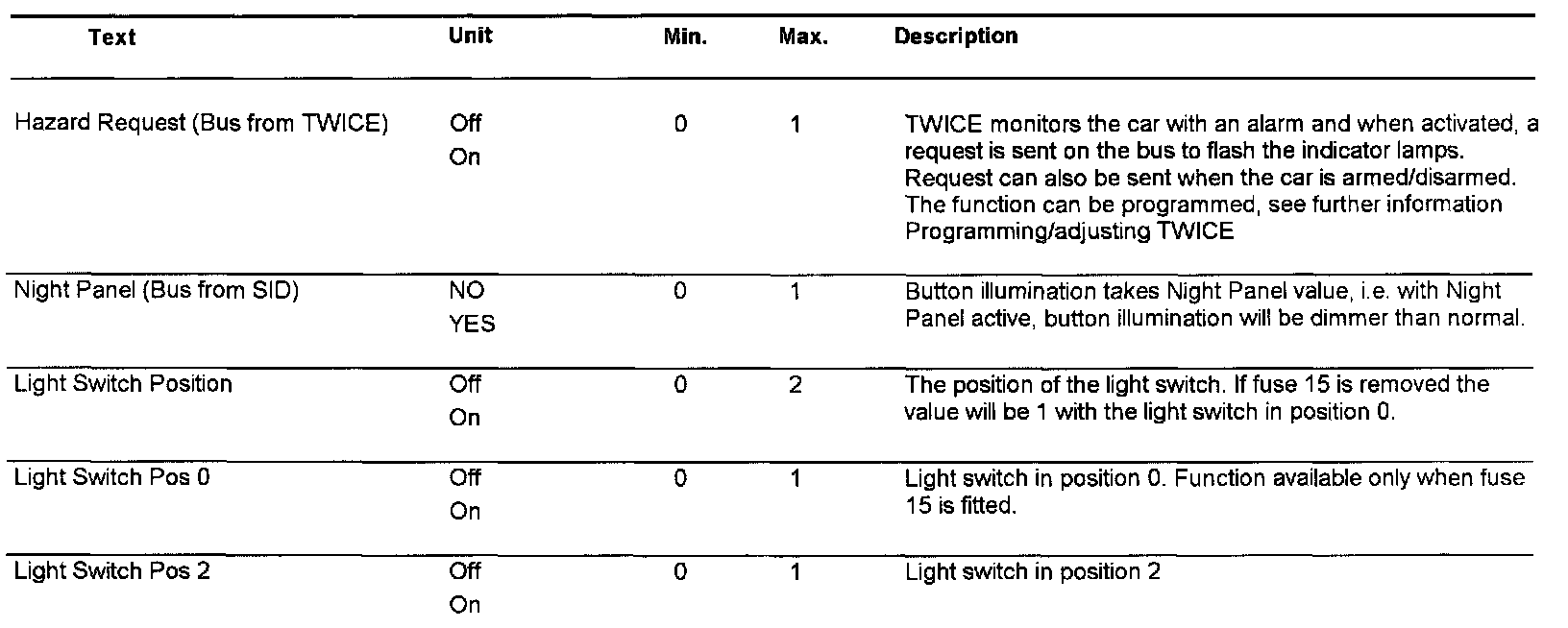

Menu "Read Values", Part 1:

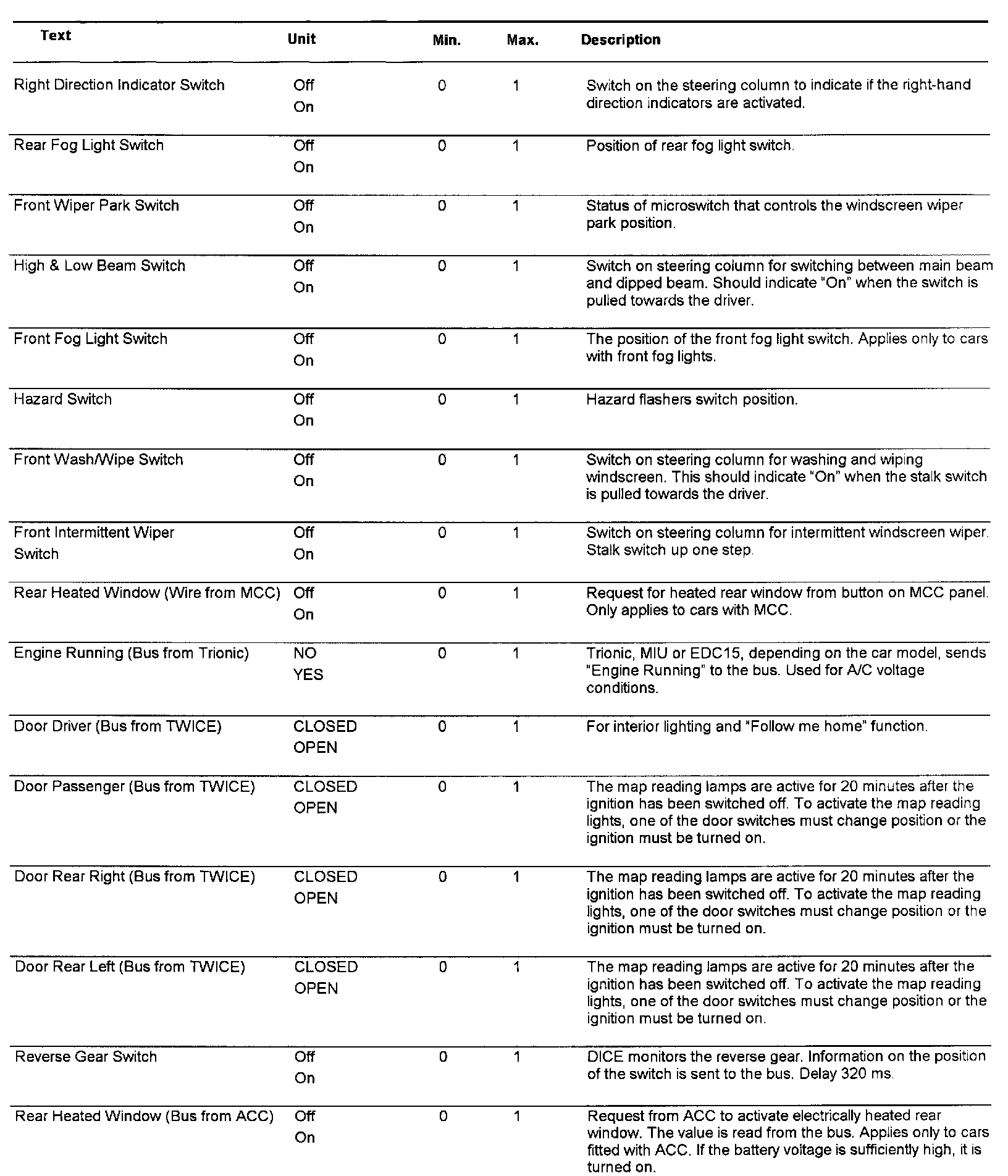

Menu "Read Values", Part 2:

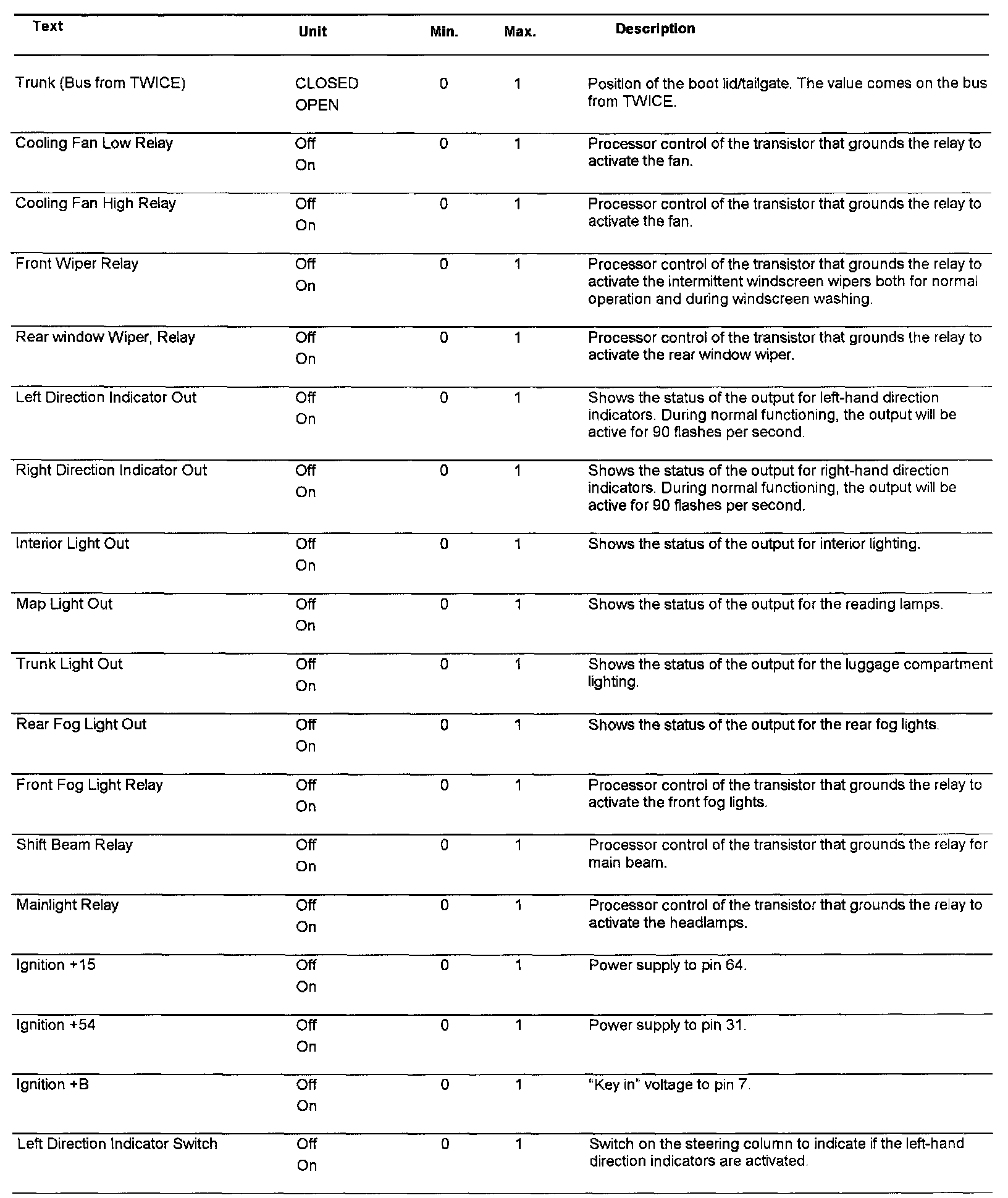

Menu "Read Values", Part 3:

Menu "Read Values", Part 4:

Menu "Activate"

Menu "Activate":

Menu "Adjustment"

Menu "Adjustment":

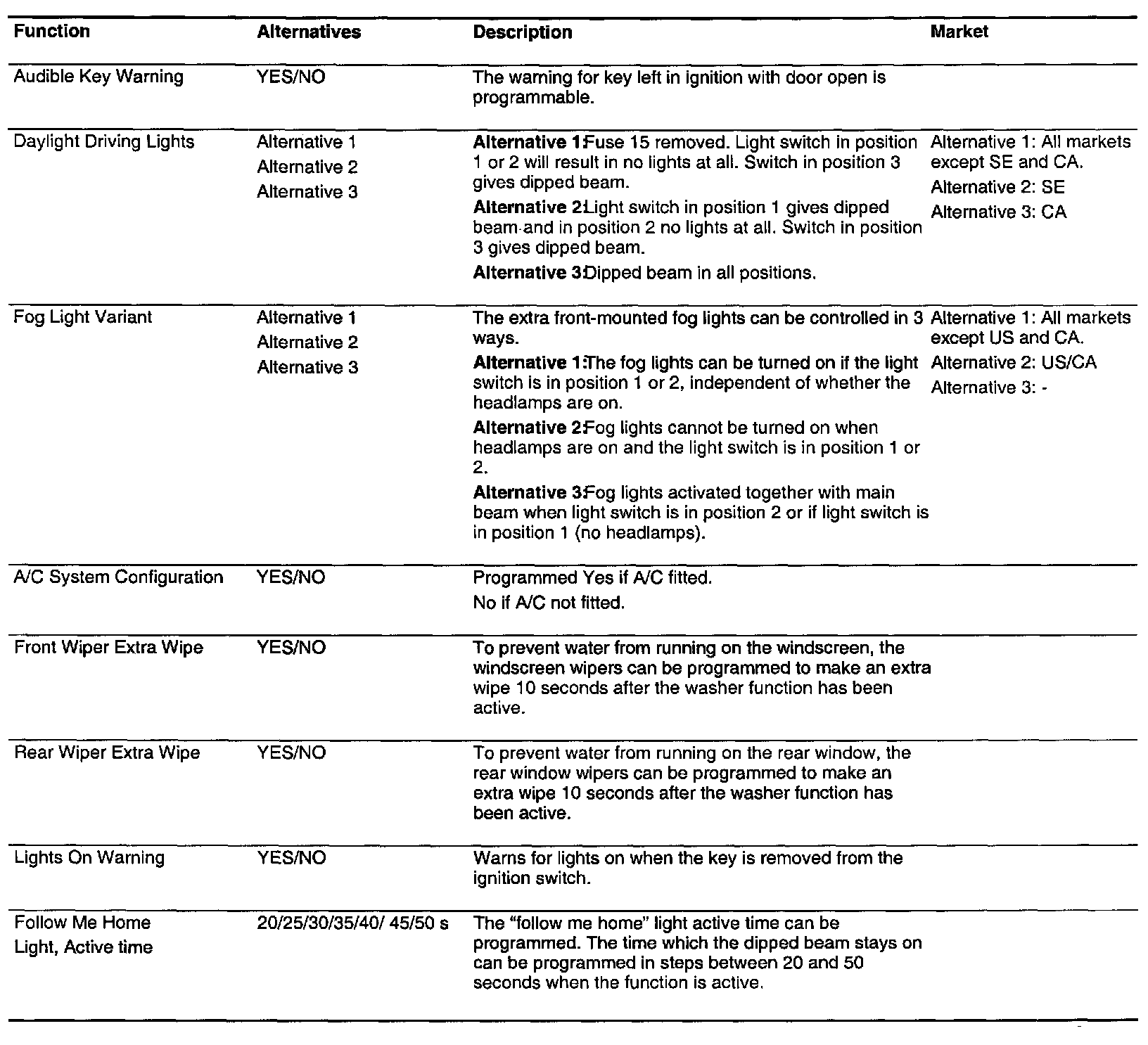

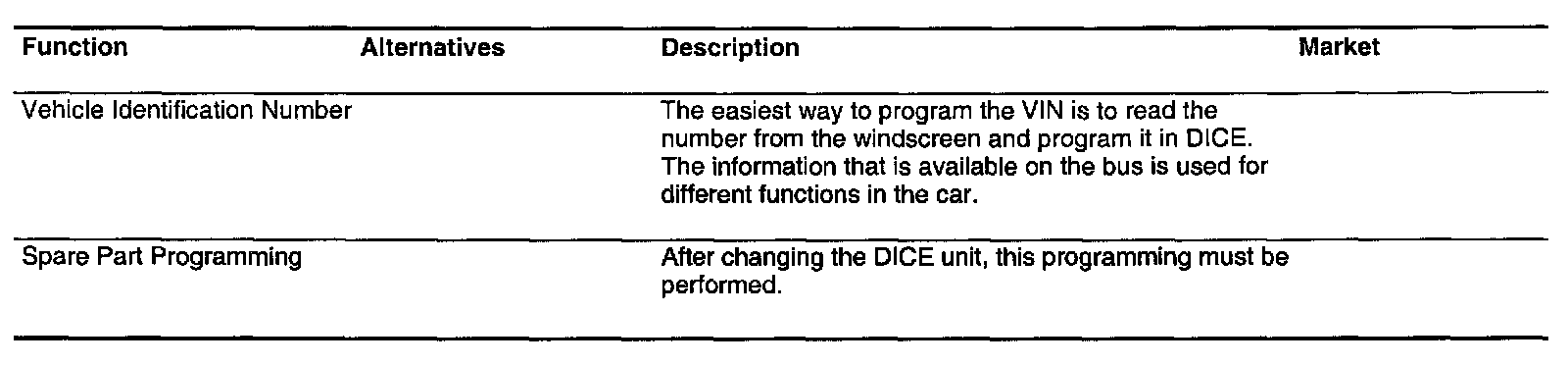

Menu "Programming"

Menu "Programming":

Menu "System information"


Text Function
SAAB Part Number: Displays SAAB's 7 digit part number for the control module.
Hardware Version Number: Displays the supplier's x-digit part number for the control module.
Software Version Number: Displays the supplier's x-digit part number for the software.
