A/C Function, Petrol Engine (Cars Without ACC)

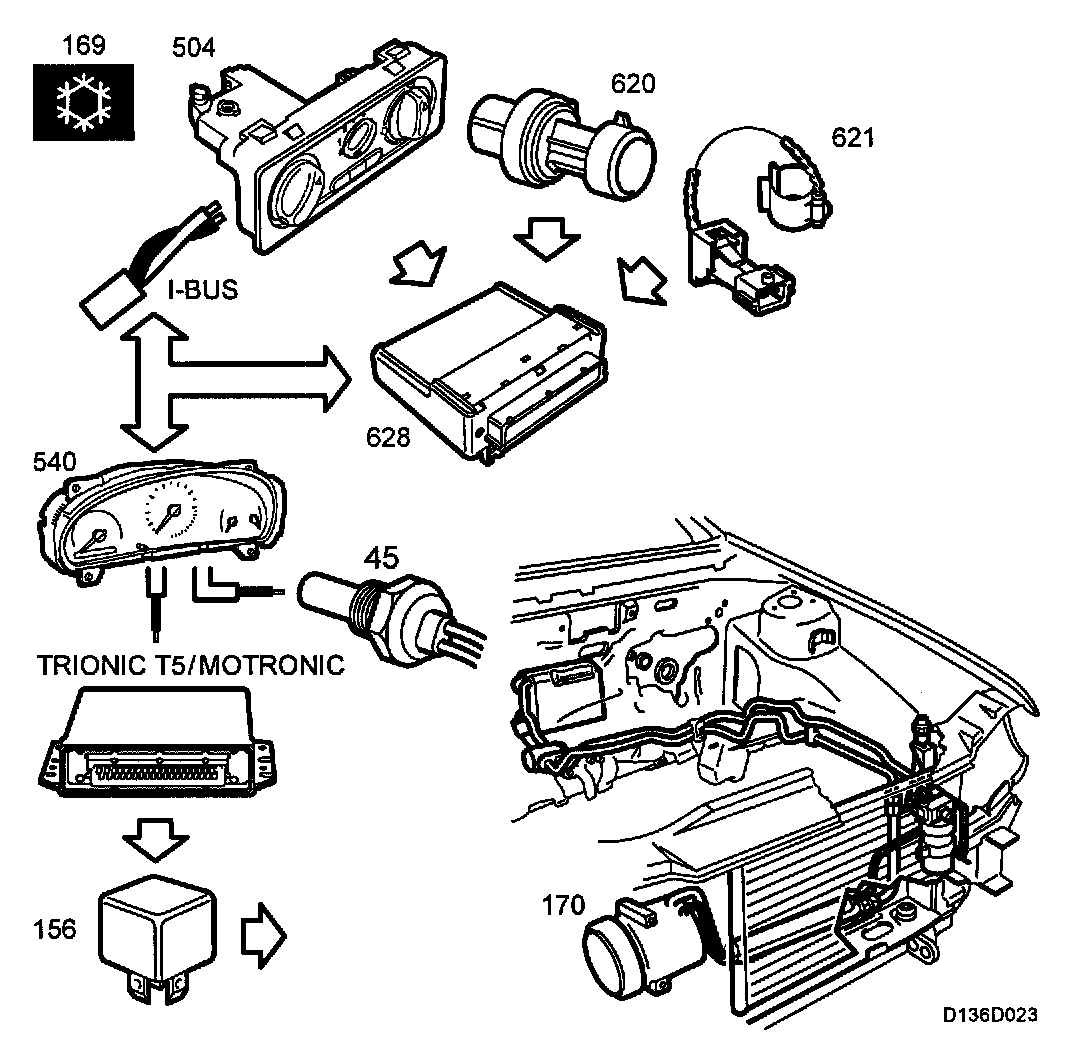

System overview, A/C function, petrol engine (Cars without ACC)


- Control module, DICE (628)
- Main instrument unit (540)
- Switch, A/C (169)
- Temperature sensor, A/C evaporator (621)
- Pressure sensor, A/C (620)
- Relay, A/C compressor (156)
- Compressor, A/C (170)
- Engine management system, petrol (430a, 505, 589a)
- Engine coolant temperature sensor (45)
- Control panel, manual climate control (504)
