Test Readings, Control Module Connections

Test Readings, Control Module Connections:

Scope
Values and directions for measuring the voltage levels in the control module are given under the relevant heading.

Points to remember
- Note the test conditions, use common sense when assessing the test results.
- The specified values are with the ignition ON unless otherwise stated.
- First check that the control module is supplied with current and is grounded
- Then check all the sensor inputs and signals from other systems.
- Finally, check the control module outputs. Remember that the test values do not say anything about whether or not the actuator is functioning
- If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which ought to be checked more thoroughly.

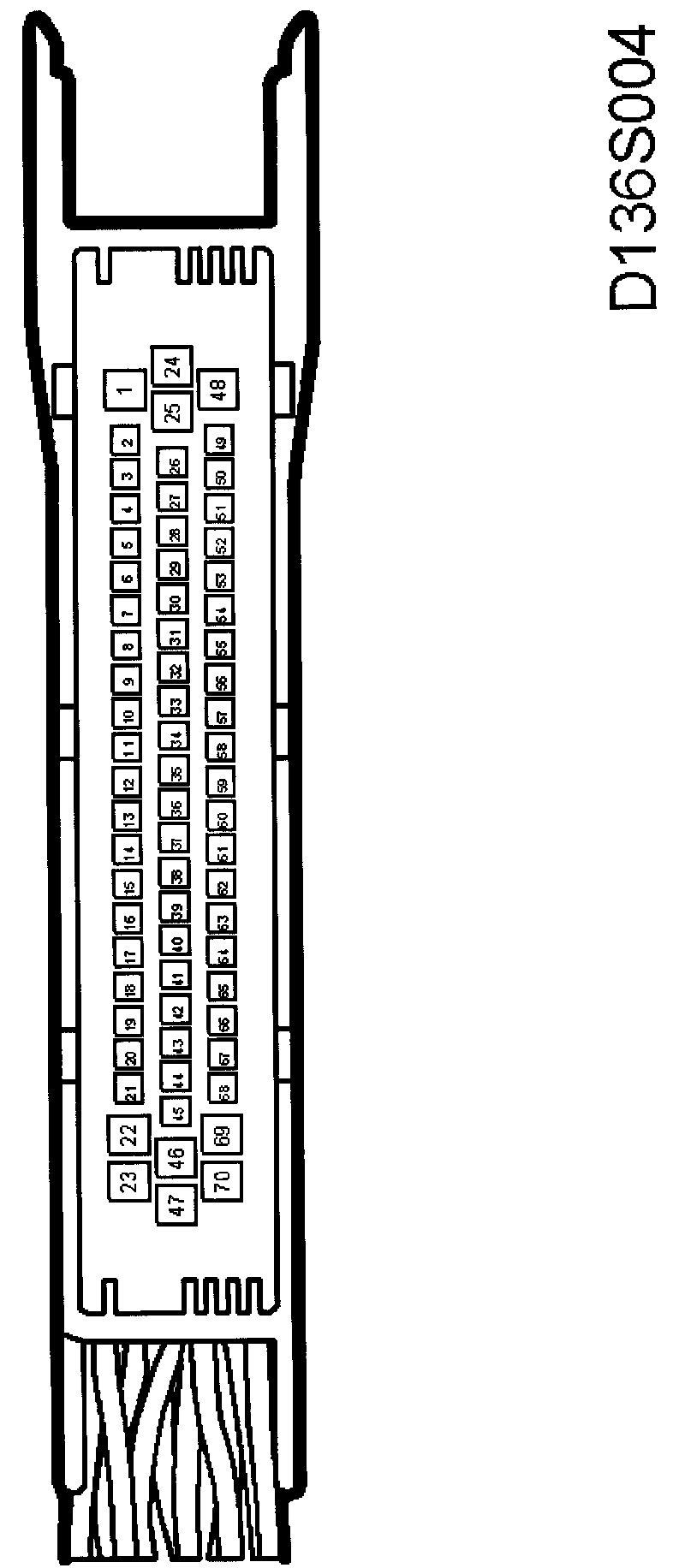

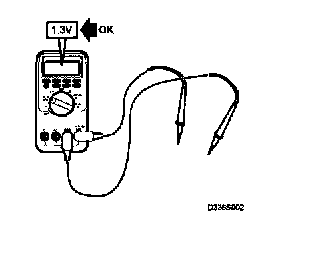

- The specified test readings refer to those obtained with a calibrated Fluke 88/97.

- Test values % (+) and ms (+) indicate the pulse ratio and pulse rate of the signal respectively. A scan tool for measuring pulse ratio and pulse width respectively must be used. The (+) indicates positive trigger pulse, TRIG+.












>=greater than; <=less than; ~=alternating current (LP:LOGIC PROBE P = select pulse; p = visible pulses)

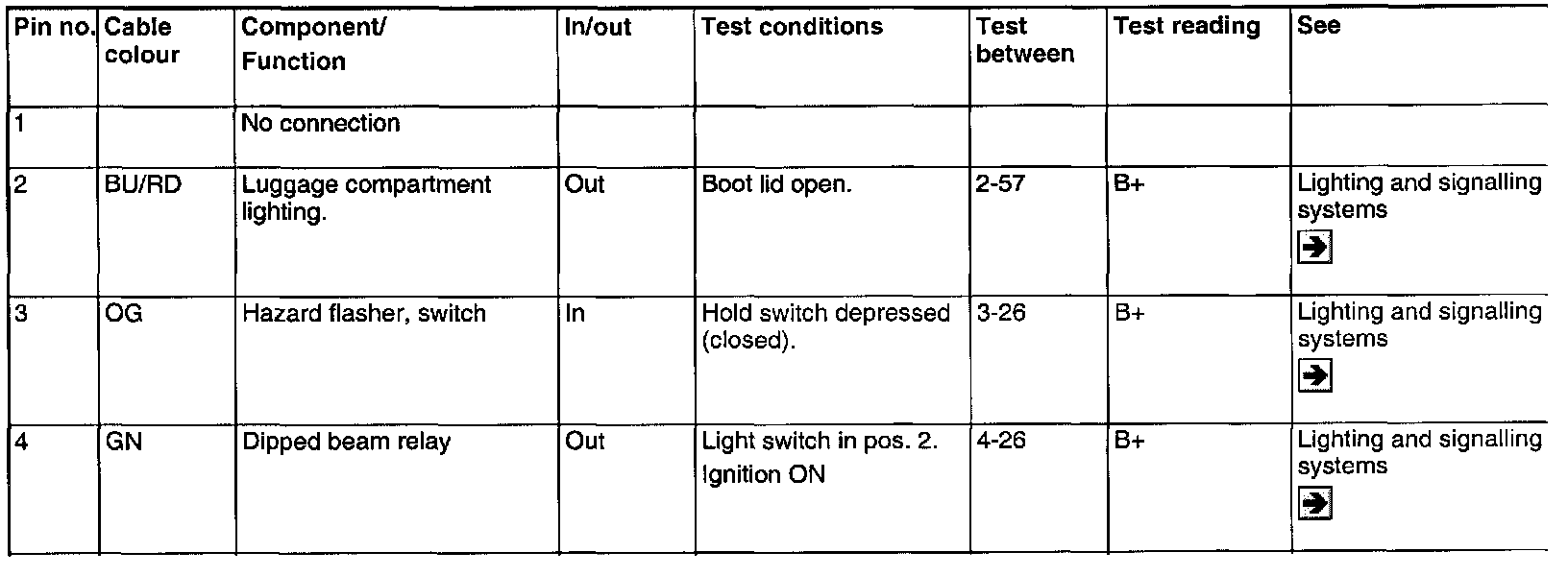

Pin No 1 - 4:

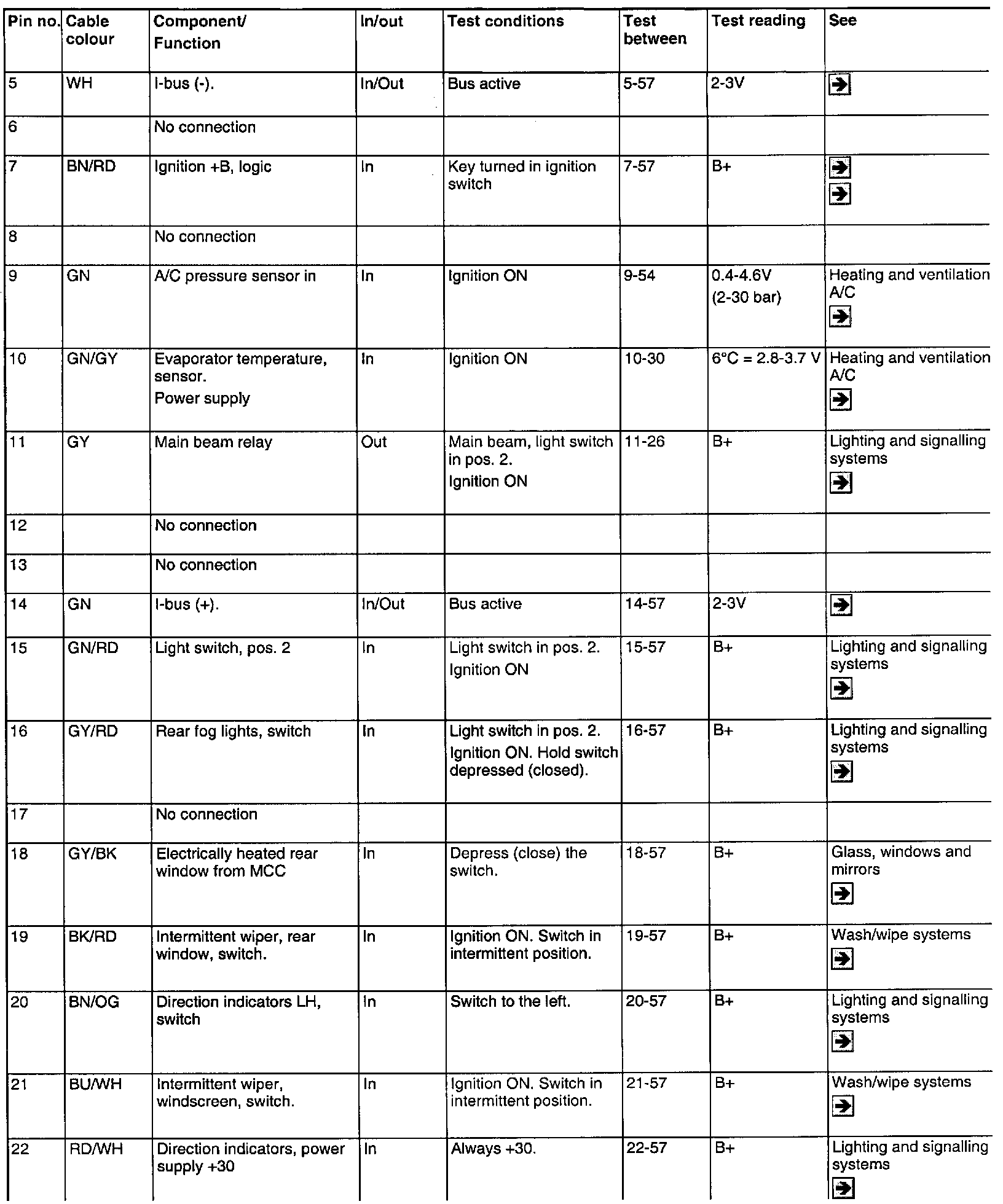

Pin No 5 - 22:

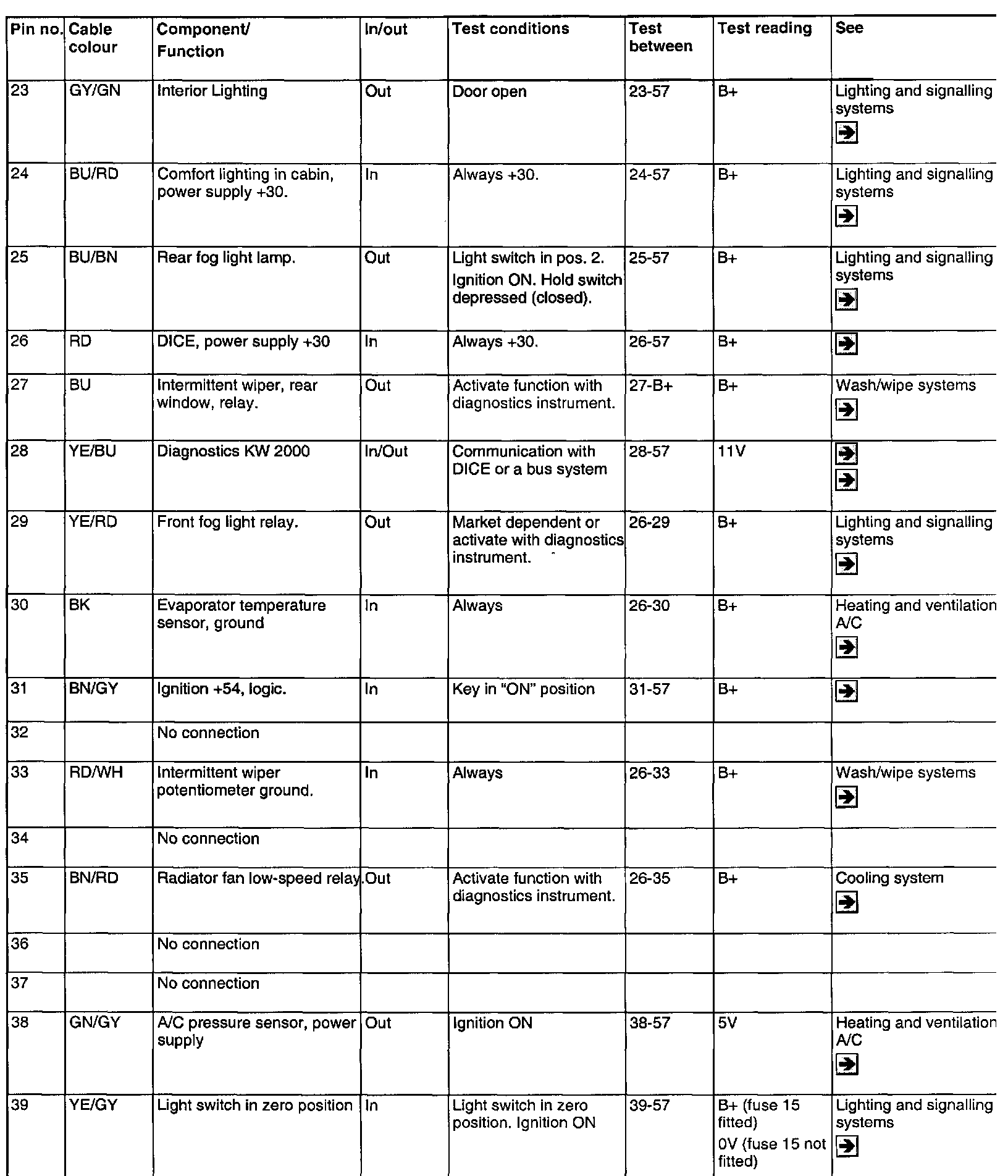

Pin No 23 - 39:

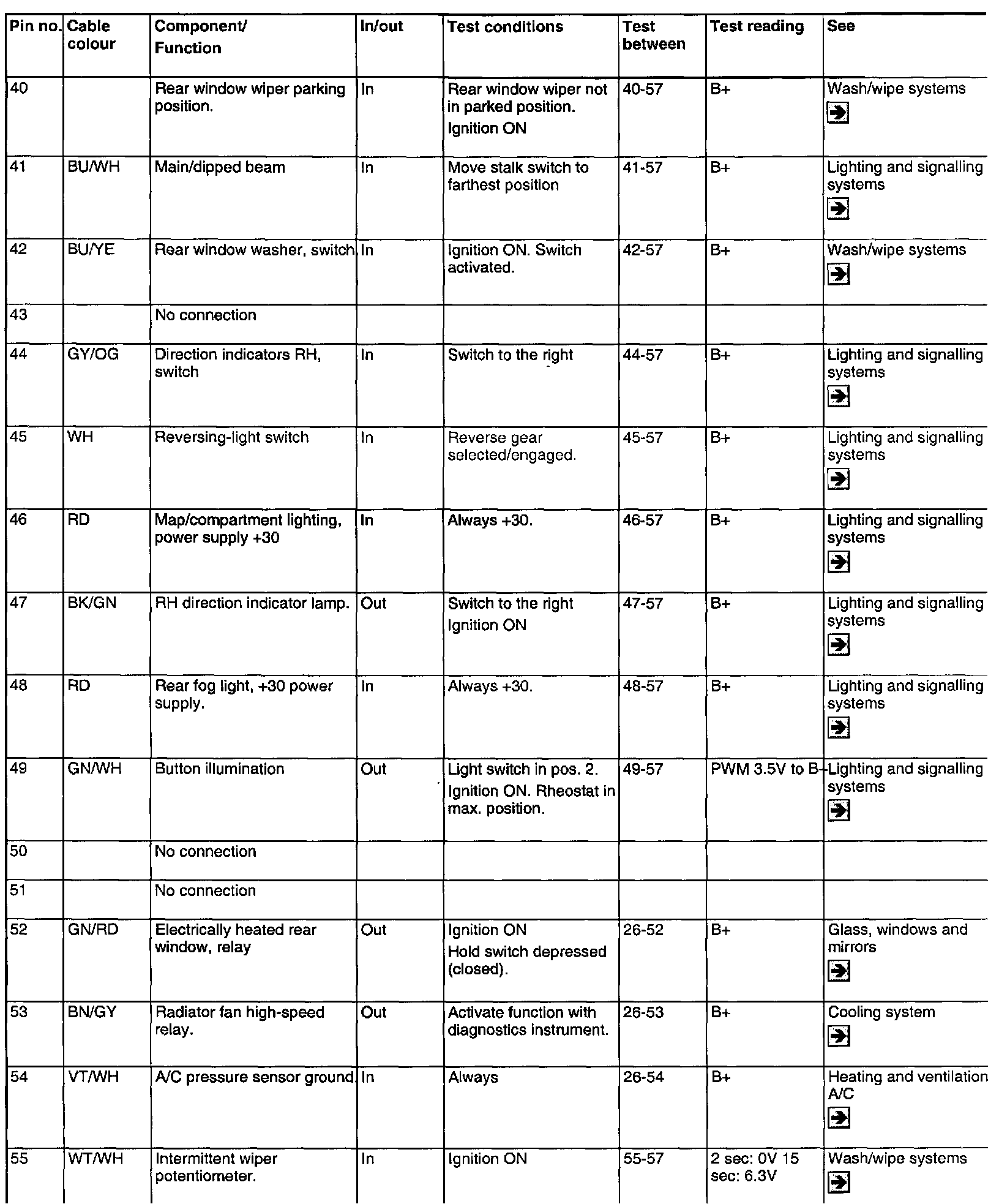

Pin No 40 - 55:
