Pushbutton and Instrument Lighting

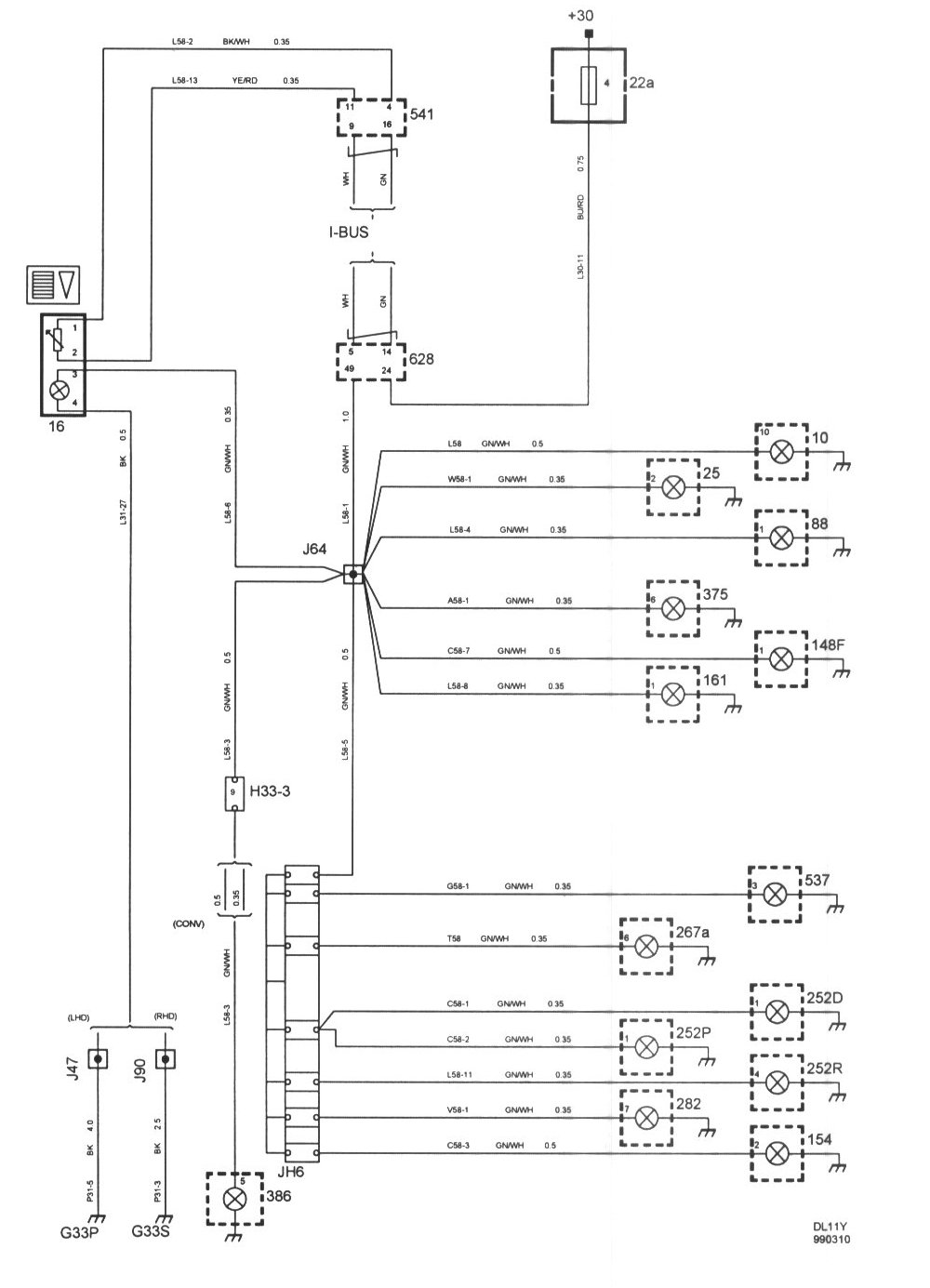

Pushbutton And Instrument Lighting:

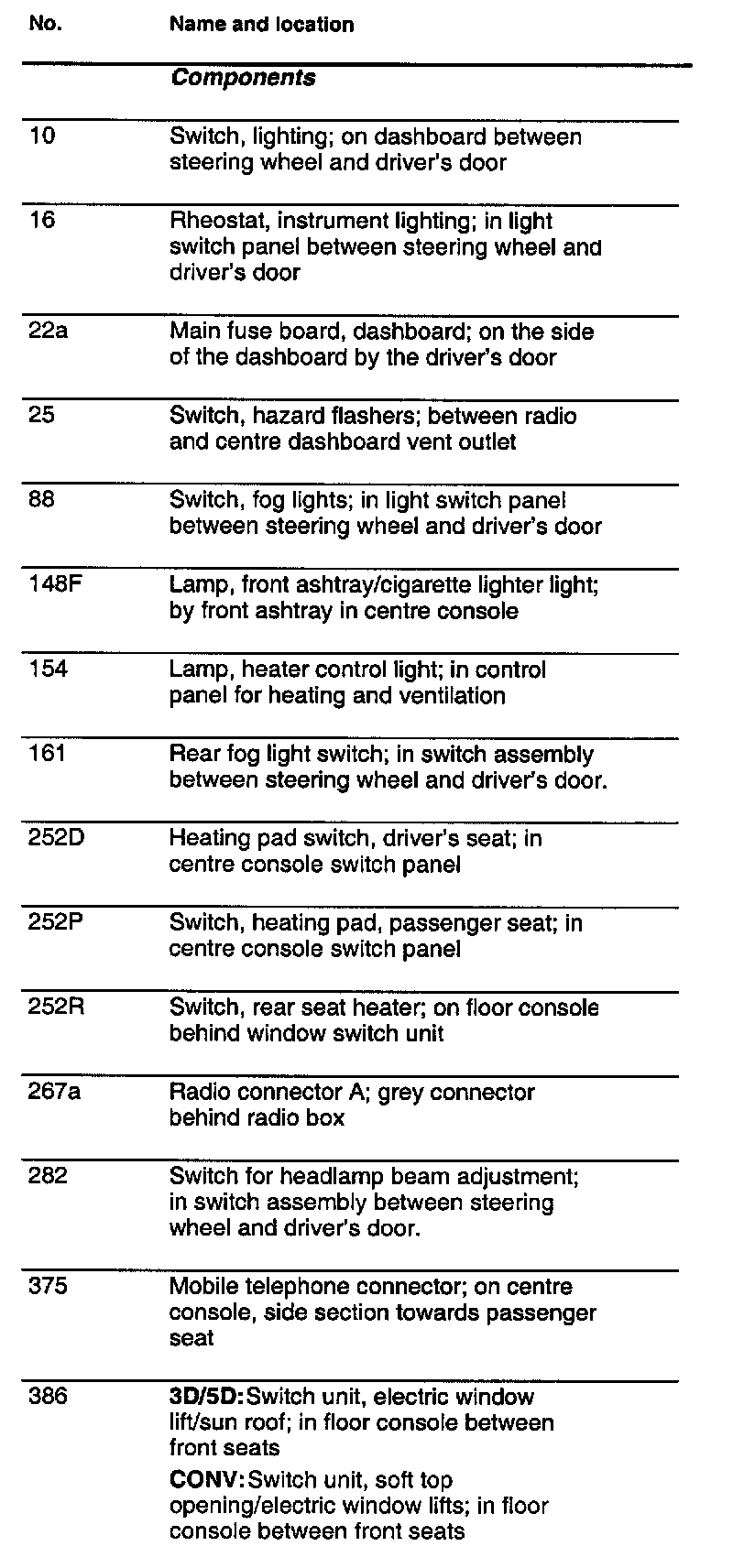

Component List, Part 1:

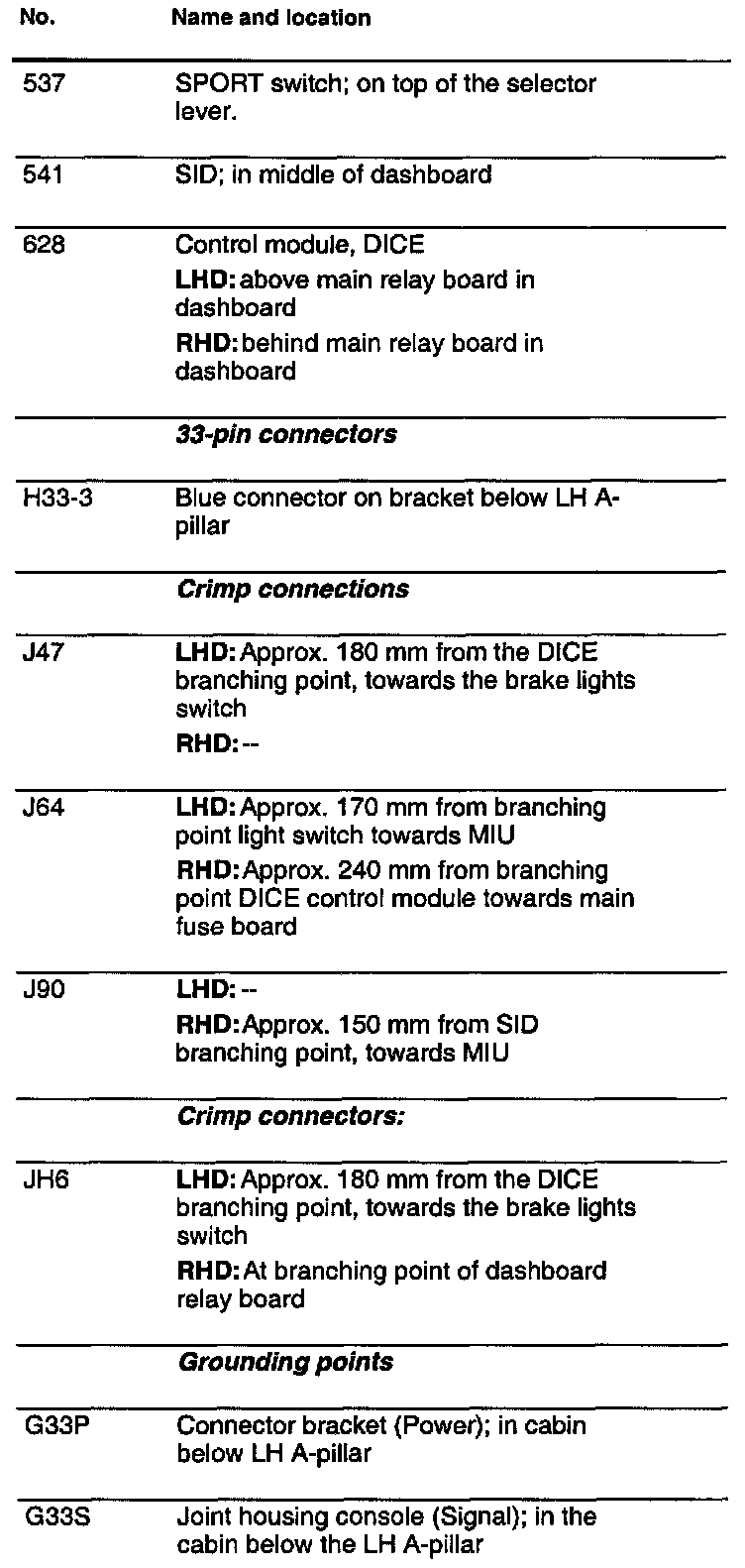

Component List, Part 2:
