Home >> Saab >> 2000 >> 9-3 Hatchback (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Backup Lamp >> Reversing Lights, Automatic Transmission

Reversing Lights, Automatic Transmission

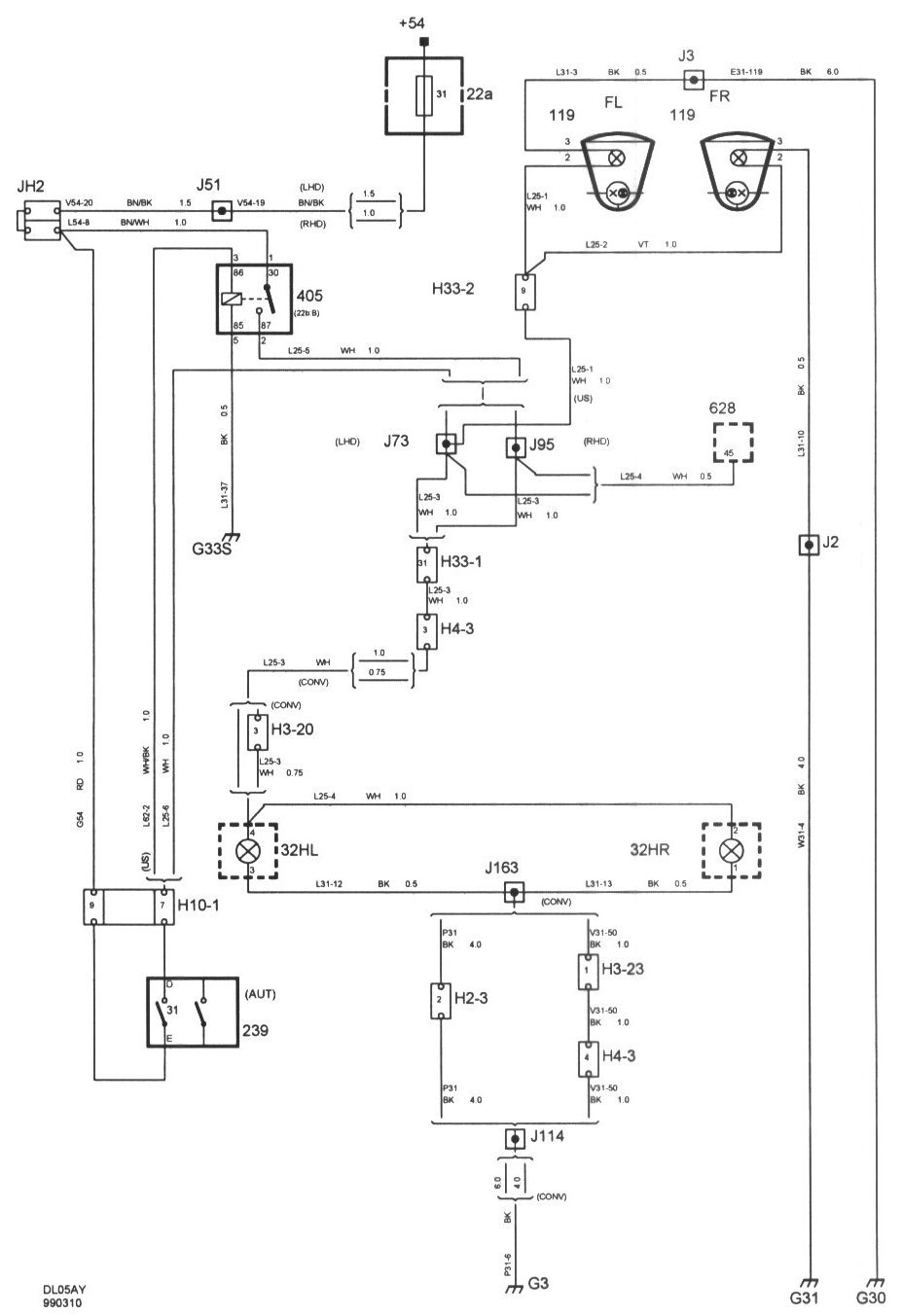

Reversing Lights, Automatic Transmission:

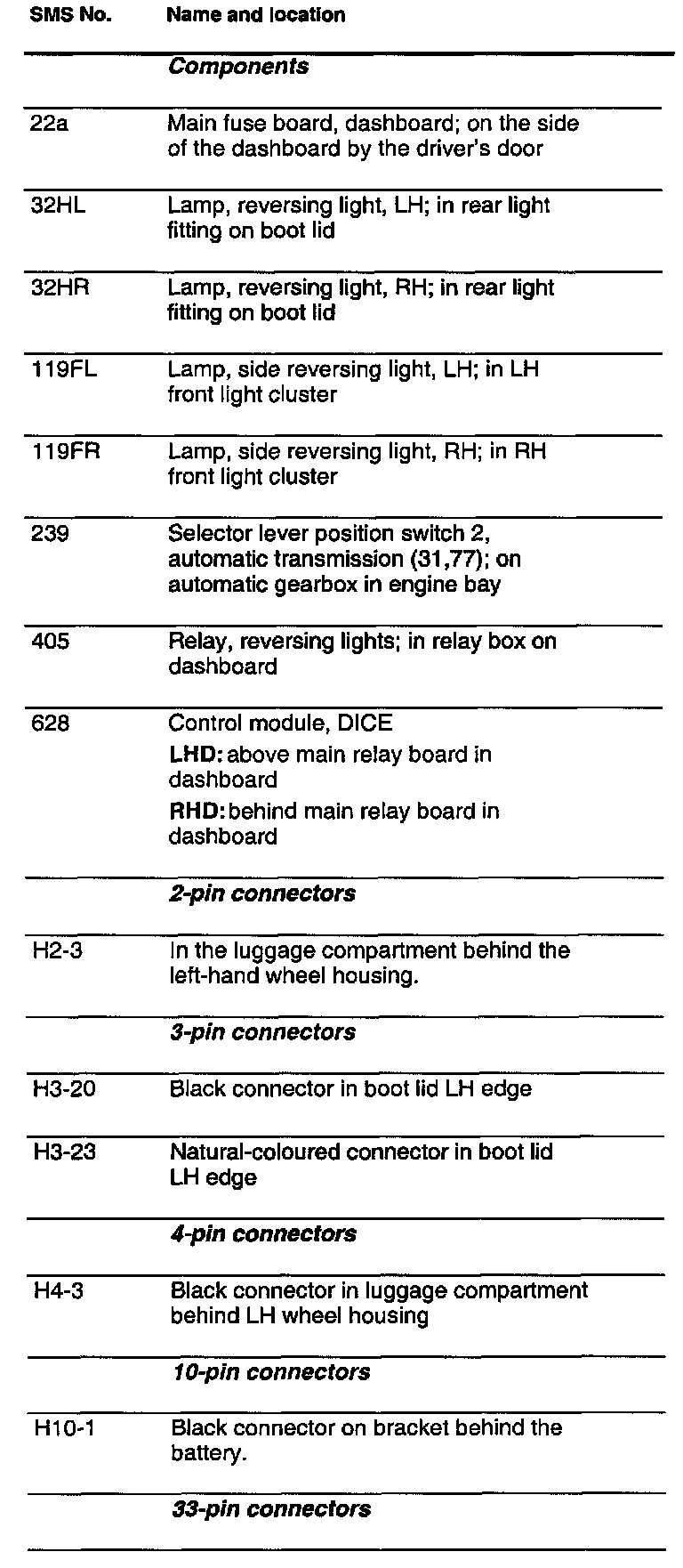

Component List, Part 1:

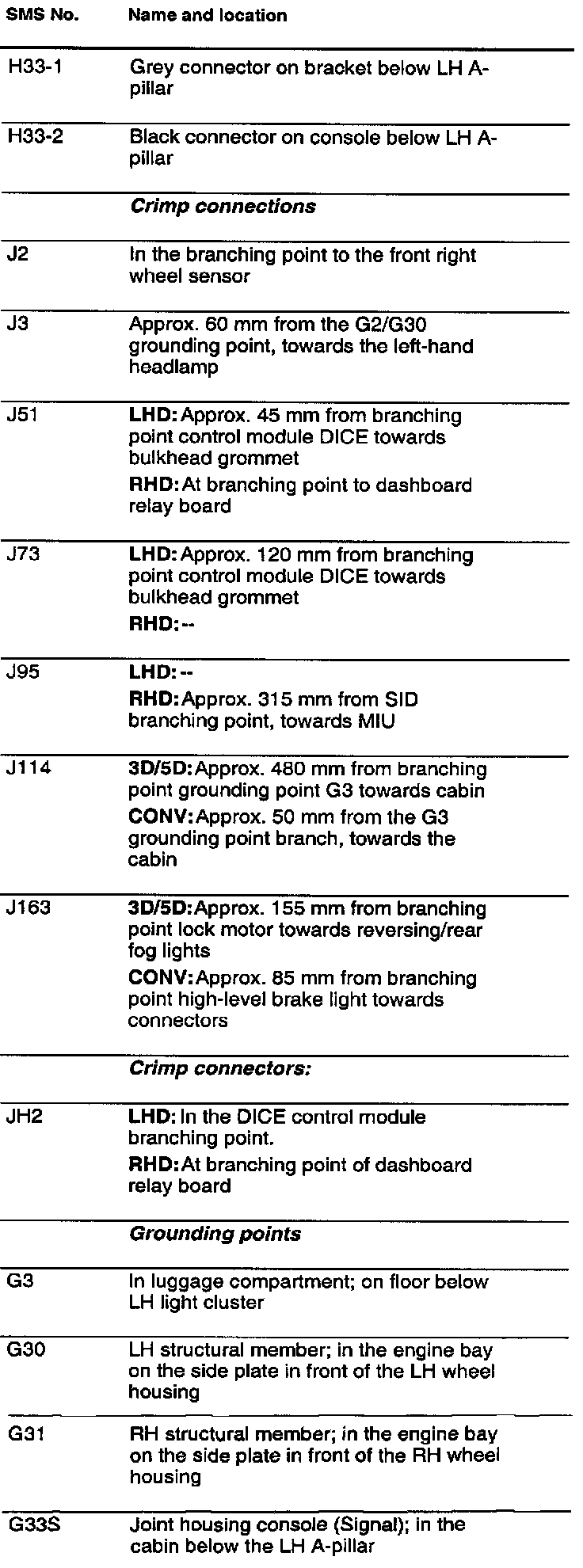

Component List, Part 2:
