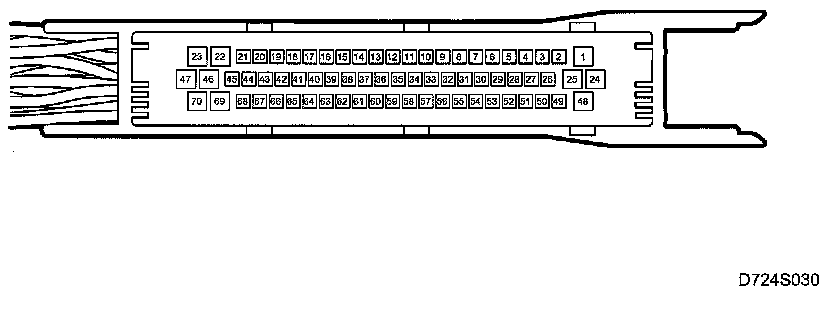

Engine Control Module

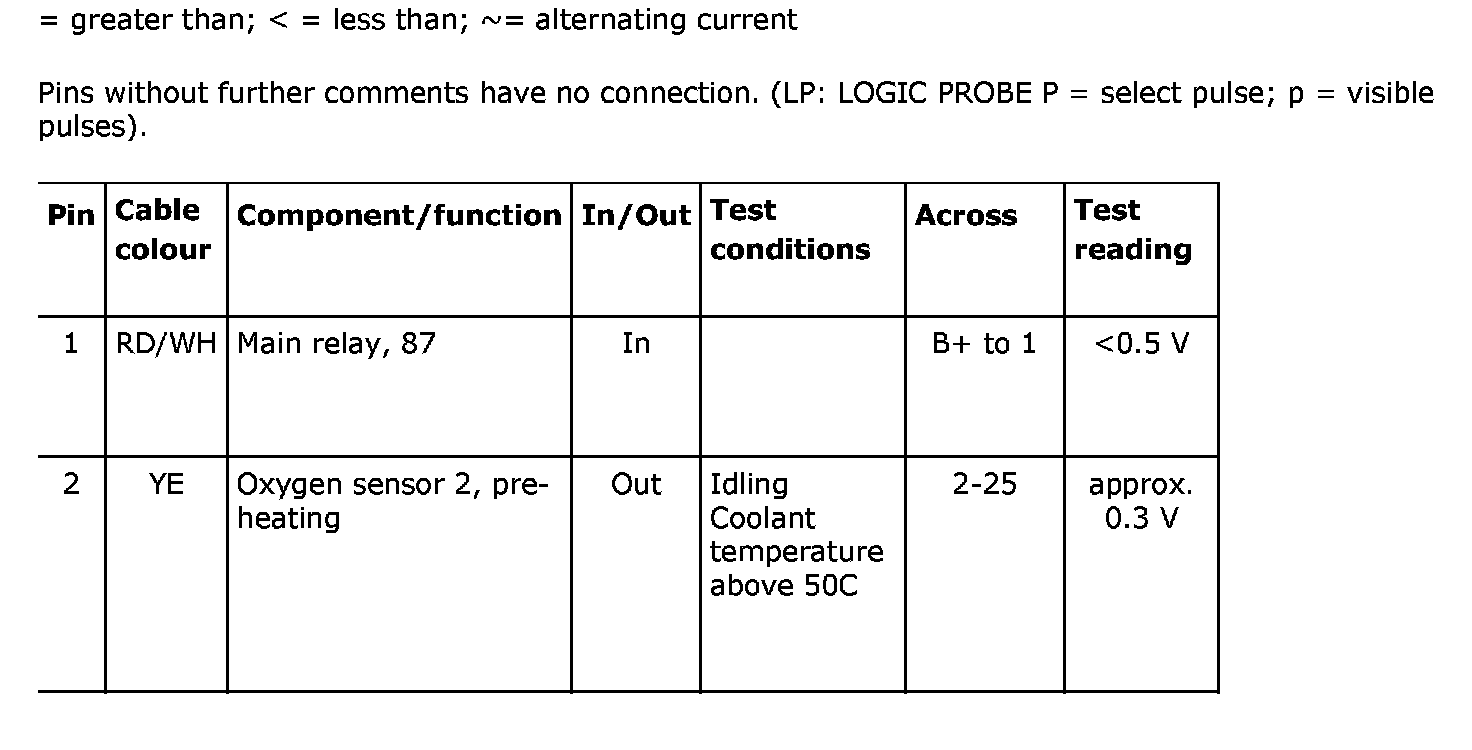

Pin No. 1-2:

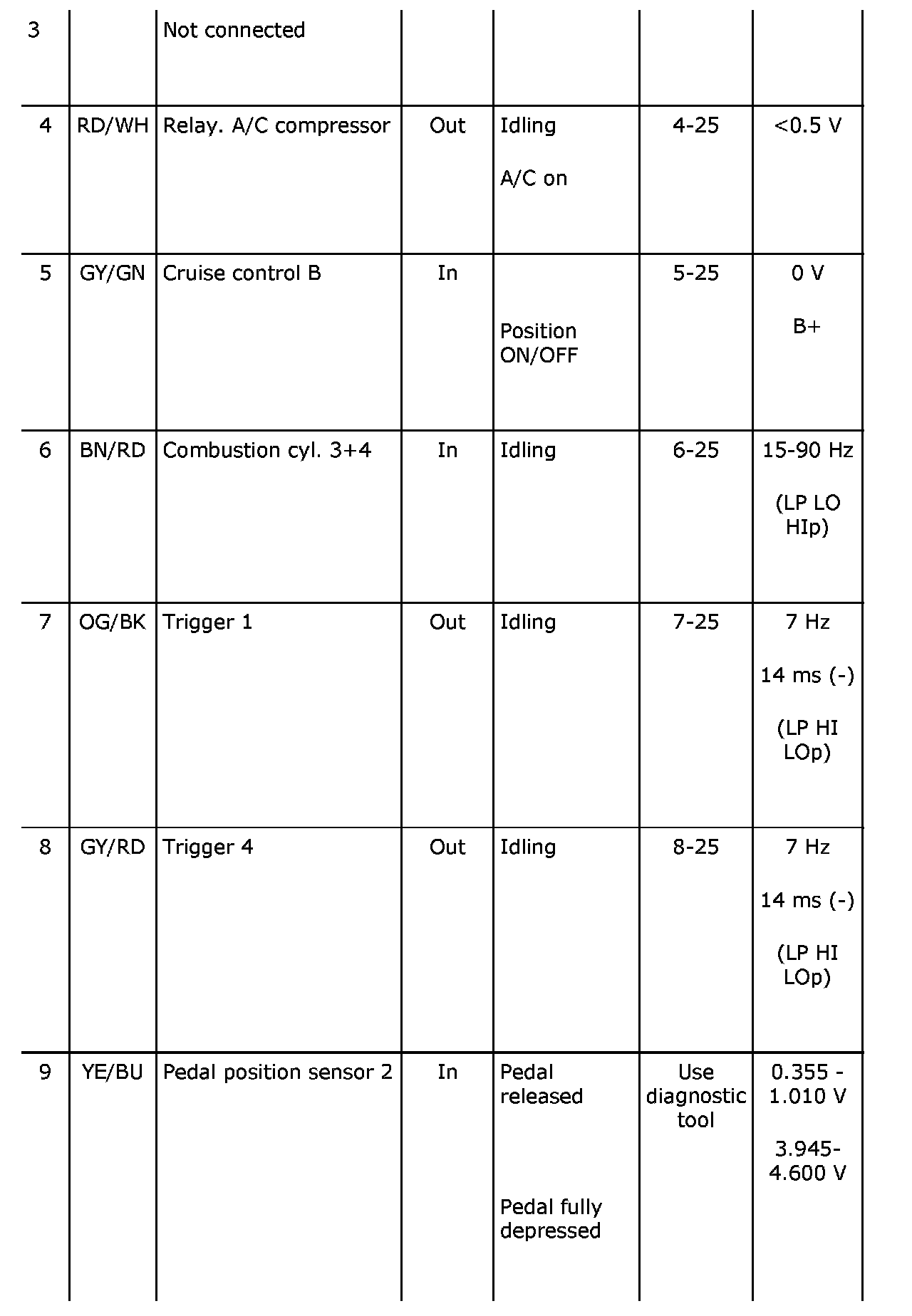

Pin No. 3-9:

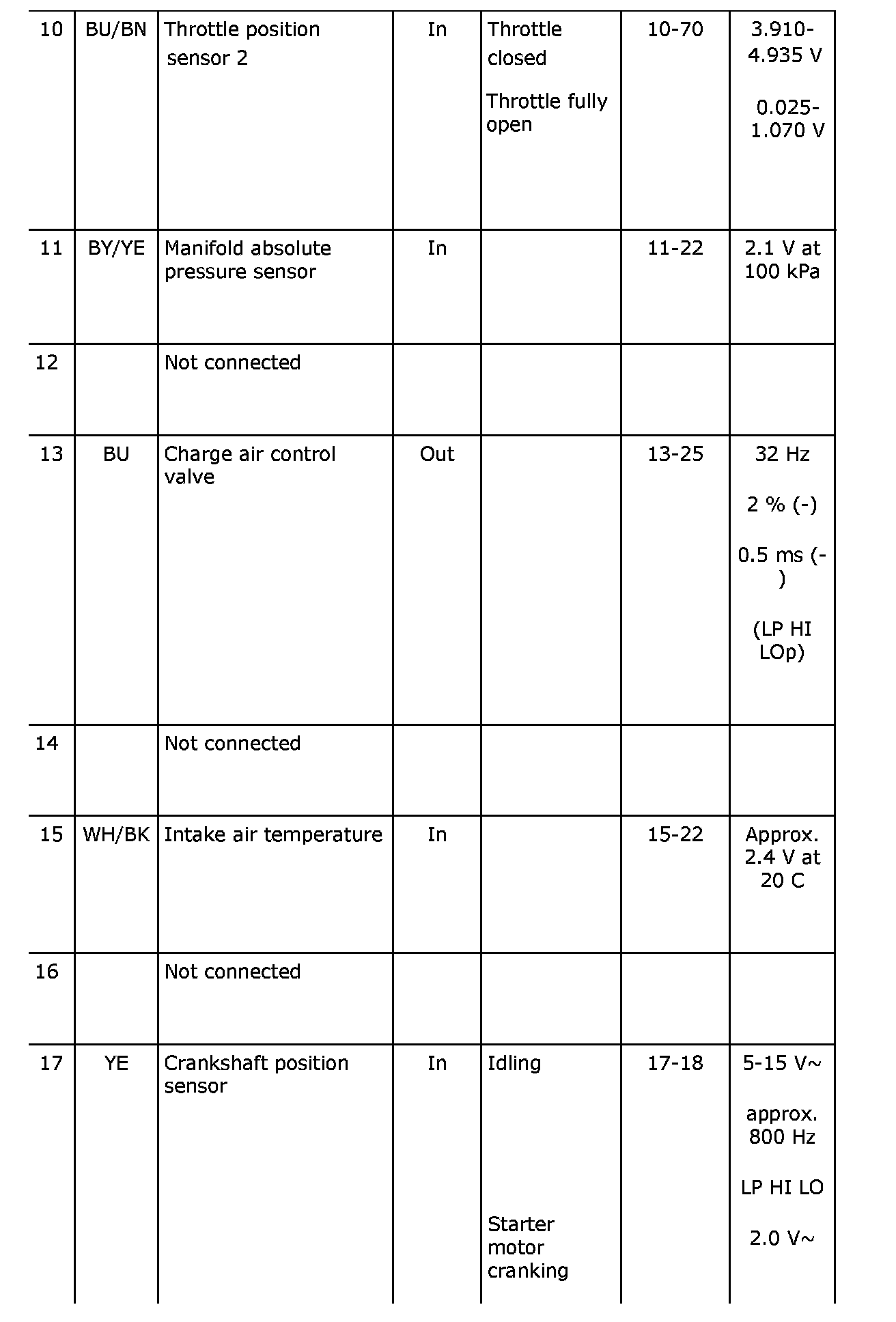

Pin No. 10-17:

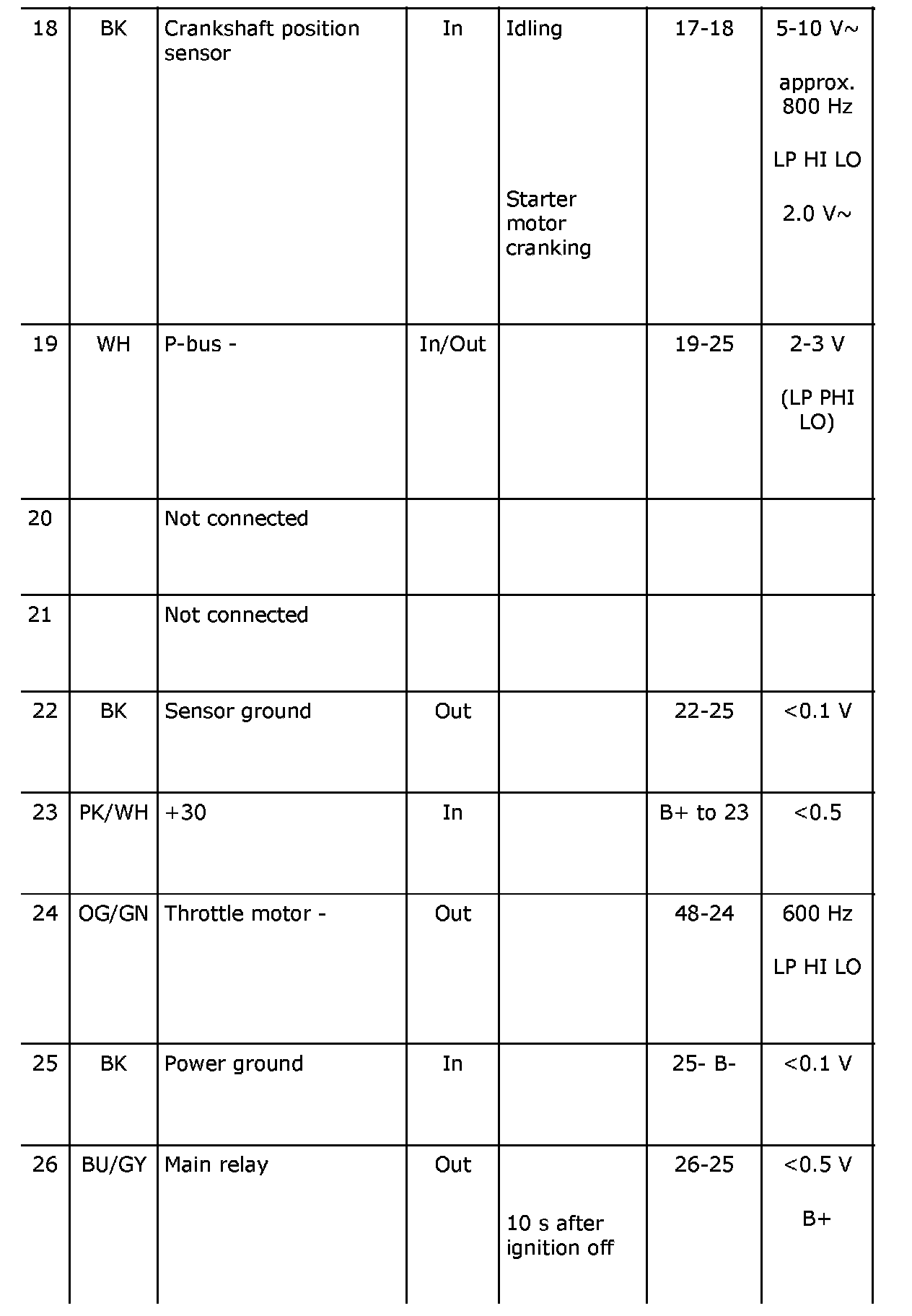

Pin No. 18-26:

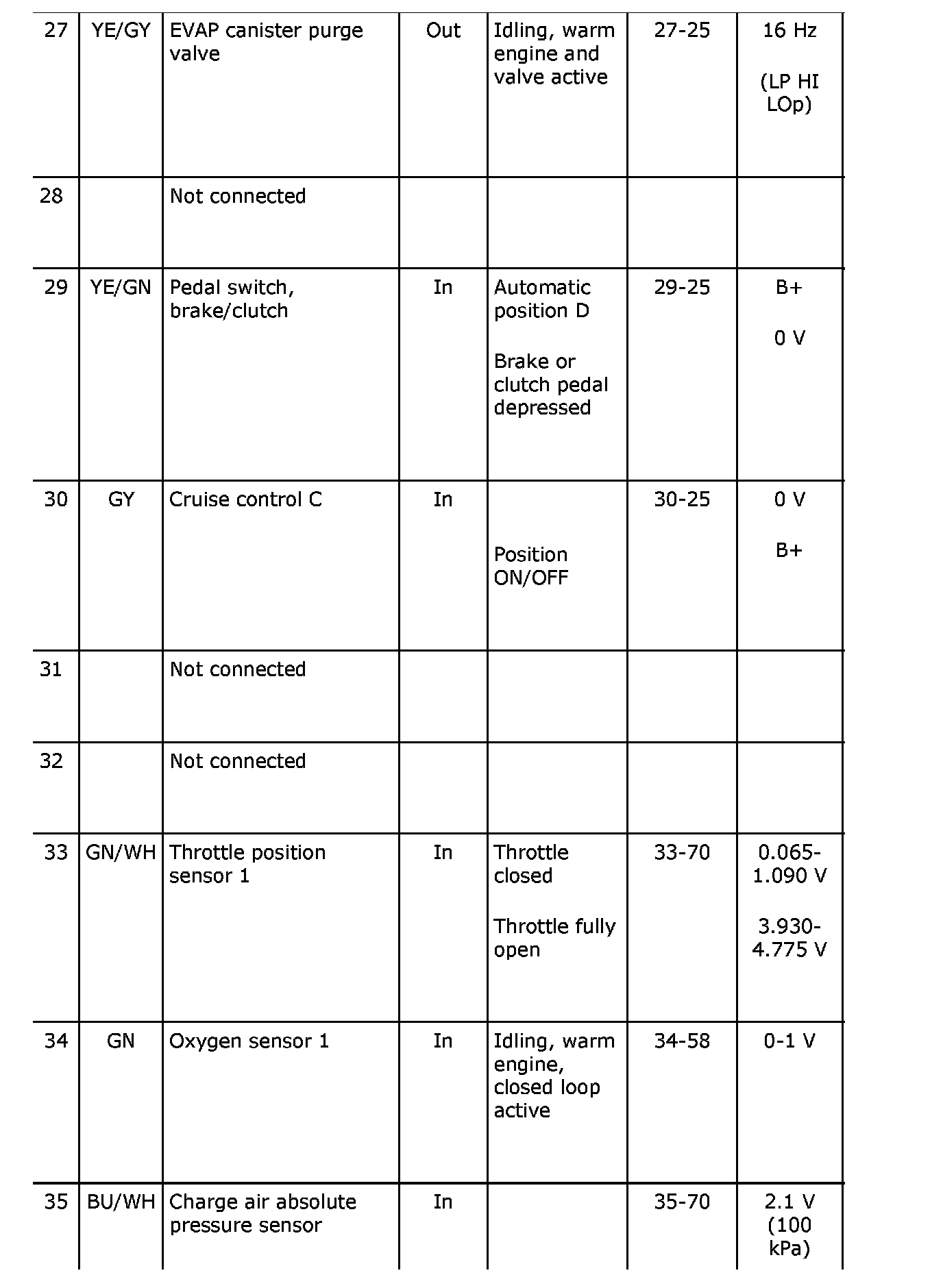

Pin No. 27-35:
Pin No. 36-45:

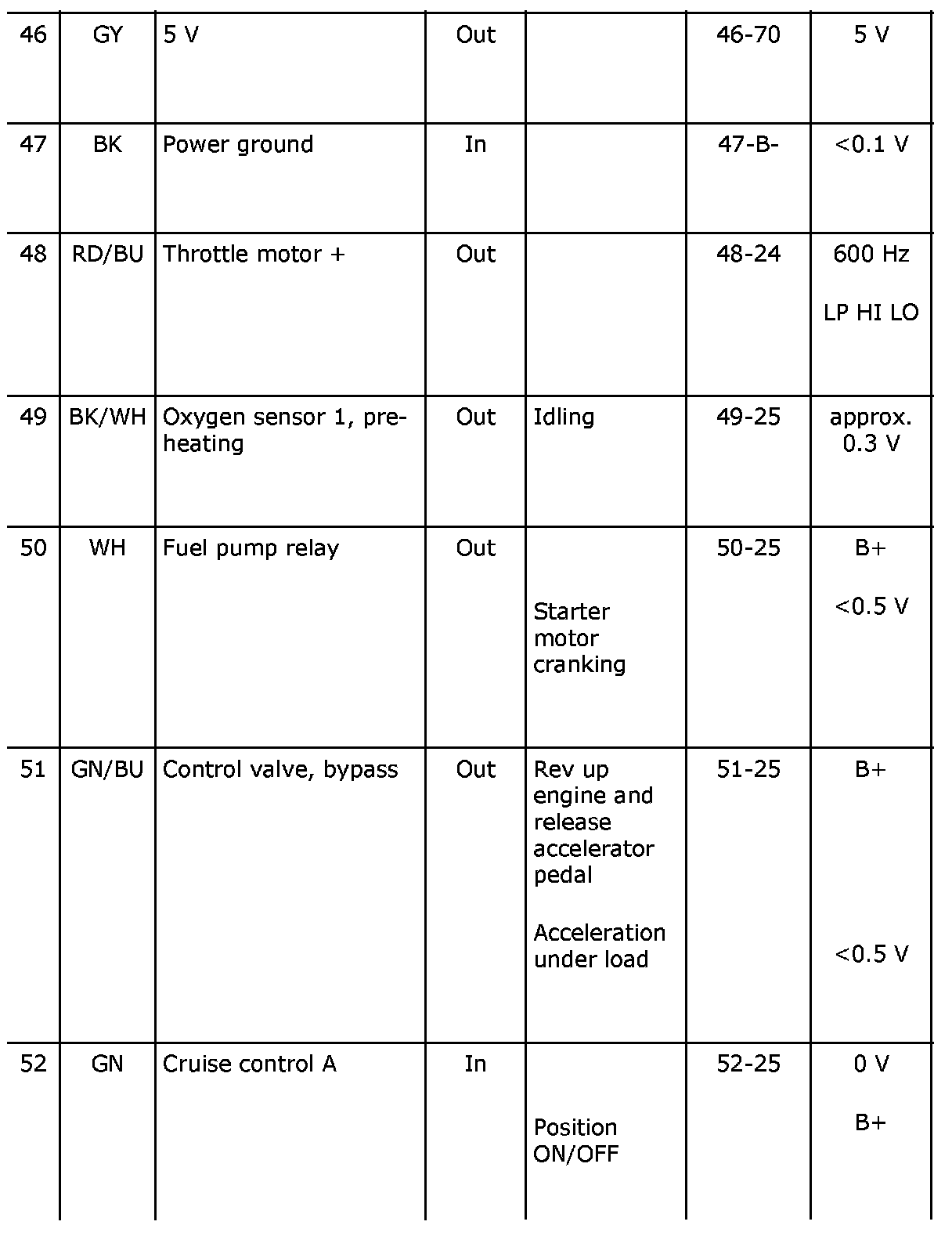

Pin No. 46-52:

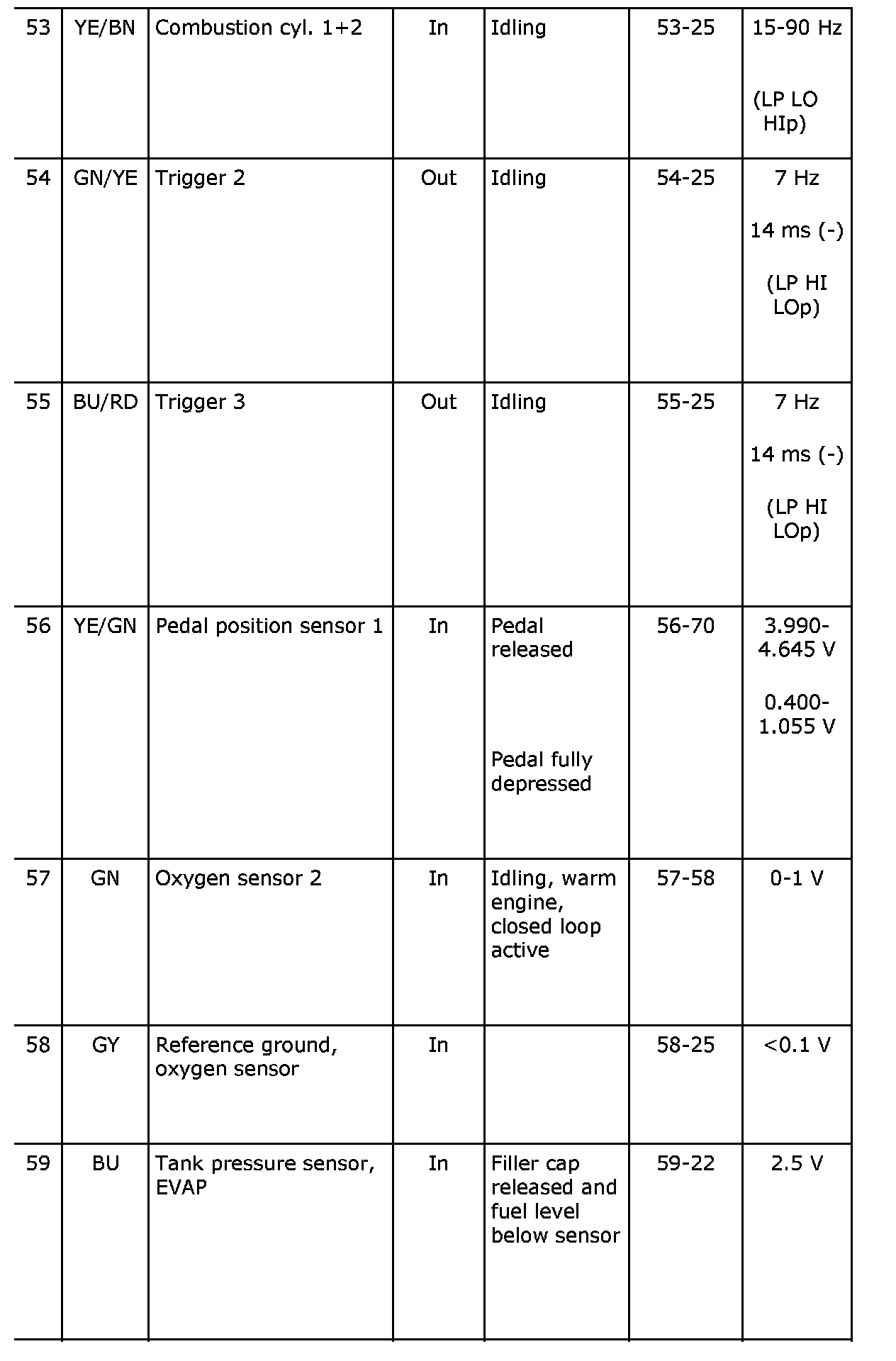

Pin No. 53-59:

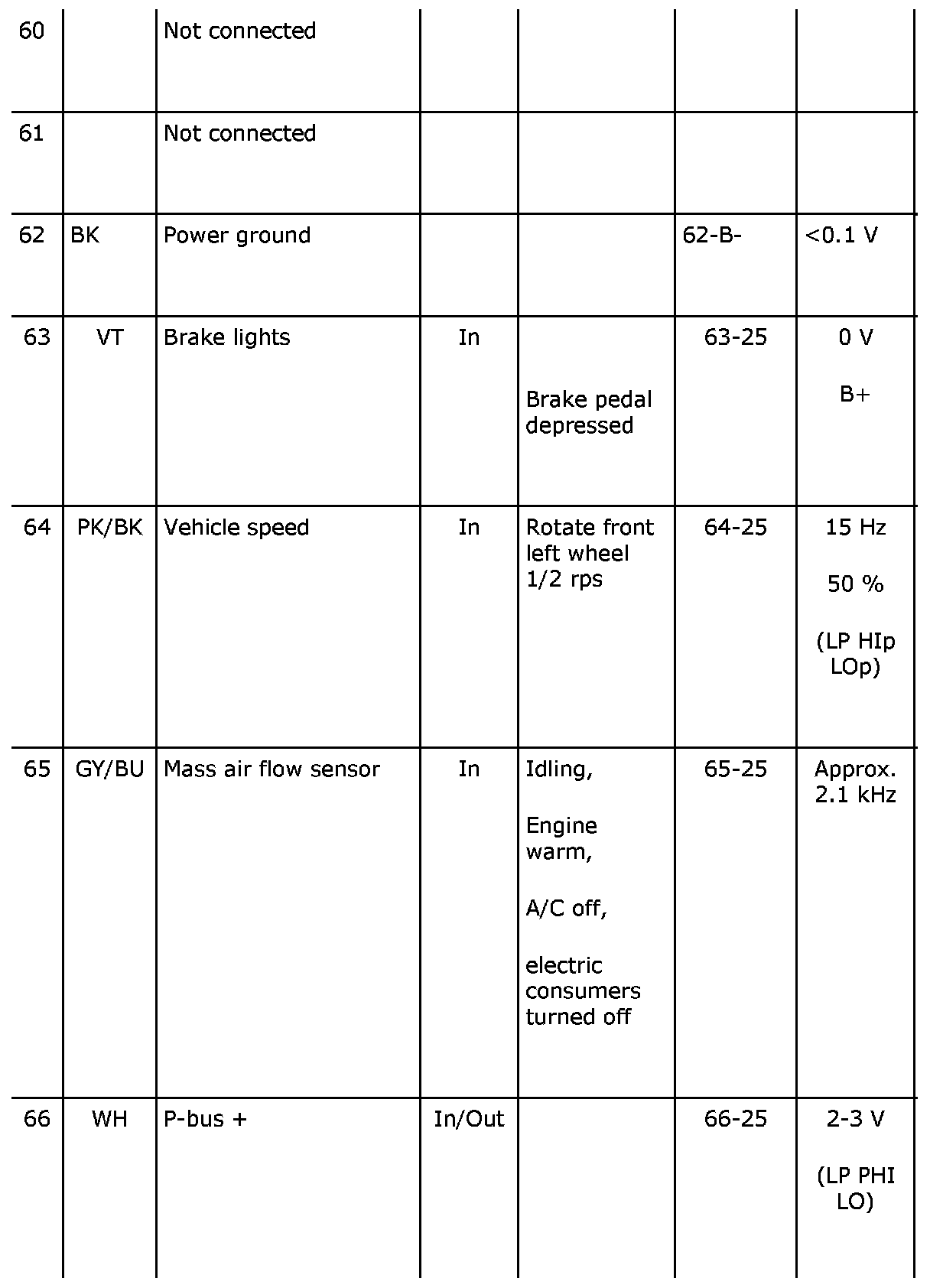

Pin No. 60-66:
Pin No. 67-70:
