FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2000
>>
9-3 Hatchback (9400) L4-2.0L Turbo (B205)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Parking Brake System
>>
Description and Operation
>>
Technical Data
Technical Data

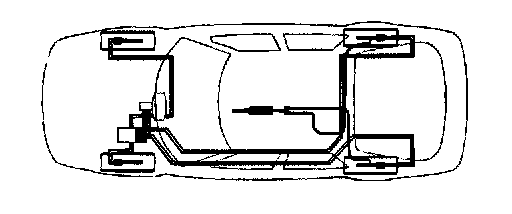

Brake system

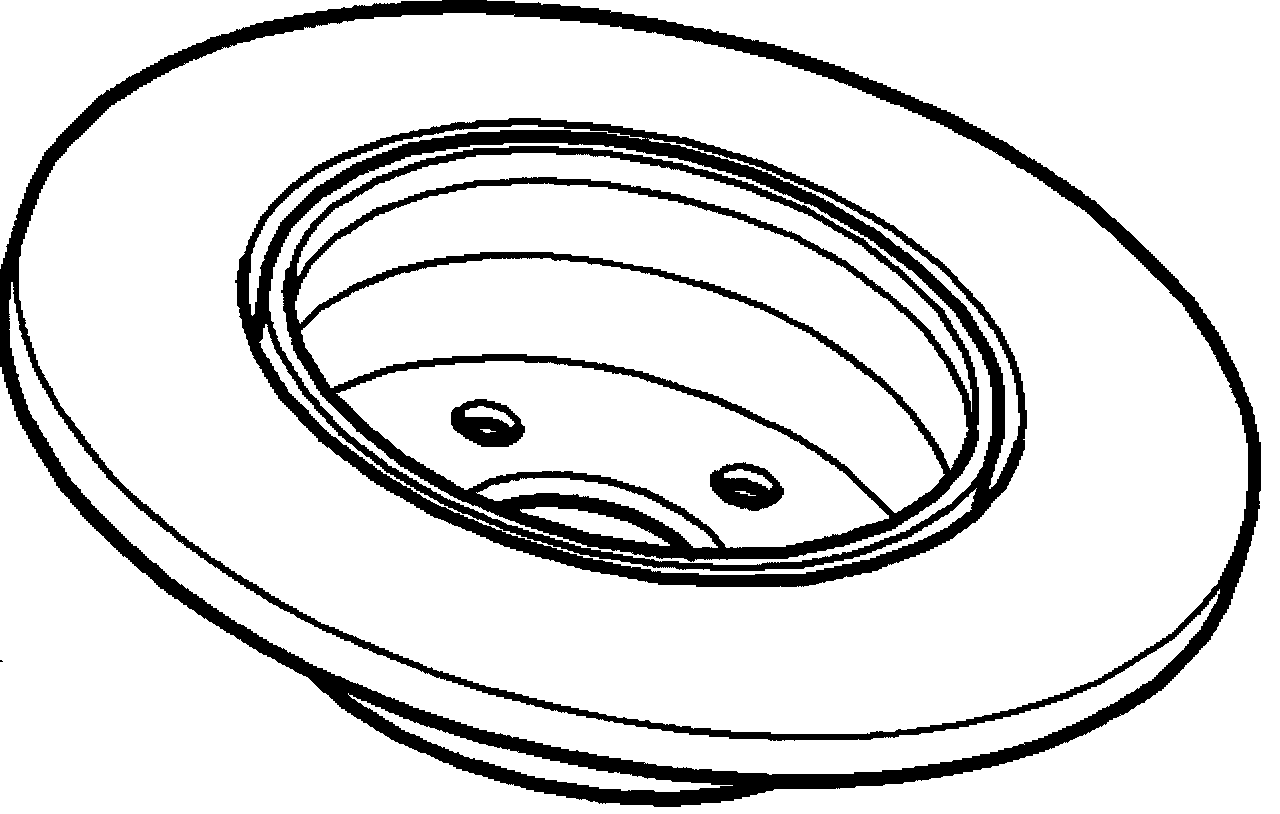

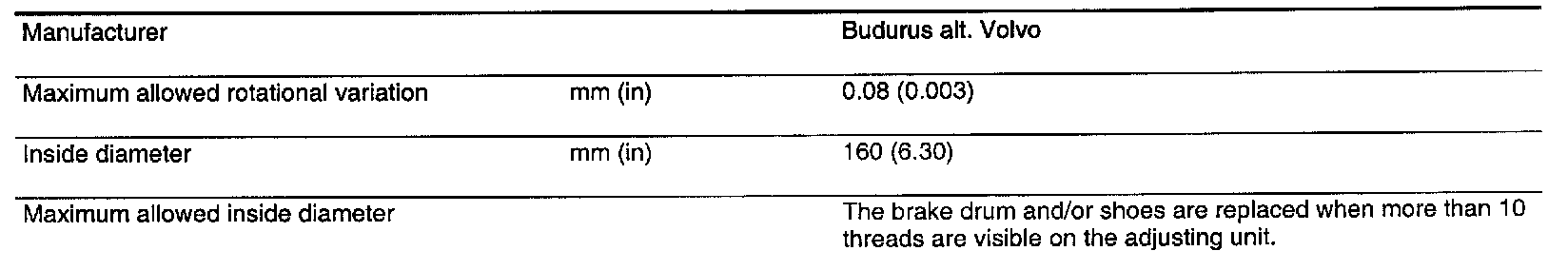

Brake drum
, parking brake rear wheel

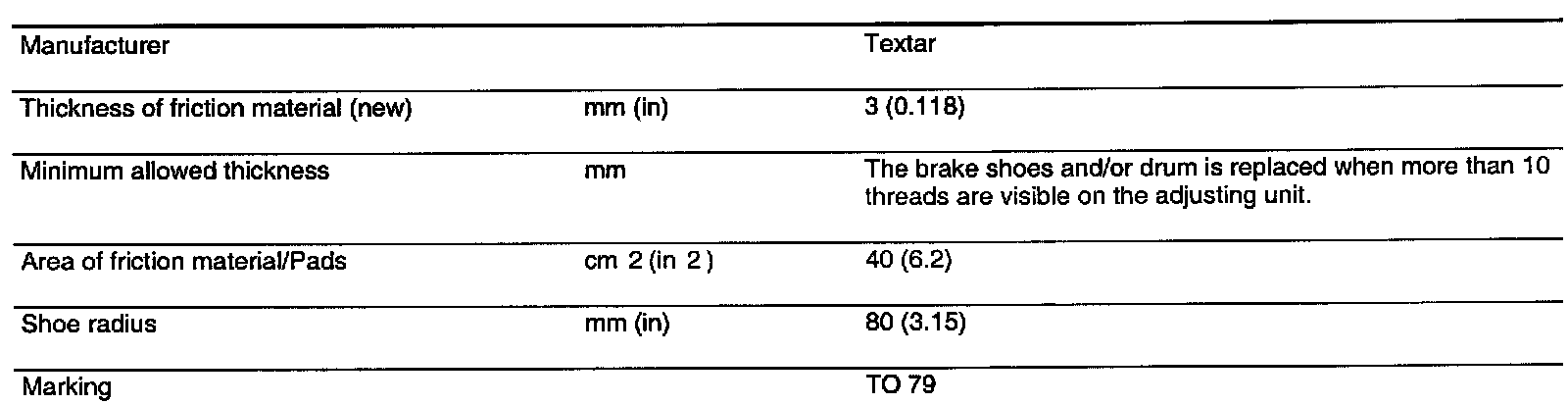

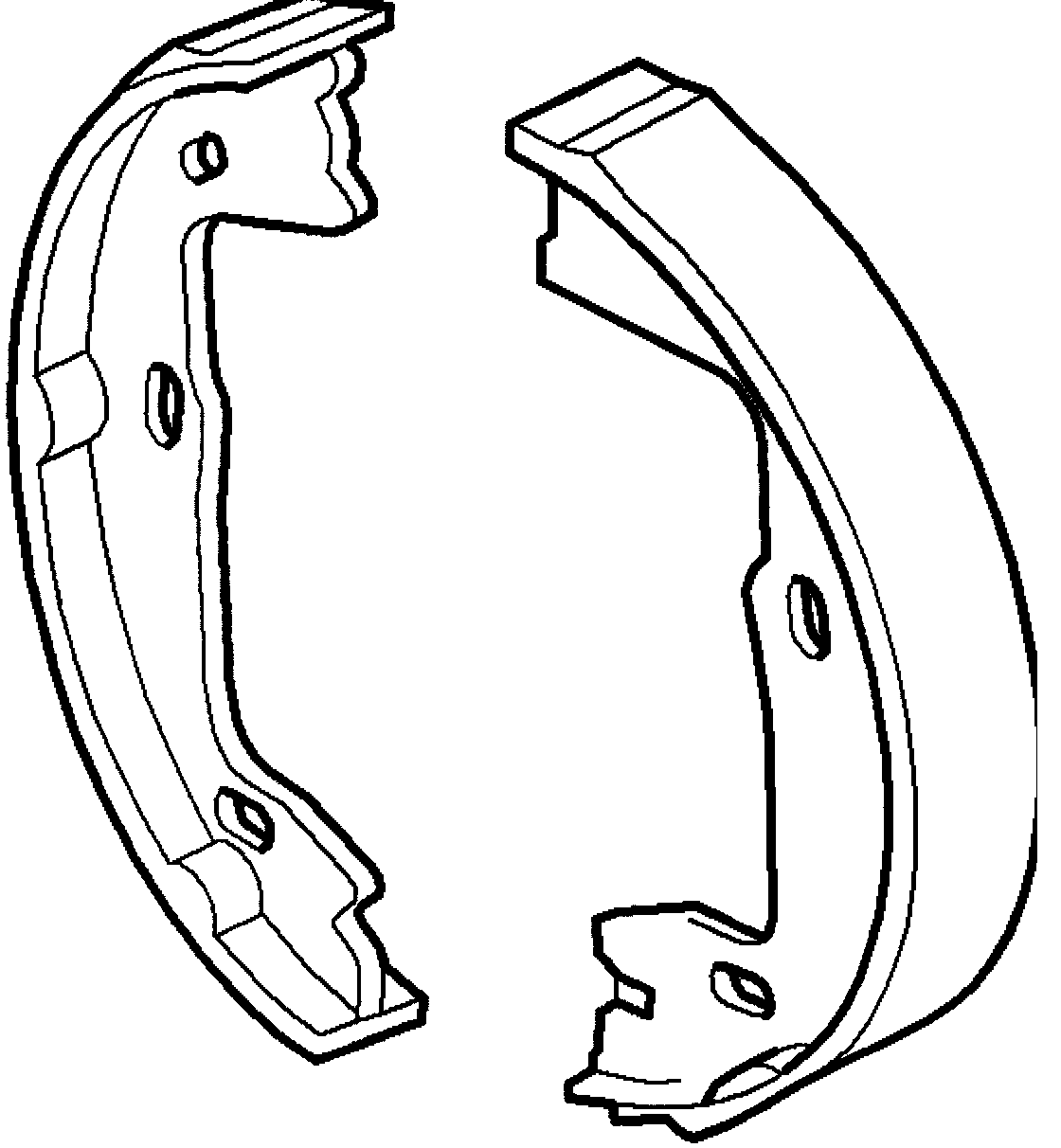

Brake shoes
, handbrake
