Disc Brake System: Description and Operation

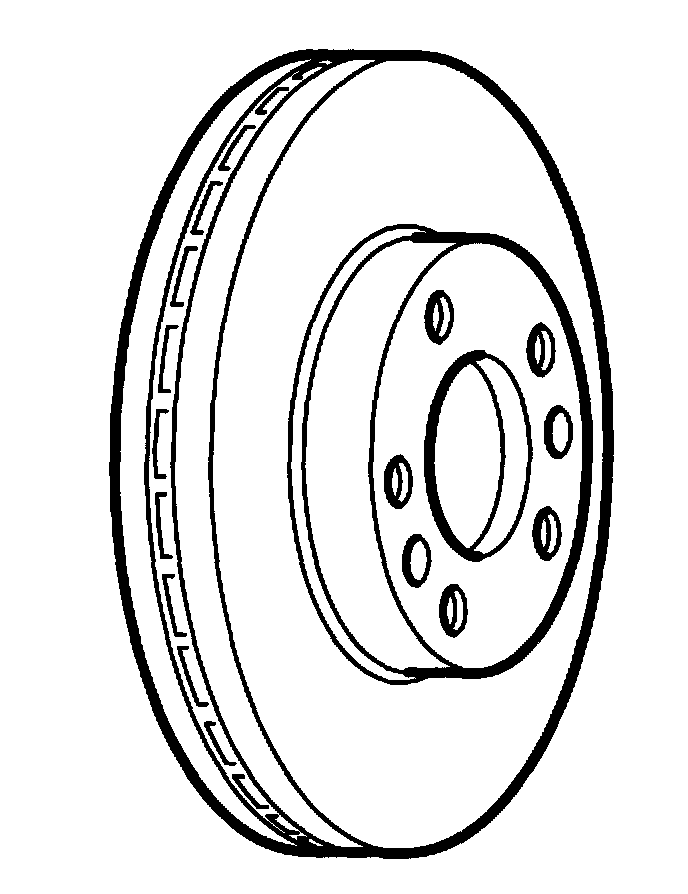

Brake disc, front wheel

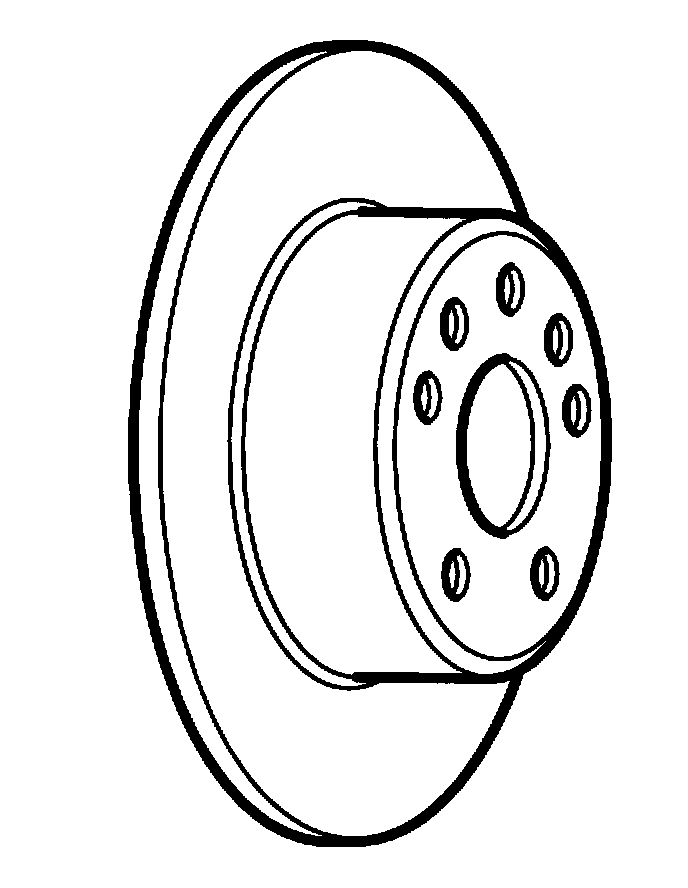

Brake disc, rear wheel





Brake pads, front wheel





Brake pads, rear wheel

'():

Tightening torque, Viggen





Tightening torque, others

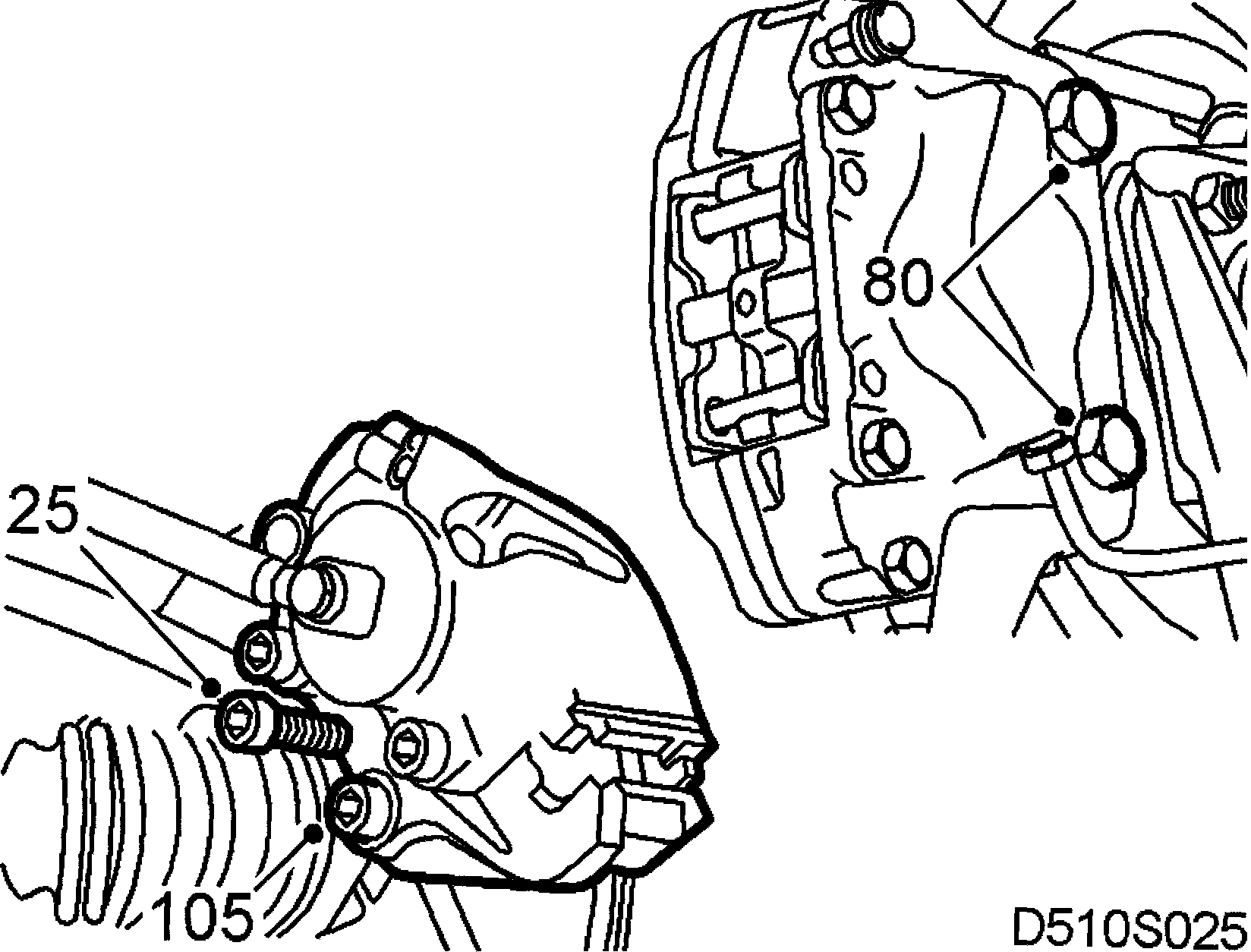

Retaining bolts, front brake caliper 105 Nm (77 ft. lbs.)
Threadlock Loctite 242 (74 96 268)
Retaining bolts, rear brake caliper 80 Nm (59 ft. lbs.)
Threadlock Loctite 242 (74 96 268)

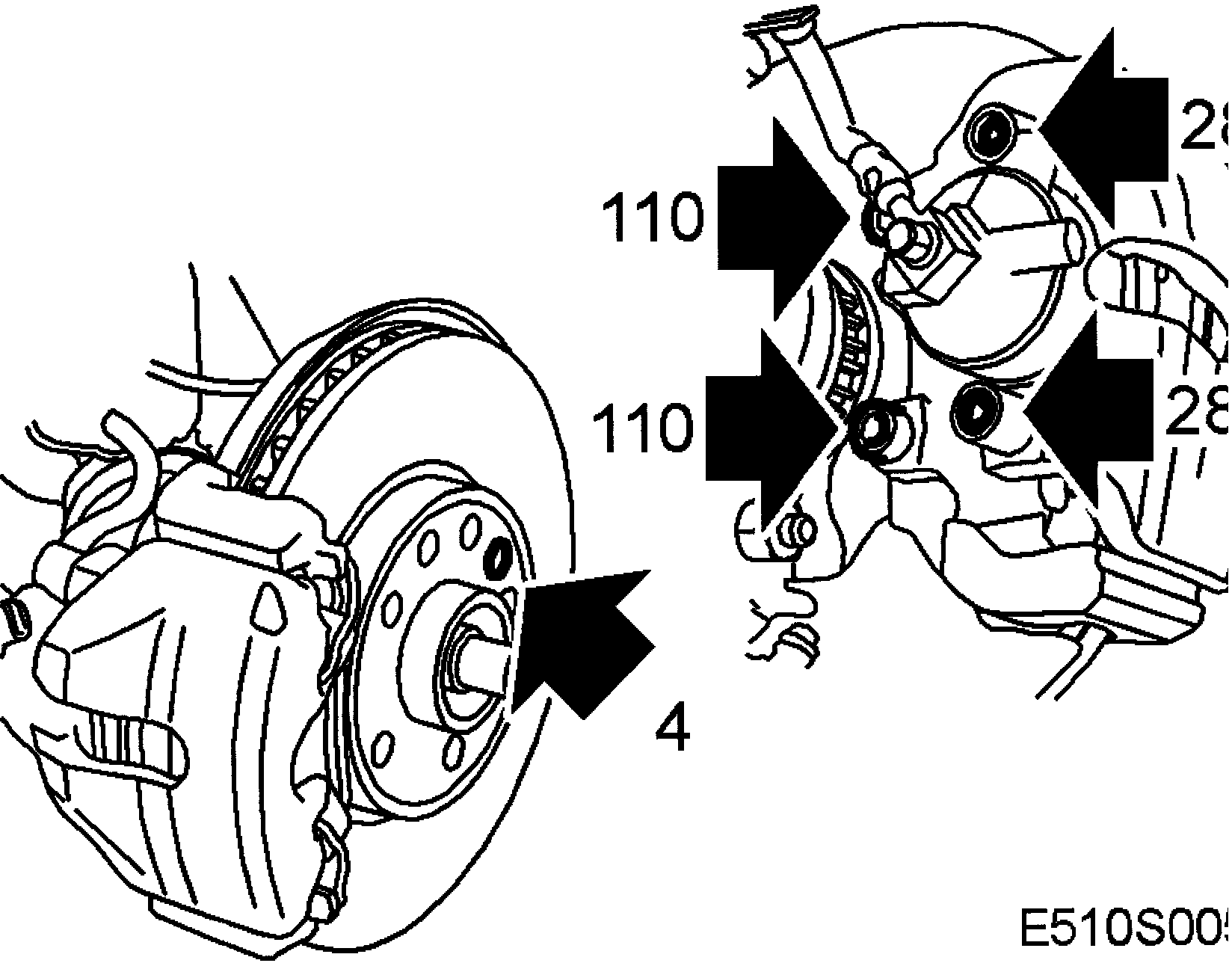

Locking screw, rear brake disc 10 Nm (7.4 ft. lbs.)
Locking screw, front brake disc 4 Nm (3 ft. lbs.)

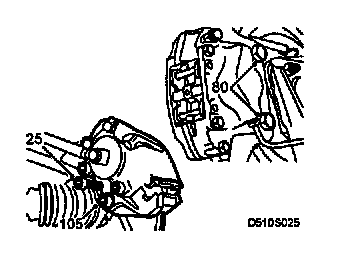

Guide pins, front brake caliper 25 Nm (18 ft. lbs.)

[l():

Tightening torque, others
