Checking the Switch

Checking the Switch

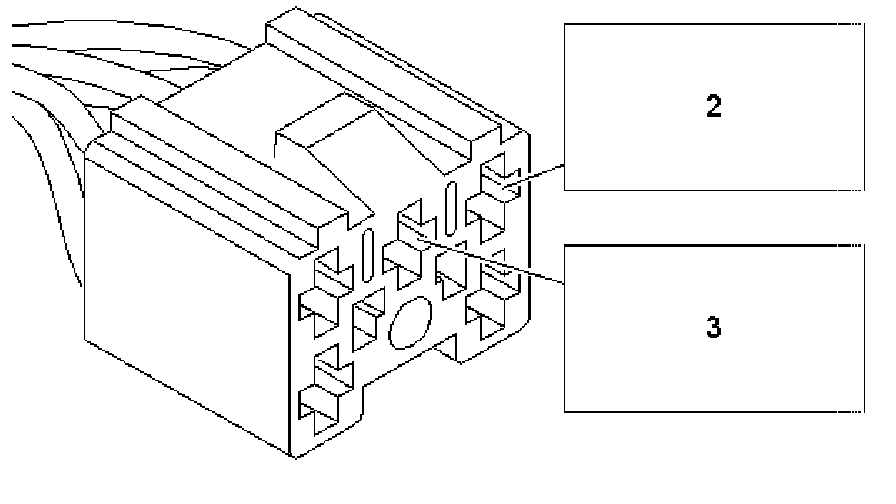

- Connect a jumper lead between pins 3 and 2 of the female connector.
- Read value: Rear Seat Heater Switch (TWICE).
The diagnostic tool's display should show ON.

Is the function correct?

NO - Rectifying the Lead - VI

YES - Changing Components
