Checking the Operation of the Relay

Checking the Operation of the Relay

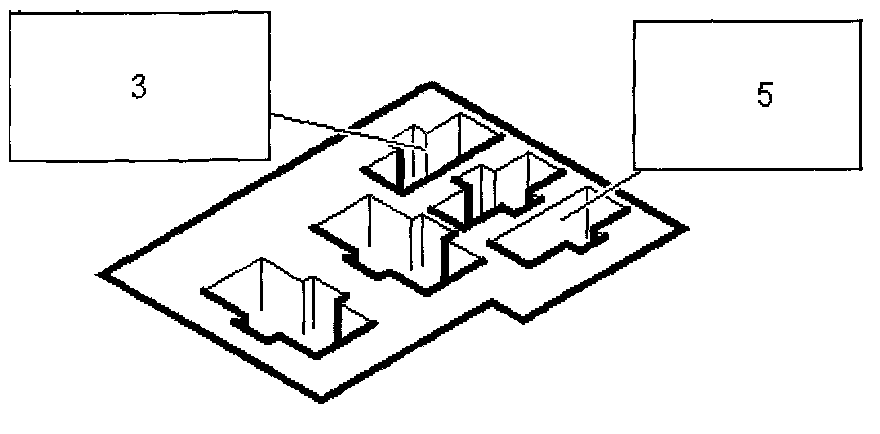

- Connect test lamp 86 11 857 to pins 3 (86) and 5 (85) of the relay holder.
- Read value: Rear Seat Heater (TWICE)
- The test lamp should light.


Is the function correct?

NO - Rectifying the Lead - V

YES - Changing Components
