Checking Control Module Input

Checking Control Module Input

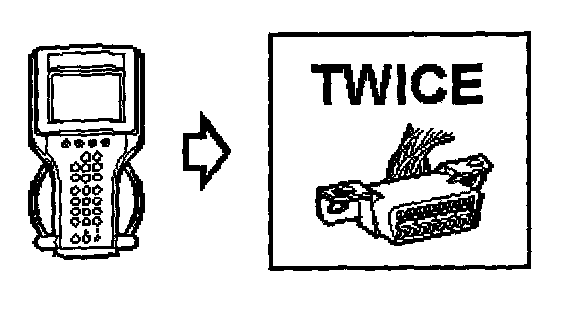

- Contact TWICE.
- Read value: Rear Seat Heater Switch (TWICE).

The diagnostic tool's display should show ON.

Is the function correct?

NO - Checking the Switch's Power Supply

YES - Checking the Relay Power Supply
