Seat Cushion, Rear Seat, 3D/5D

Seat Cushion, Rear Seat, 3D/5D

To remove

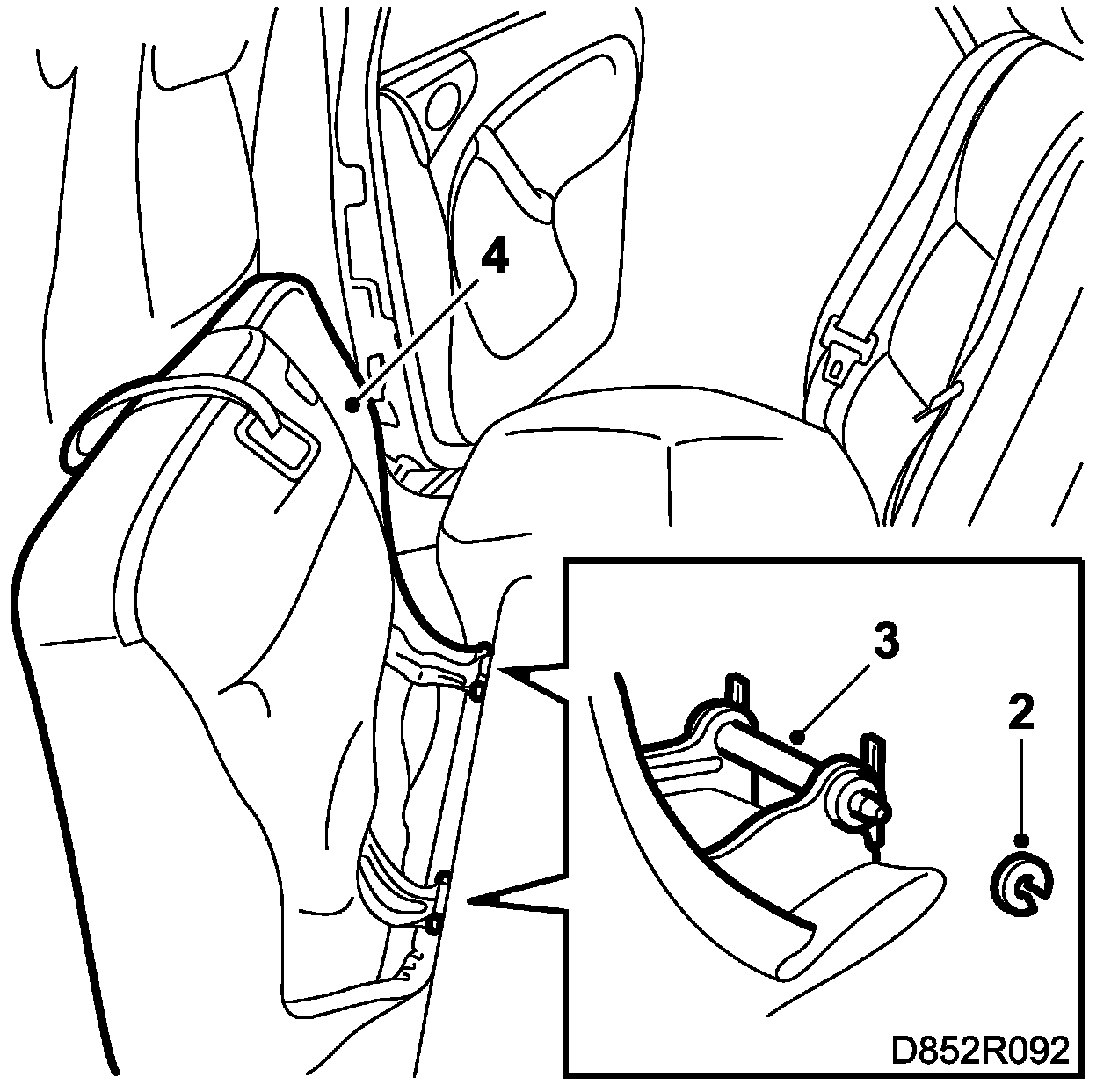

1. Put the seats in an upright position (both the 60 and 40-percent parts).
2. Remove the lock clip on the hinge pins.
3. Tap out the 4 pins from the hinges, 2 on each seat.
4. Lift out the seats.

To fit

Fit in reverse order

NOTE: Insert the hinge pins on the 60-percent part and the outer pin on the 40-percent part from right to left. The inner pin on the 40-percent part is inserted from left to right.
