Heating Pad, Rear Seat




To remove








1 Remove the seat upholstery, see.

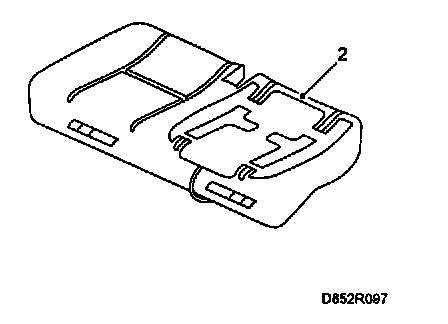

2 Remove the seat heater connector from the holder in the metal plate and unplug the connector. Use special tool part no.55 50 110.
3 Detach the heating pad from the seat cushion using benzine.
Be careful to ensure that large pieces of padding do not come away.


NOTE: Wear gloves when working with benzine.


To fit
Fit in reverse order.
