Motor and Sensor, Legroom Adjustment

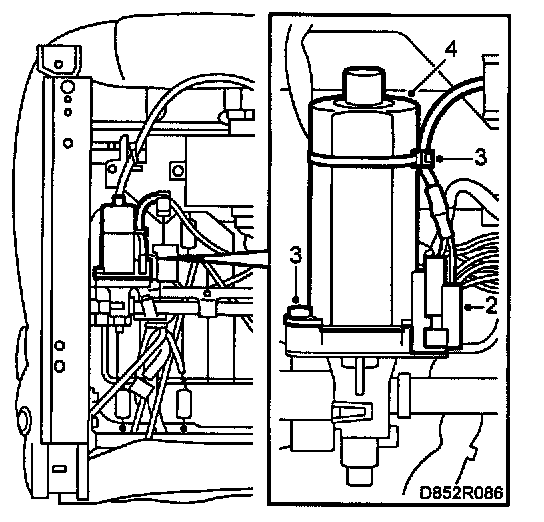

To remove







1 Remove the front seat from the car, see.
2 Unplug the connector for the legroom adjustment motor.
3 Remove the motor for the legroom adjustment, 2 screws and cable tie.
4 Lift the motor off the gear wheel.

To fit
Fit in reverse order.
