Motor and Sensor, Backrest Adjustment

To remove







1 Take the front seat out of the car, see.
2 Undo the straps holding the backrest upholstery at the bottom.
3 Release the upholstery strips on the underside.

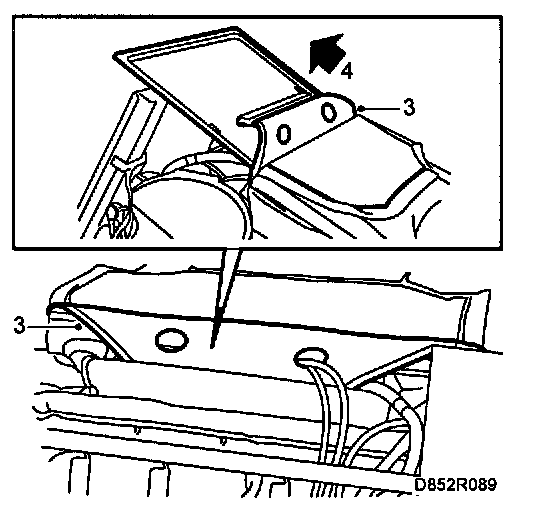

4 Undo the 2 screws holding the plastic plate and pull the plate out of the backrest upholstery.

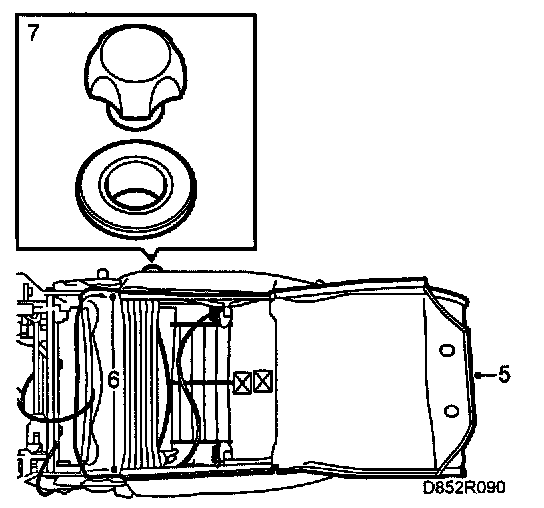

5 Undo the rear of the backrest upholstery by releasing the upholstery strips along the sides and folding back.
6 Release the upholstery strips along one side at the rear of the backrest frame.
7 Remove the knob for the lumbar support adjustment.
8 Detach the upholstery hooks in the underside of the backrest.
9 Fold aside the upholstery and cushion at the side of the backrest.

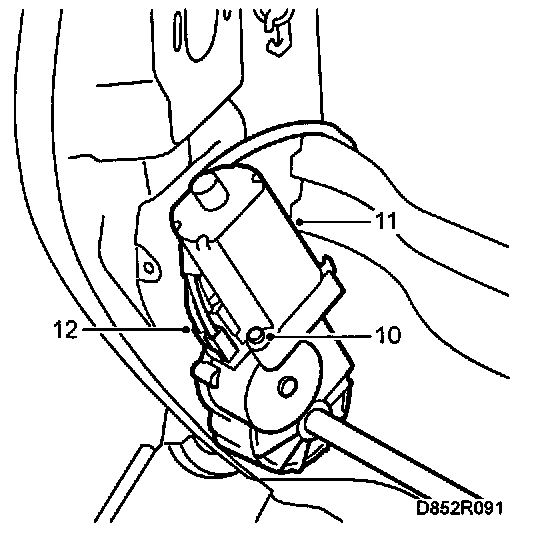

10 Unscrew the motor for the backrest adjustment, 2 screws.







11 Lift the motor off the gear wheel.
12 Unplug the connector for the backrest adjustment motor.

To fit
Fit in reverse order.
