Symptom Related Diagnostic Procedures

Electrically Operated Sunroof Not Functioning










Fault symptoms

Electric sunroof not functioning

Diagnostic help

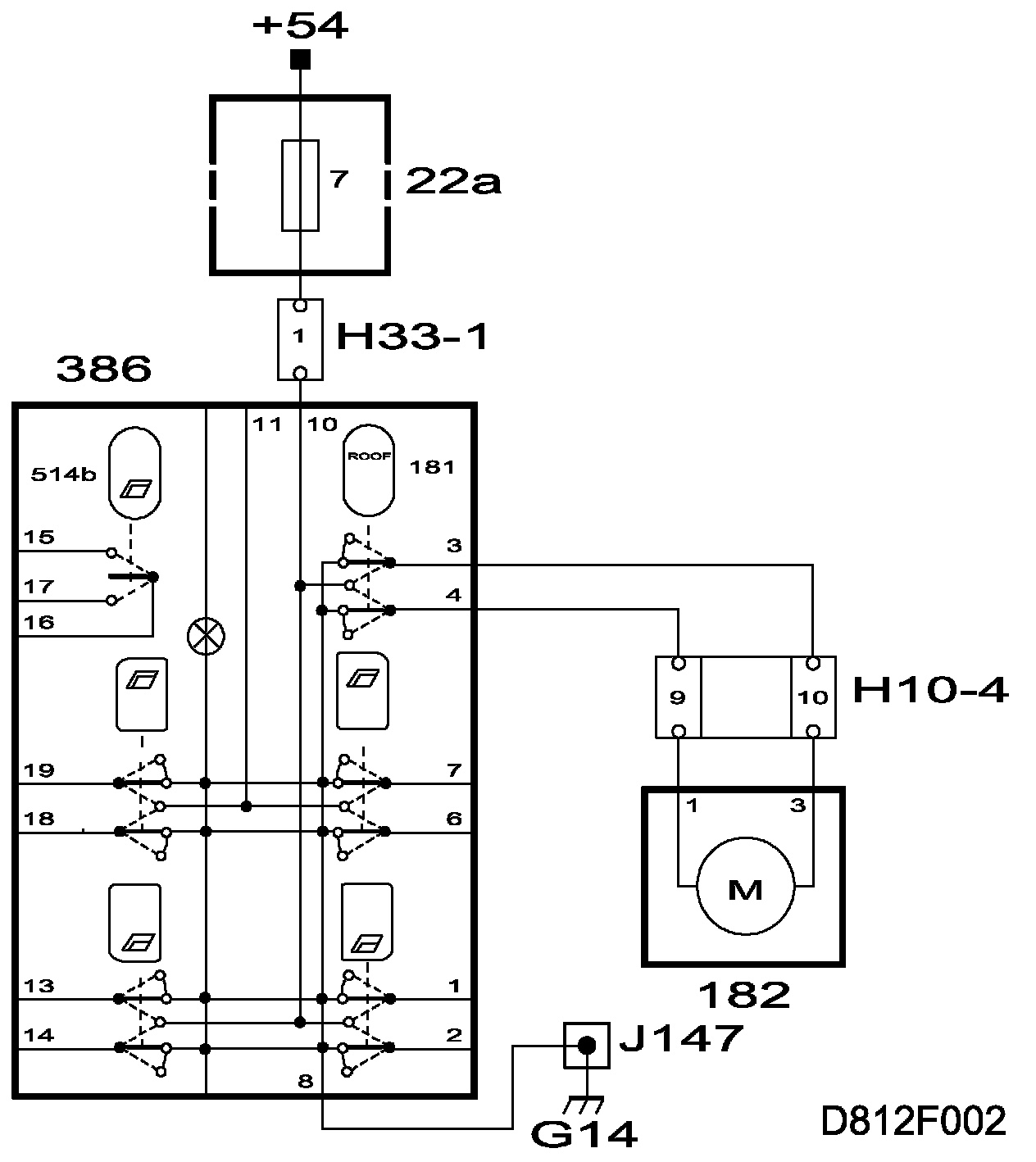

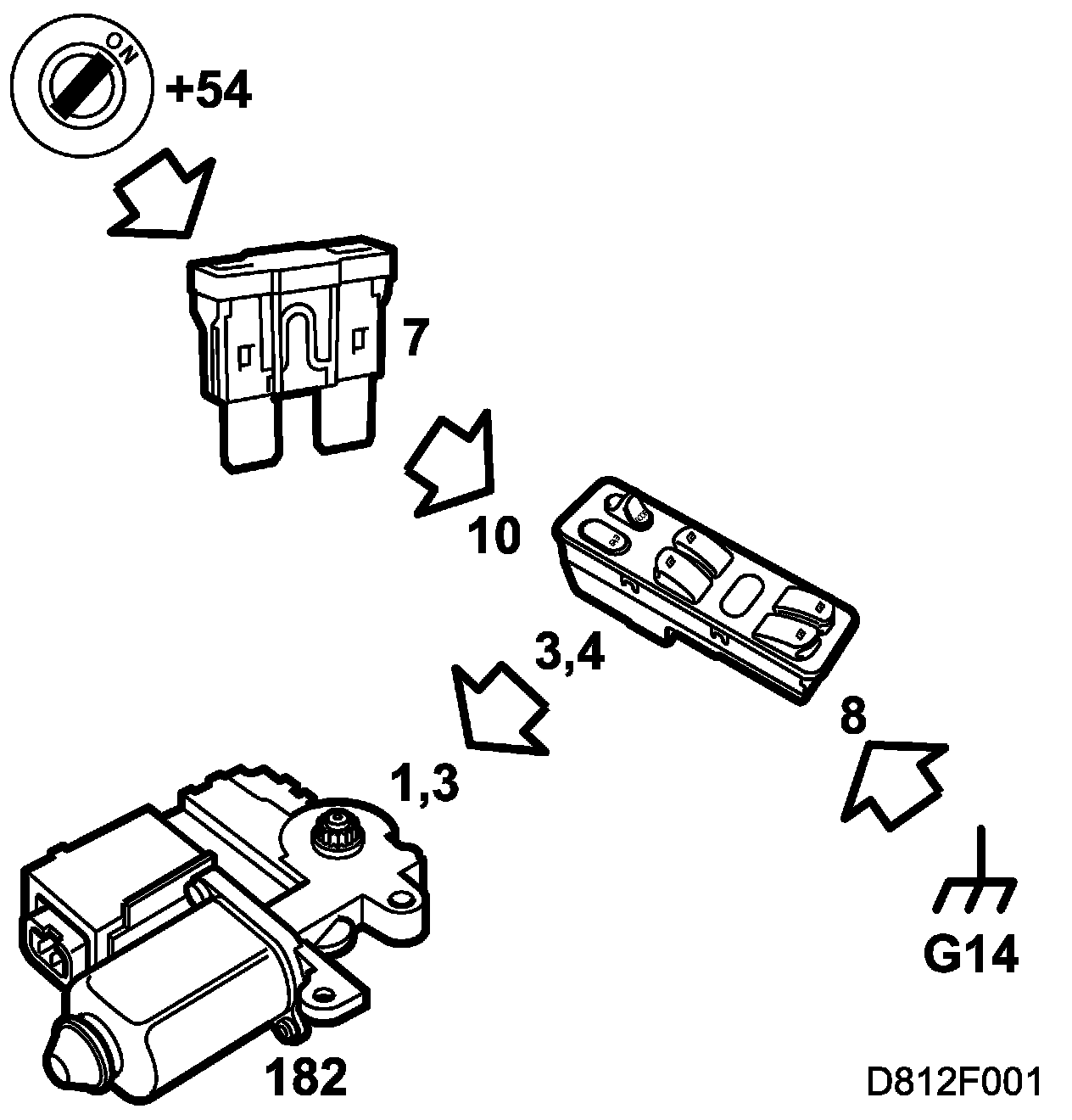

The sunroof can be operated when the ignition is in the ON position (+54).
The electric motor is grounded through pin 3 in grounding point G14.

1. Check fuse 7, and that there is power to the fuse.
2. Check that voltage reaches the switch, pin 10.
3. Activate the switch and check that the motor is supplied with power.
4. Check connectors, wiring harness, and ground connections.

Fault diagnosis procedure is not available.
