Procedures

To remove







1 Set the mechanism in the rearmost position.

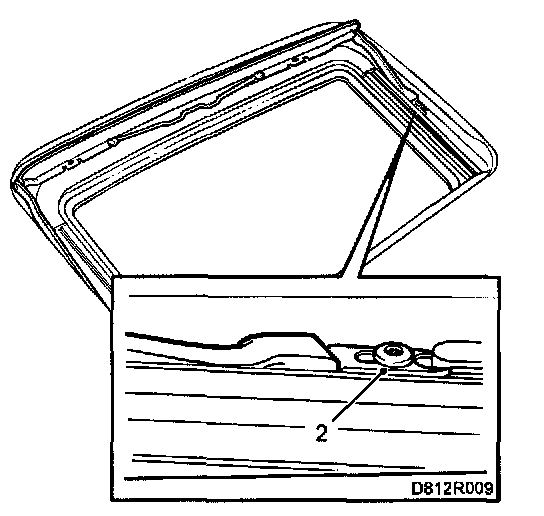

2 Remove the two retaining screws that secure the wind deflector arm.

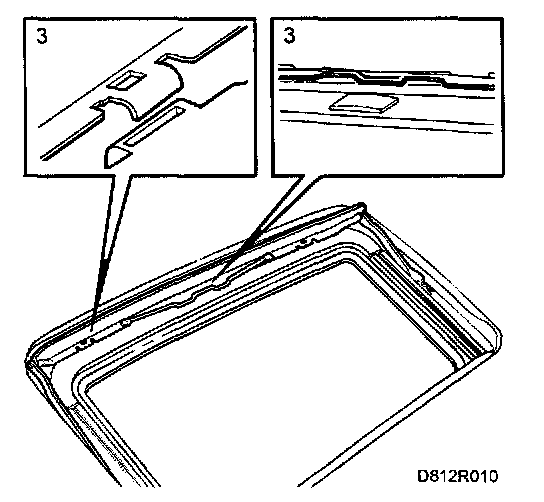

3 Unhook the front of the wind deflector and unhook the spring.







To fit

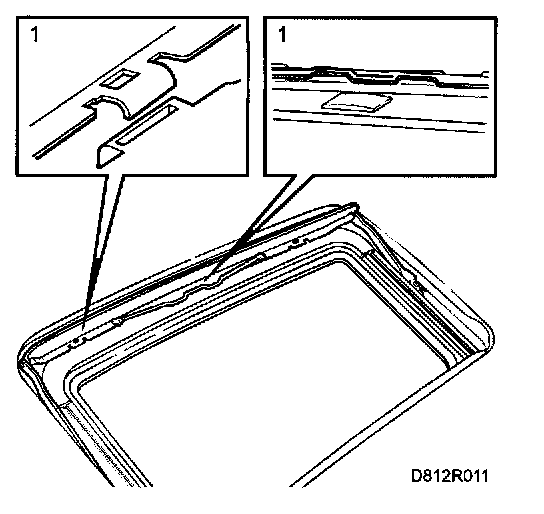

1 Hook the spring to the wind deflector when it is upright, then hook on the wind deflector itself.

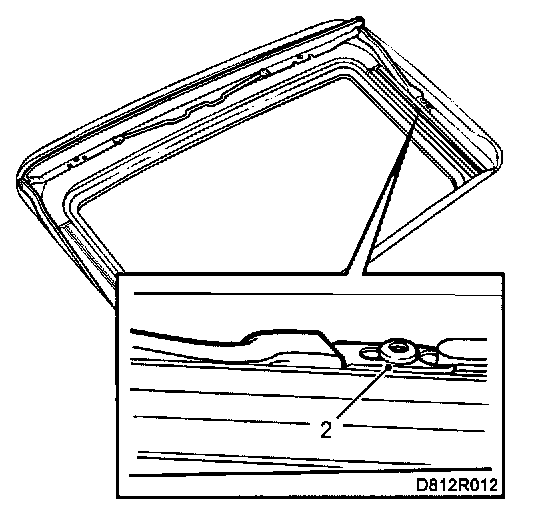

2 Fit the screws for the arms but do not tighten.







3 Adjust the wind deflector so that it opens up as much as possible.
4 Tighten the screws.
5 Set the mechanism in the forward position.
