Sunroof / Moonroof Motor: Service and Repair

Electric Motor For Sunroof

To remove







NOTE: If the sunroof motor is malfunctioning, the hatch can be operated manually with a screwdriver.

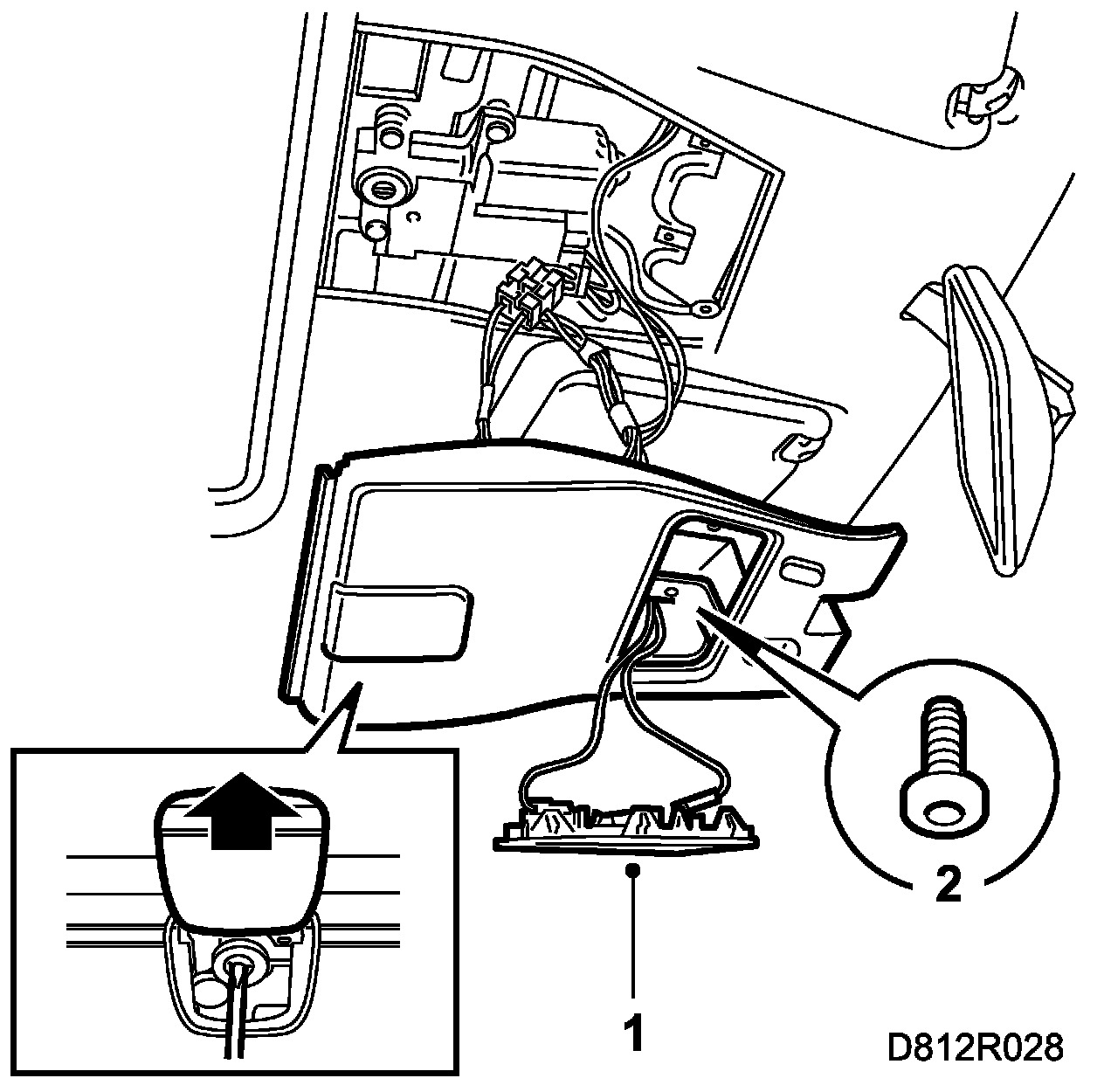

1. Remove the interior lighting.
2. Remove the 2 retaining screws that secure the lighting console. Pull off the console, fastened with 2 clips at the rear edge.

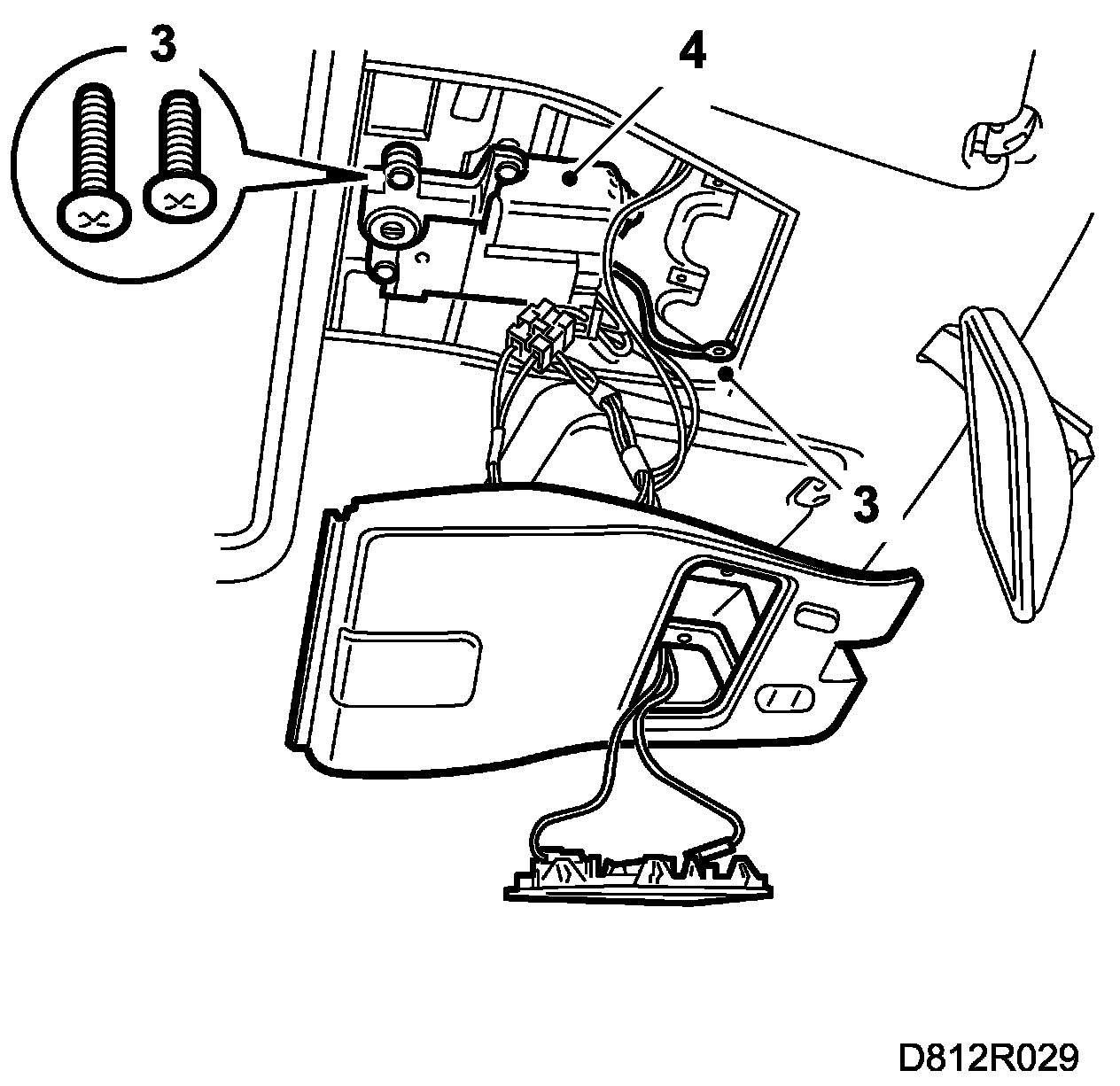

3. Remove the grounding point for the motor and the 3 retaining screws.







4. Lower the motor.


To fit

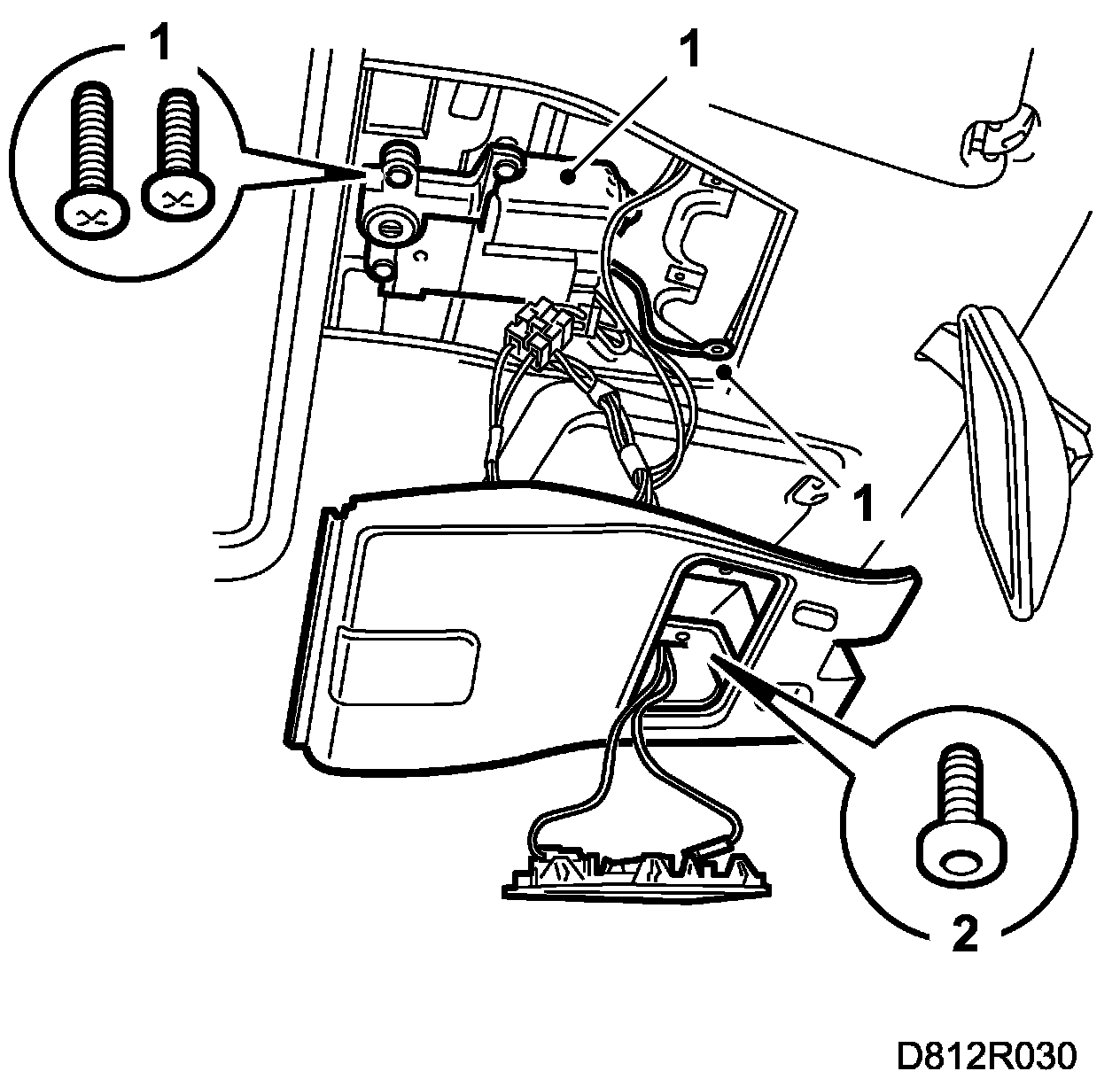

1. Fit the motor and tighten the three (3) retaining screws.
2. Fit the console for the interior lighting and tighten the 3 retaining screws.
3. Refit the interior lighting.
