Procedures

To remove





1 Remove the glass hatch.

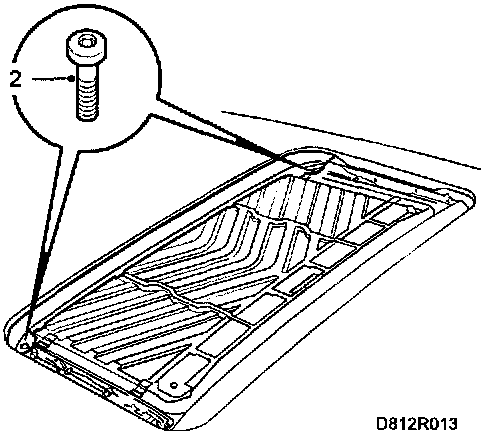

2 Remove the two outer retaining screws from the rain gutter.
3 Remove the rain gutter by lifting it up and pulling it forwards.


To fit

1 Fit the rain gutter in position, make sure that the pins first enter at the rear, then fit the front of the gutter.
2 Fit and tighten the two screws. If there is resonance noise from the rain gutter, the screws need tightening.
3 Refit the glass hatch.
