Procedures

To remove







1 Remove the sunroof unit.
2 Remove the motor.
3 Remove the glass hatch.
4 Remove the rain gutter.

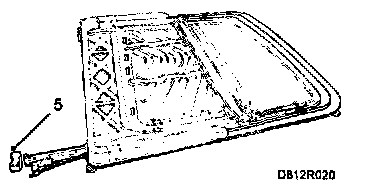

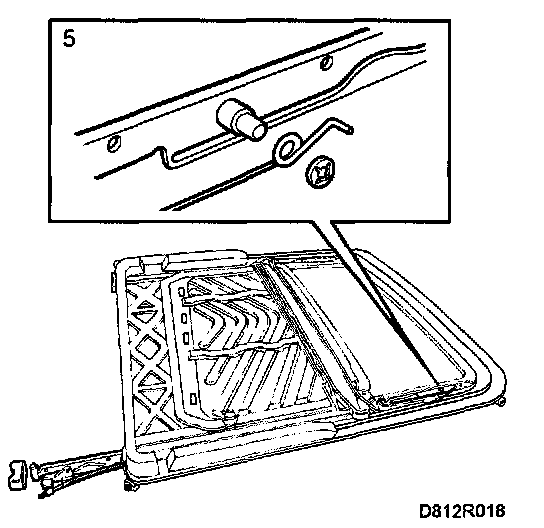

5 Remove the locking ring and fold out the spring.

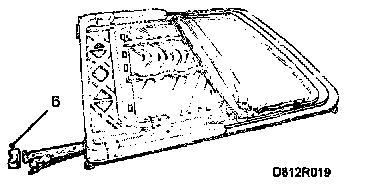

6 Remove the retaining bolt from the cover at the rear, one cover strip on each side.

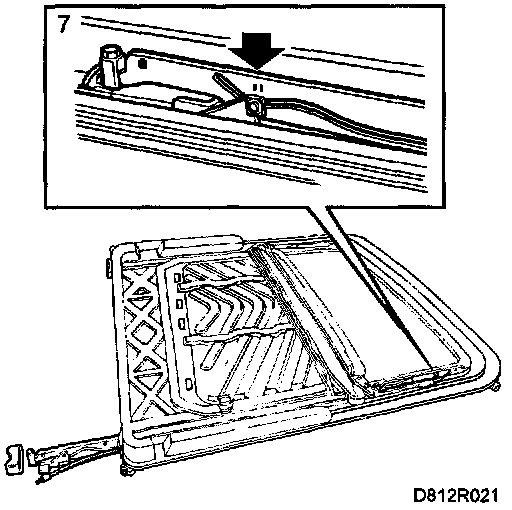

7 Move the holder for the rain gutter rearwards-downwards and remove them from the rail, one on each side.


NOTE: Holder with anti-vibration spring.


8 Press down the catch at the rear of the slide mechanism and pull it rearwards.
9 Pull out the drive cable to the rear.
10 Remove the wire from the slide mechanism with a small screwdriver (snap-on fastener).

To fit







1 Fit the drive cable to the slide mechanism.
2 Insert the slide mechanism with cable until it snaps into position.
3 Mount the holders for the rain gutter.
4 Mount the anti-vibration spring and lock ring.
5 Fasten the rear edge of the covers with some adhesive.
6 Fit the rain gutter.
7 Adjust the cables on both sides. Make sure that the rivet is halfway between the two marks in the link.







8 Refit the motor.
9 Refit the glass hatch.
10 Refit the sunroof unit.
