Sun Shade: Service and Repair

Sun Visor, Sun Roof

To remove







1. Remove the Glass hatch (sun roof hatch).

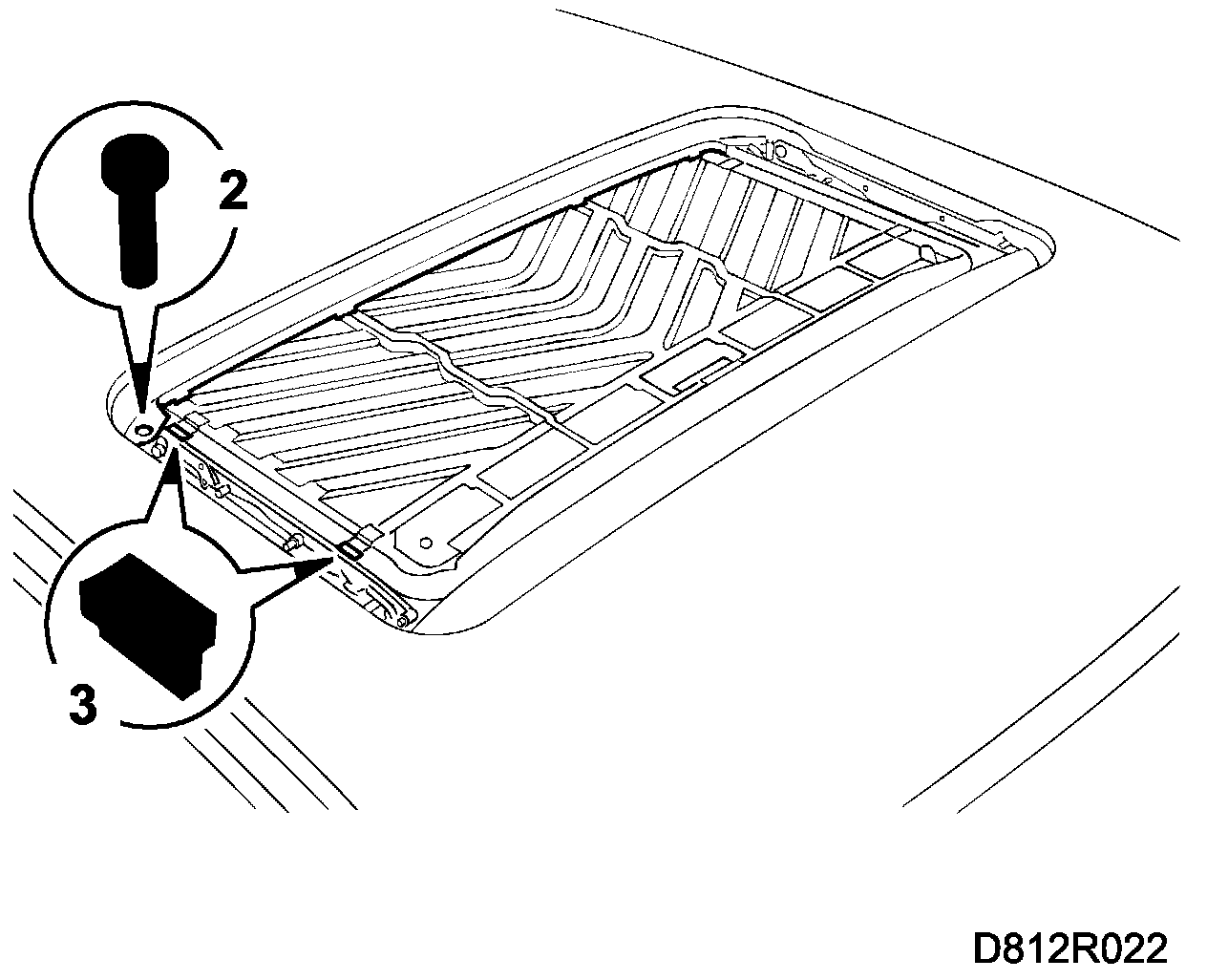

2. Remove the water channel.
3. Remove the rubber bushes.
4. Press the trim on one side towards the opposite side.
5. Press in the guide against the trim, one side at a time.
6. Lift up the trim.

To fit

Fit in reverse order.
