Sunroof Hatch

To remove

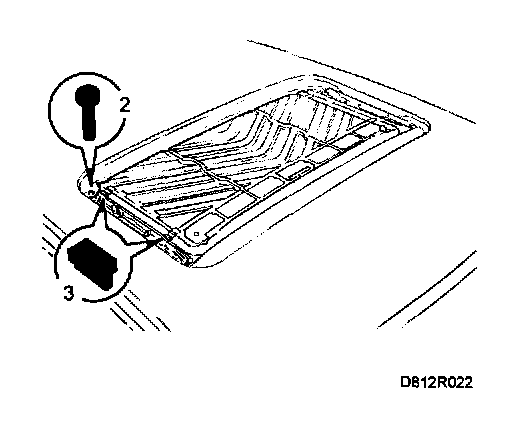

1 Remove the sunroof. Sunroof Assembly
2 Remove the water channel.
3 Remove the rubber bushes.
4 Press the trim on one side towards the opposite side.
5 Press in the guide against the trim, one side at a time.
6 Lift up the trim.

To fit
Fit in reverse order.
