Home >> Saab >> 2000 >> 9-3 Hatchback (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Memory Positioning Module >> Locations >> Control Module, PSM K1, K2 & K3

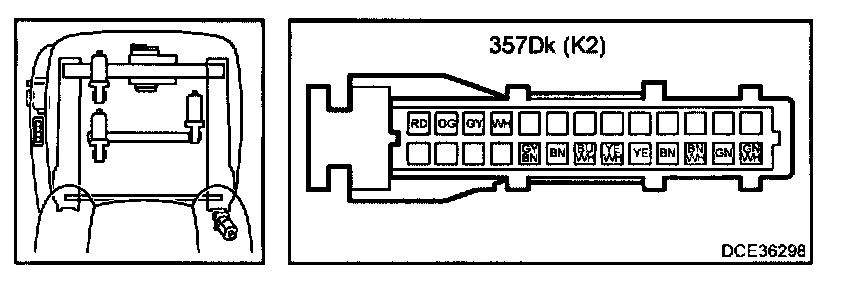

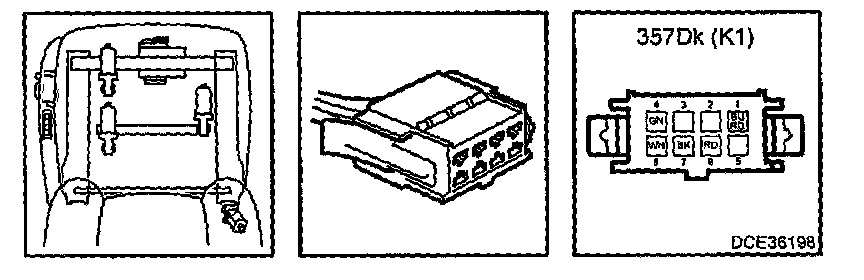

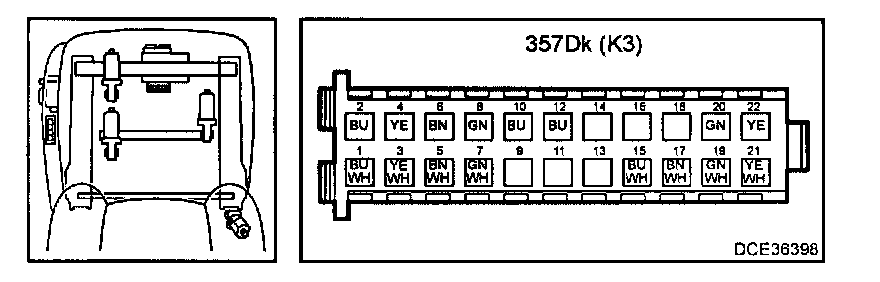

Control Module, PSM K1, K2 & K3
