Door Lock, Rear Doors

To remove







1 Open the door.
2 Remove the door trim.

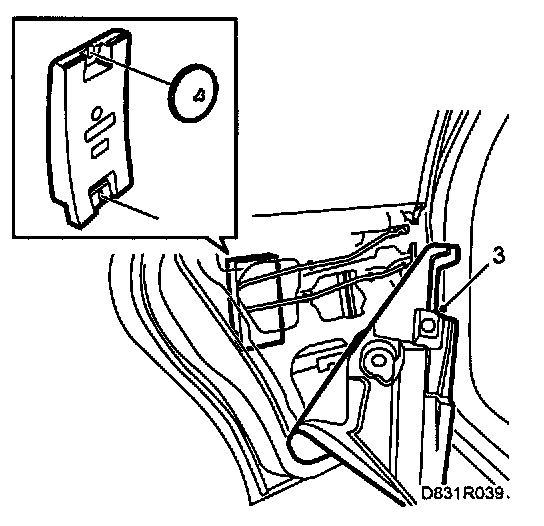

3 Remove the plastic water barrier.
Lift out the collision block to increase accessibility.

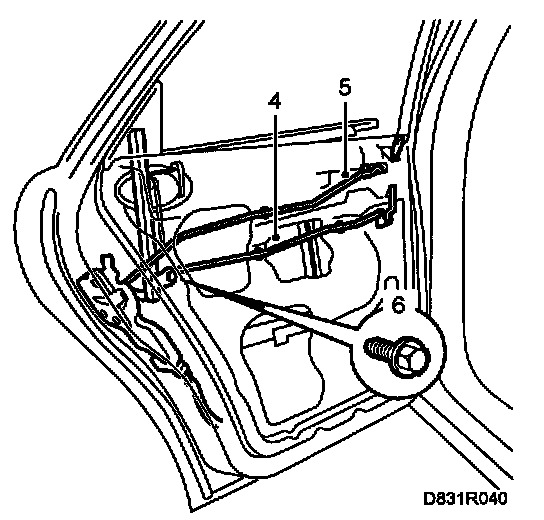

4 Remove the pull rod, between inside handle and look, from the look.







5 Remove the pull rod between look button and look, from the look.
6 Remove the retaining screw for the rear guide channel.

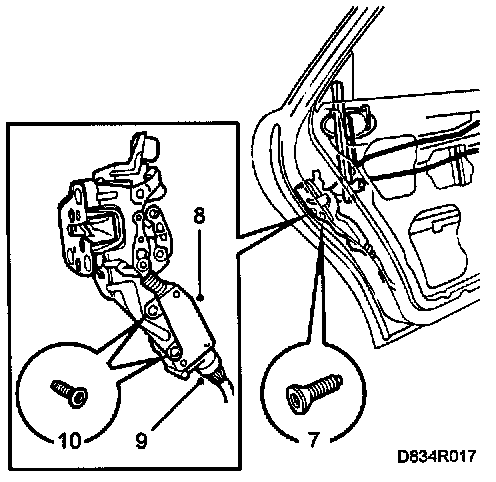

7 Remove the three retainer screws from the look.







8 Remove the complete look unit.
9 Unplug the connector for the central look motor.
10 Remove the central look motor from the look.

To fit
Fit in reverse order.
Check the door handle clearance against the lock. Adjust it needed, by adjusting up/down the opening rod adjusting screw until it is up against the lock opening lever.

IMPORTANT
Make sure the water drainage plastic is tight against the inner panel of the door and that it is not damaged.


NOTE: It must be possible to feel the clearance in the door handle, the lock opening lever must not be actuated in the resting position.
