System Overview, Central Locking System, Tailgate

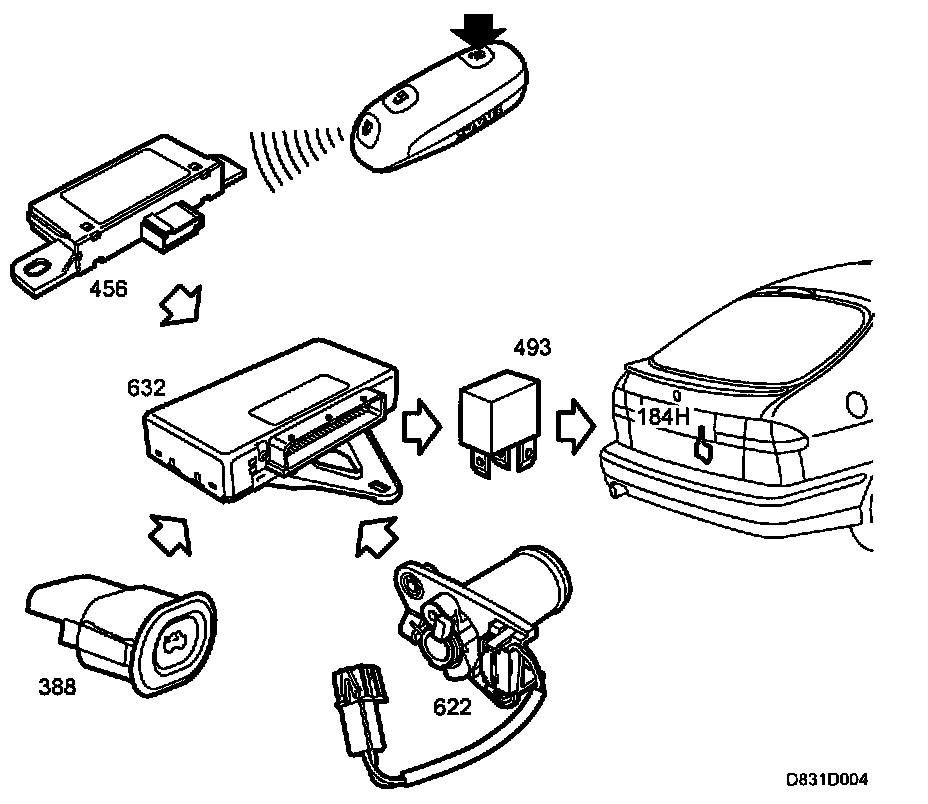

System overview, central locking system, tailgate

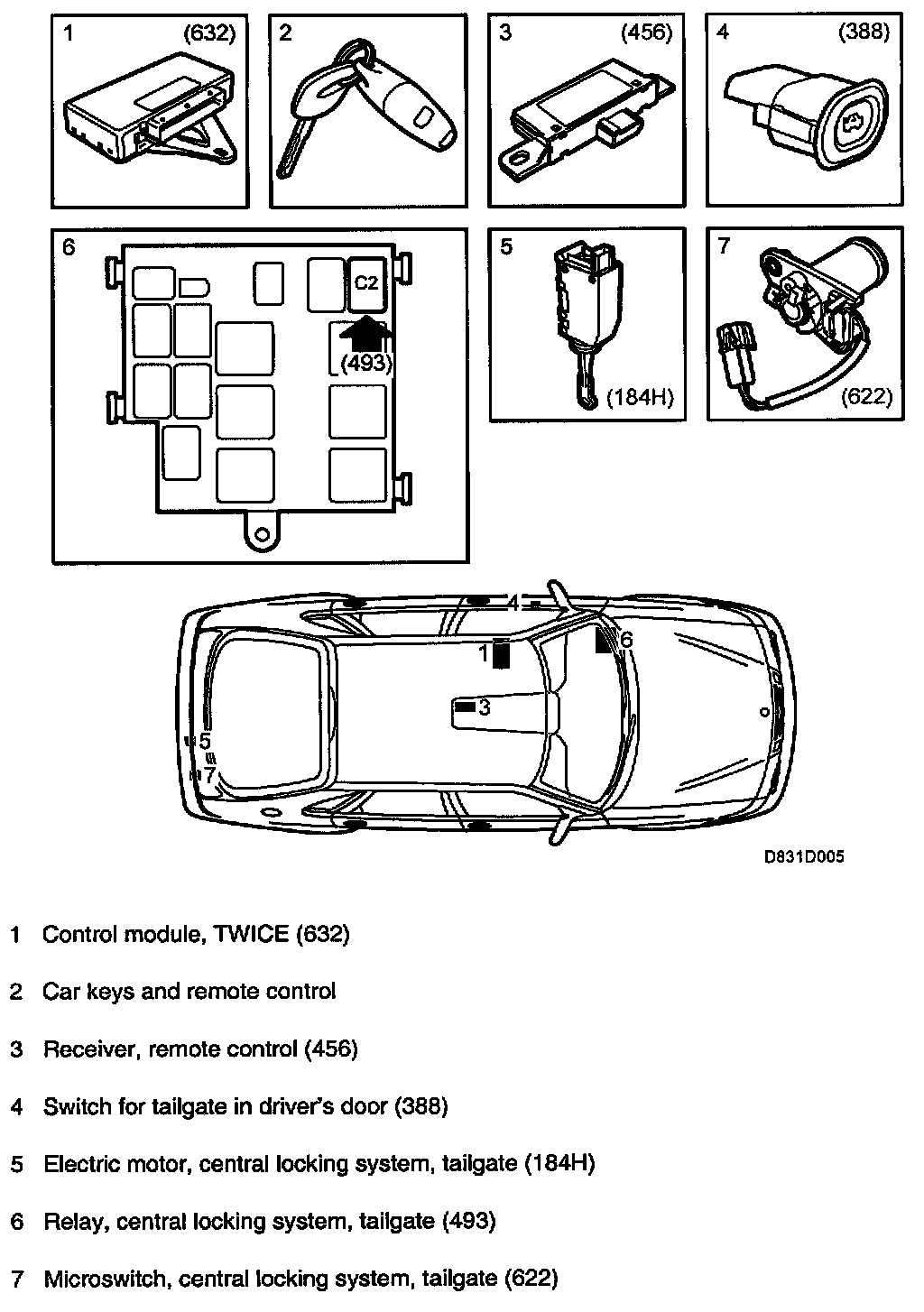

Main components, central locking system, tailgate
