Rear Doors

To remove

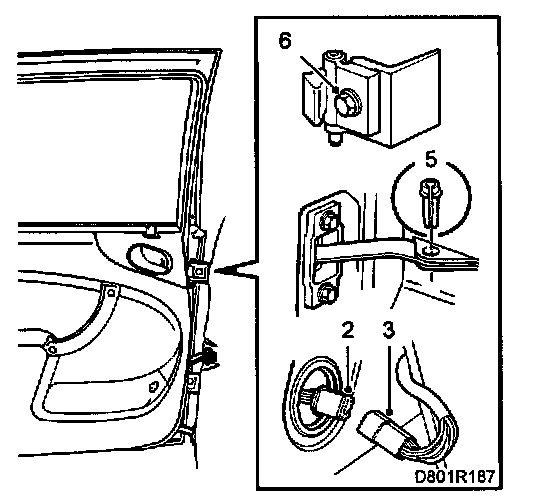

1 Open the front door so that the grommet for the rear door wiring harness in the B-pillar is accessible.
2 Pull out the wiring harness rubber passage from the B-pillar.
3 Pull out the connectors and unplug.
4 Open the rear door.
5 Drive out the bushing from the door stop.
6 Remove the hinge bolts.
7 arefully lift the door off its hinges. The door must be opened completely before it can be removed.

To fit
Fit in reverse order.

Tightening torque:
Hinge bolts: 47 Nm (35 lbf ft).

NOTE: In order to get the correct fit between the door and the wing, it may be necessary to lift slightly at the rear edge of the door. Connect the diagnostics tool and erase any diagnostic trouble code.

Adjustment
Adjust the door, see Adjustment of front and rear doors
