Tech 2 Menu Structure

Tech 2 menu structure

Diagnostic Trouble Codes (DTC)
Read Values
Programming
Snapshot
System Information

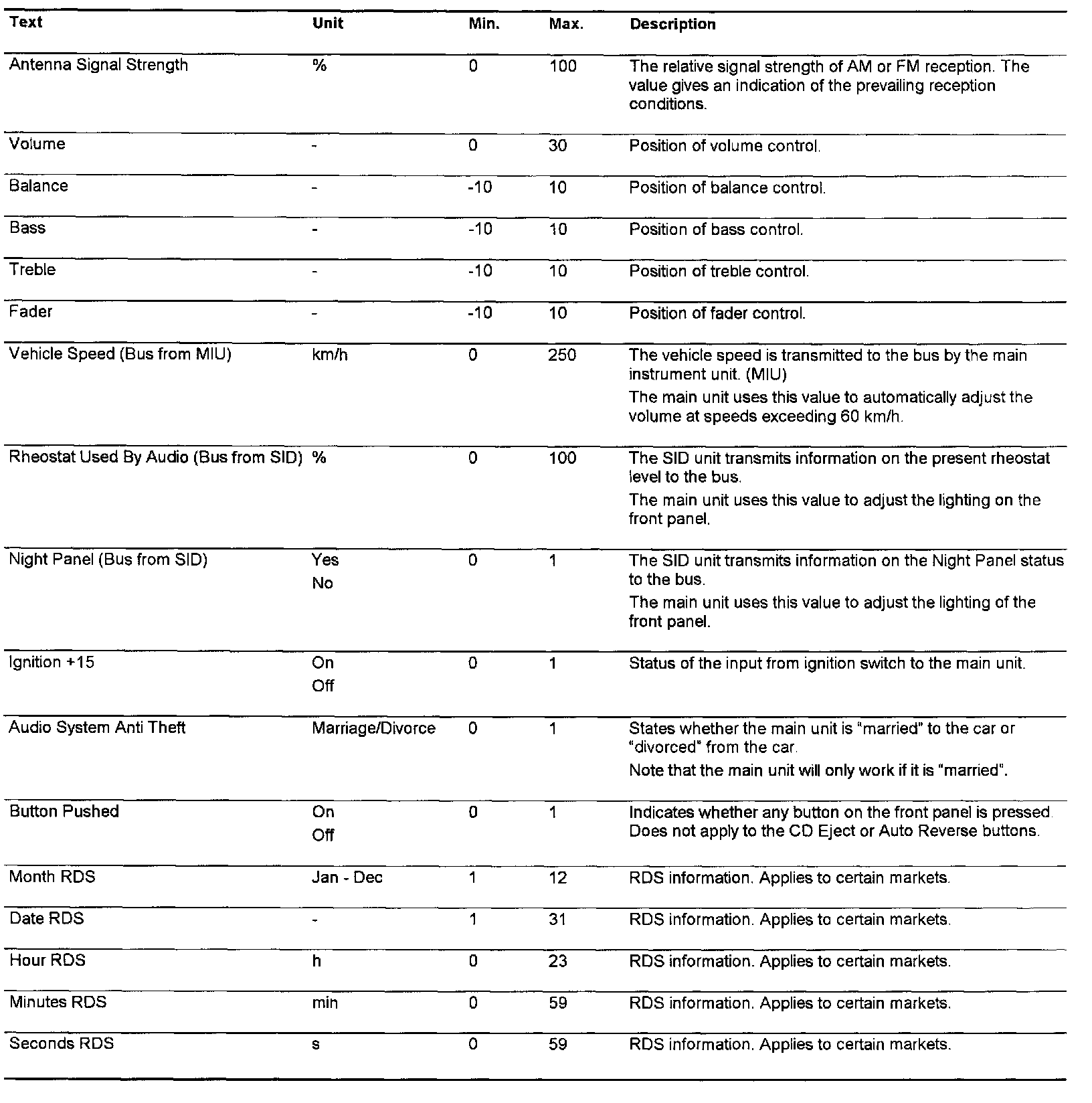

Menu "Read Values":

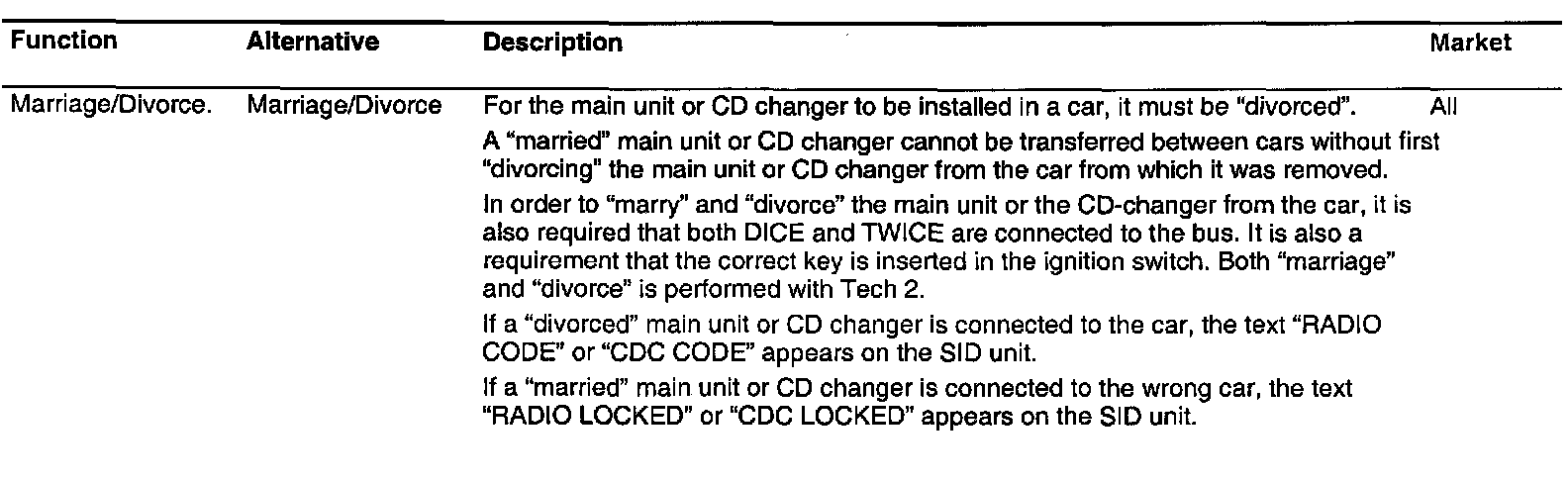

Menu "Programming":

Menu "System Information"

Text Function
SAAB Part Number: Shows the SAAB 7-digit part number for the control module.
Hardware Version Number: Shows the suppliers x-digit part number for the control module.
Software Version Number: Shows the suppliers x-digit part number for the software.
