Loudspeakers, Parcel Shelf

Loudspeakers, parcel shelf

To remove

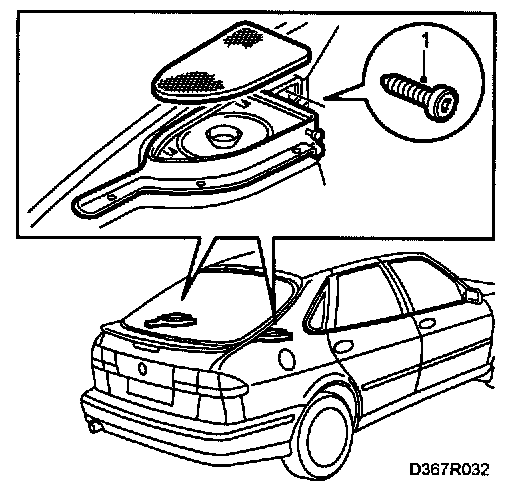

1 Undo the 6 screws securing the frame for the loudspeaker grille. Two of the screws are located under the loudspeaker grille


IMPORTANT
One screw is located between the rear backrest and the loudspeaker grille.


2 Remove the parcel shelf support.

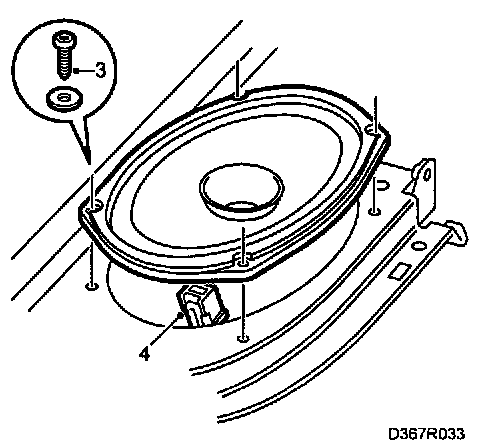

3 Remove the 4 screws holding the loudspeaker.







4 Lift out the loudspeaker and separate the connector.

To fit
Fit in reverse order.
