Loudspeakers, Front Doors

Loudspeakers, front doors

To remove

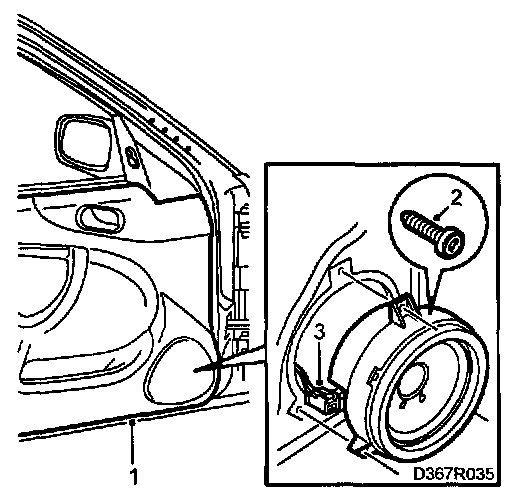

1 Remove the door trim to gain access to the loudspeakers.
2 Remove the screws securing the loudspeakers.
3 Take out the loudspeaker and unplug the connectors.

To fit
Fit in reverse order.


NOTE To obtain the best sound from the loudspeakers, the doors should be air-tight.
