Audio Systems 1, 2 and 3

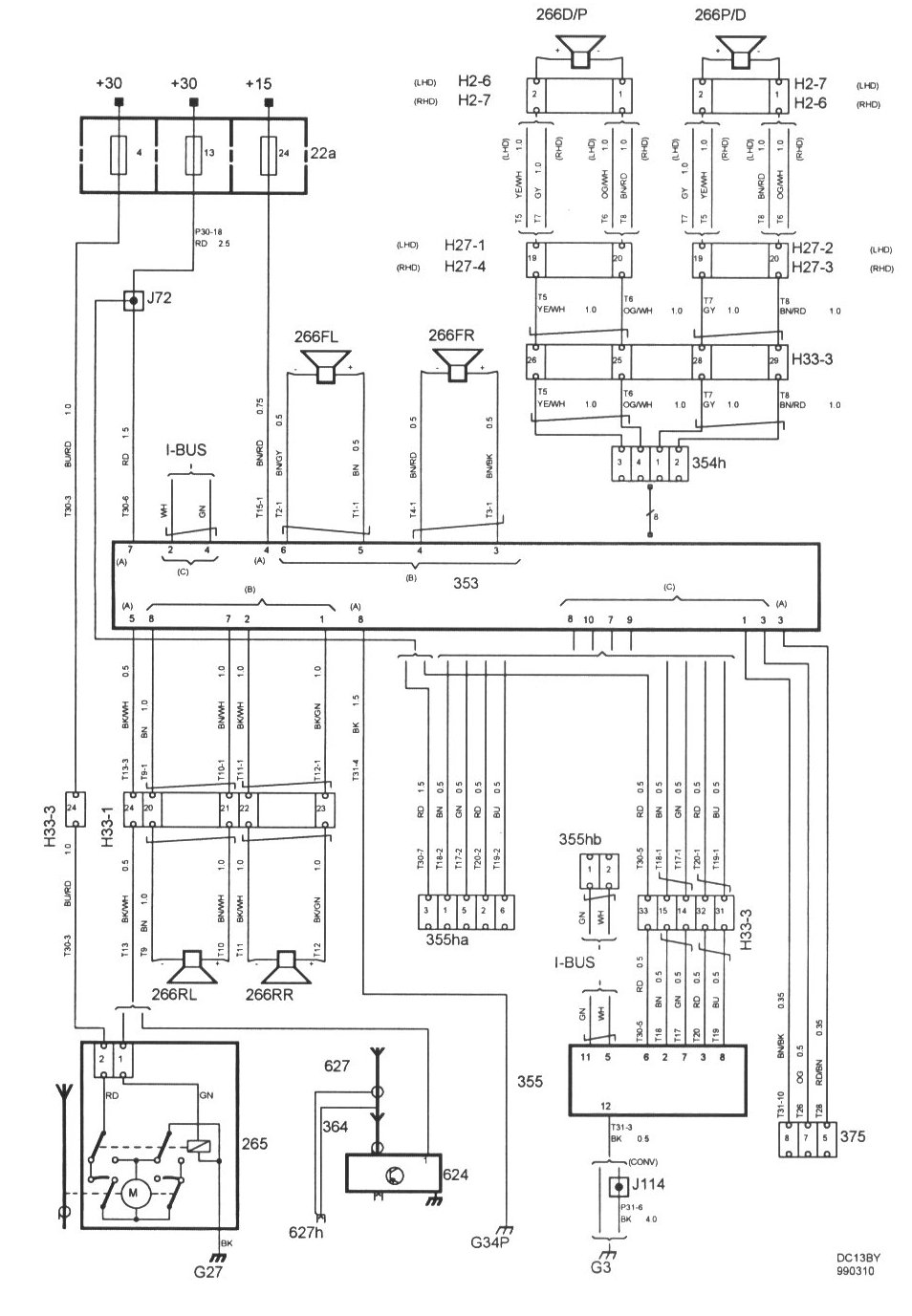

Audio Systems 1 and 2


Audio Systems 1 And 2:







Part 1:







Part 2:







Part 3:

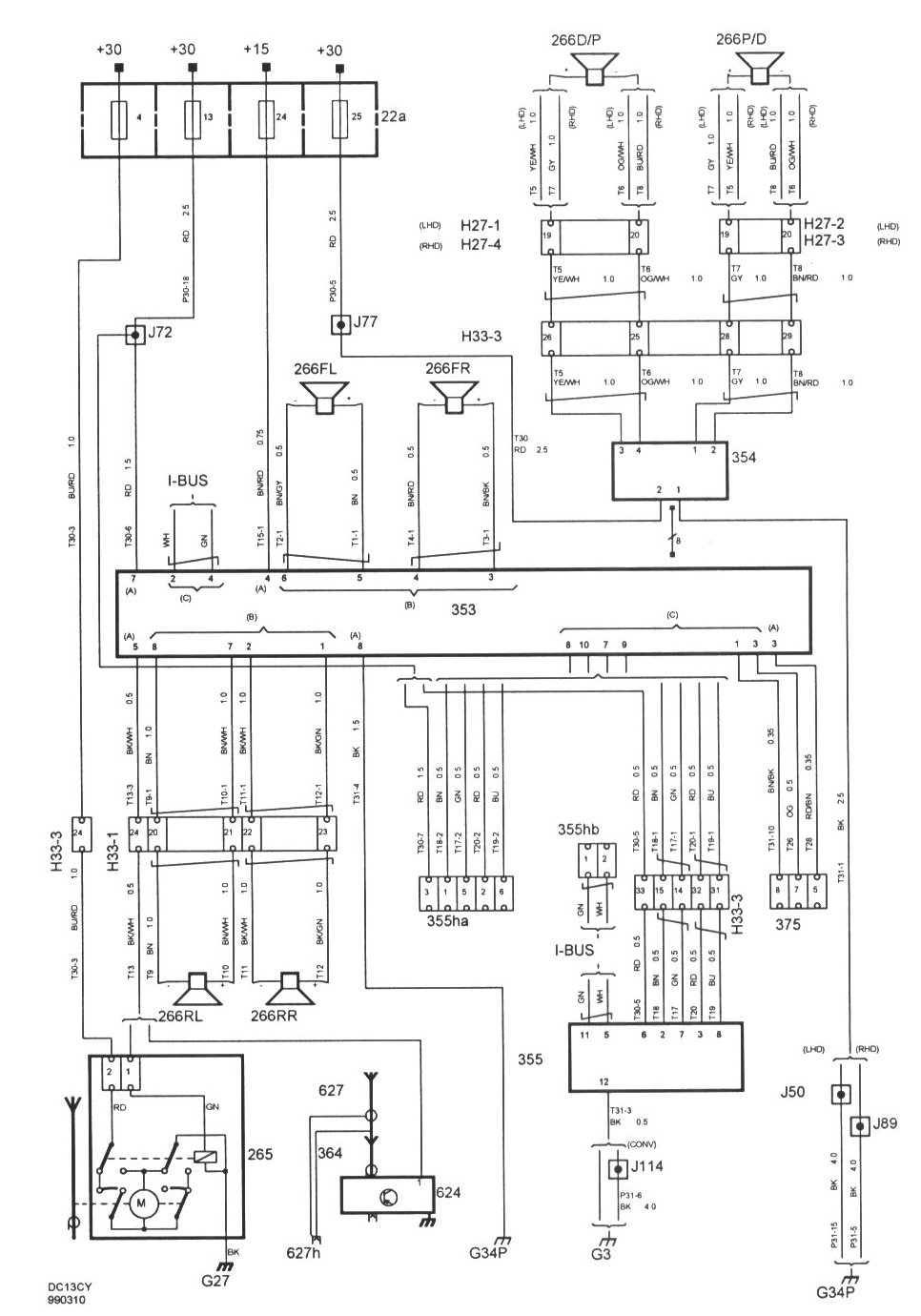

Audio Systems 3


Audio System 3:







Part 1:







Part 2:







Part 3:
