SID Unit Inputs and Bus, Outputs and Bus

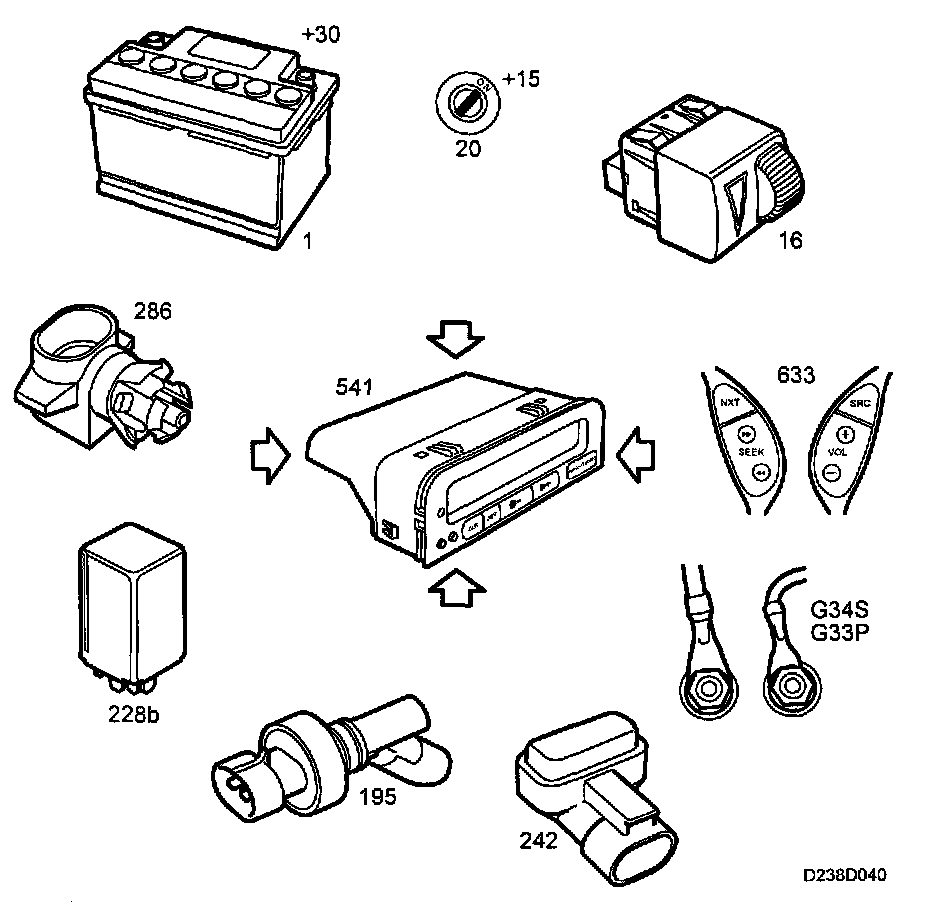

SID Unit Inputs

SID Unit Inputs:

- Power supply (+30 circuit) (1)
- Power supply (+15 circuit) (20)
- Ground (G34S)
- Rheostat (16)
- Steering wheel controls (633)
- Engine coolant level (242)
- Washer fluid level (195)
- Filament monitor (228B)
- Temperature, outside air (286)

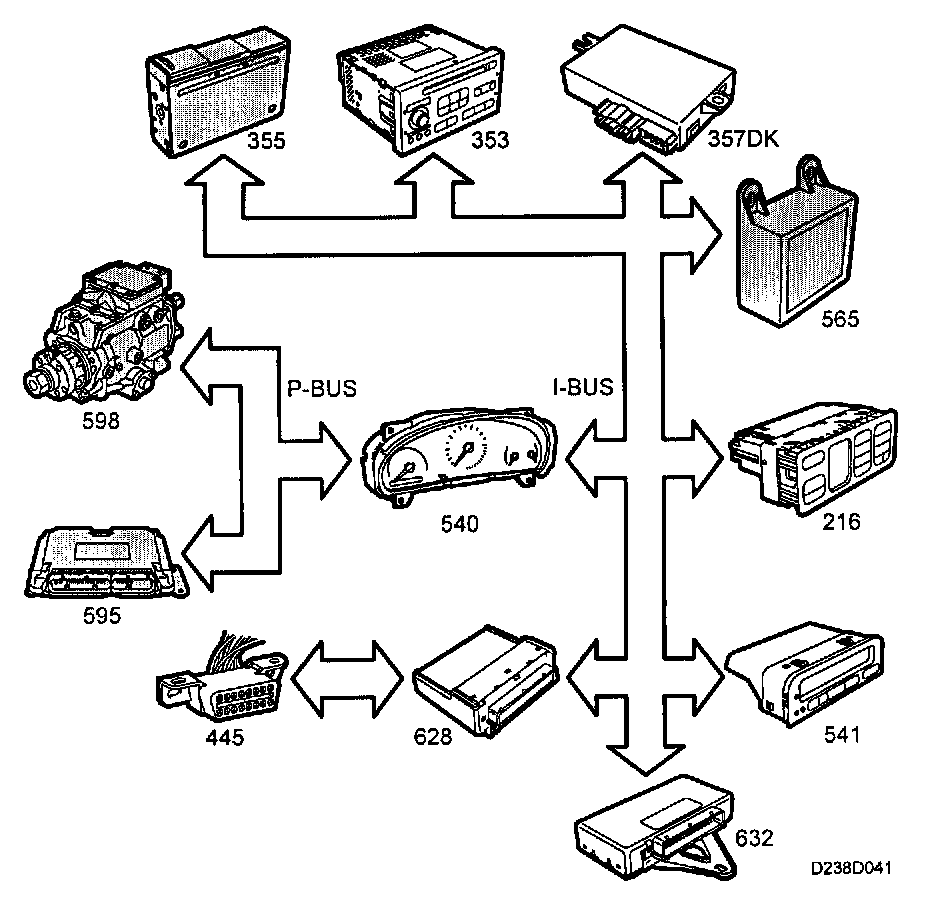

SID Unit Inputs, Bus

SID Unit Inputs, Bus:

- Position lights (ON/OFF) from DICE (628)
- Rear Fog Light Broken (YES/NO) from DICE (628)
- Direction Indicators Left (ON/OFF) from DICE (628)
- Direction Indicators Right (ON/OFF) from DICE (628)
- Sound from DICE (628), TWICE (632), ACC (216), AUDIO (353), MIU (540), PSM (357dK) STC (565)
- Left Rear Light Broken (YES/NO) from TWICE (632)
- Right Rear Light Broken (YES/NO) from TWICE (632)
- Left Brake Light Broken (YES/NO) from TWICE (632)
- Right Brake Light Broken (YES/NO) from TWICE (632)
- High Level Brake Light Broken (YES/NO) from TWICE (632)
- Brake Lights (ON/OFF) from TWICE (632)
- TEST BRAKE LIGHTS (ON/OFF) from TWICE (632)
- Horn (ms) from TWICE (632)
- Text message from TWICE (632), ACC (216), AUDIO (353), MIU (540), STC (565)
- RDS time from AUDIO (353)
- RDS date from AUDIO (353)
- RDS month from AUDIO (353)
- Vehicle speed (km/h, mph) from MIU (540)
- TIGHTEN FUEL FILLER CAP from MIU (540)
- Fuel level (liters) from MIU (540)
- Odometer reading (km, miles) from MIU (540)
- Engine has started (ON/OFF) from ACC (216)
- Fuel Consumed Since Start (ml) from MIU (540), EDC 15 ()
- Coolant temperature ( °C/ °F) from MIU (540), EDC 15 ()
- Diagnostics communication

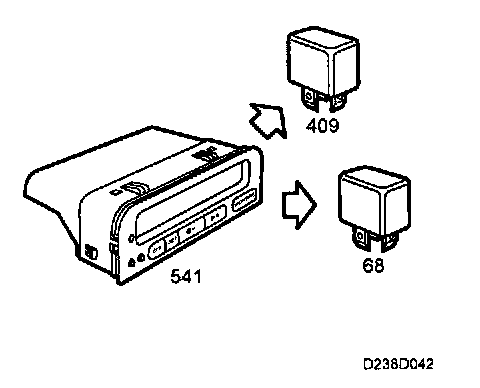

SID Unit Outputs

SID Unit Outputs:

- Horn relay (68)
- Parking heater relay (409) (diesel)

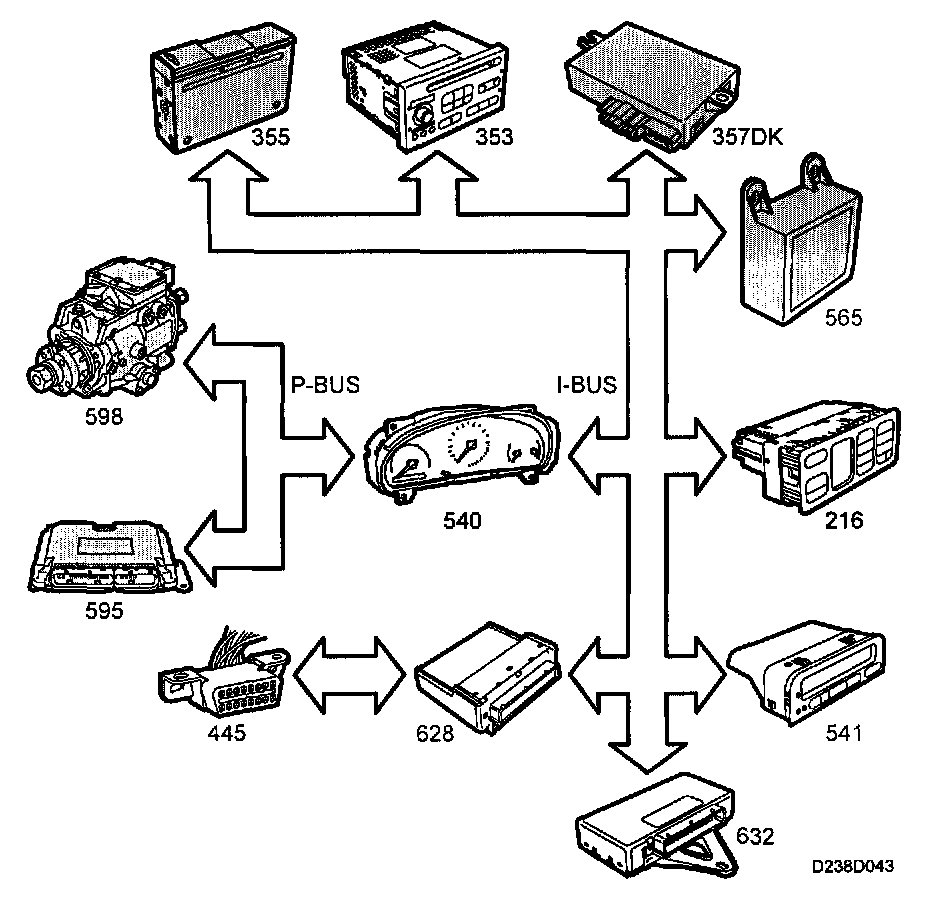

SID Unit Outputs, Bus

SID Unit Outputs, Bus:

- Info Displ Lamp (ON/OFF) used by MIU (540)
- Unit ( °C/ °F) used by ACC (216)
- Language (Swedish, English, German, French, Italian, Spanish) used by ACC (216)
- Steering wheel controls used by Audio (353)
- Rheostat value (%) used by Audio (353), ACC (216), DICE (632), MIU (540)
- Night Panel (ON/OFF) used by Audio (353), ACC (216), DICE (632), MIU (540)
- Display lighting (%) used by ACC (216), MIU (540)
- Light intensity inside vehicle (Lux) used by MIU (540)
- Engine Off Time (Min) used by ACC (216)
- Outdoor temperature ( °C/ °F) used by ACC (216), TWICE (632), DICE (628)
- Glass breakage sensor (ON/OFF) used by TWICE (632).
- Diagnostics communication
