Test Readings, 10-Pin Telephone Connector

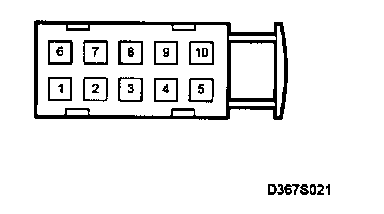

Test Readings, 10-pin Telephone Connector:

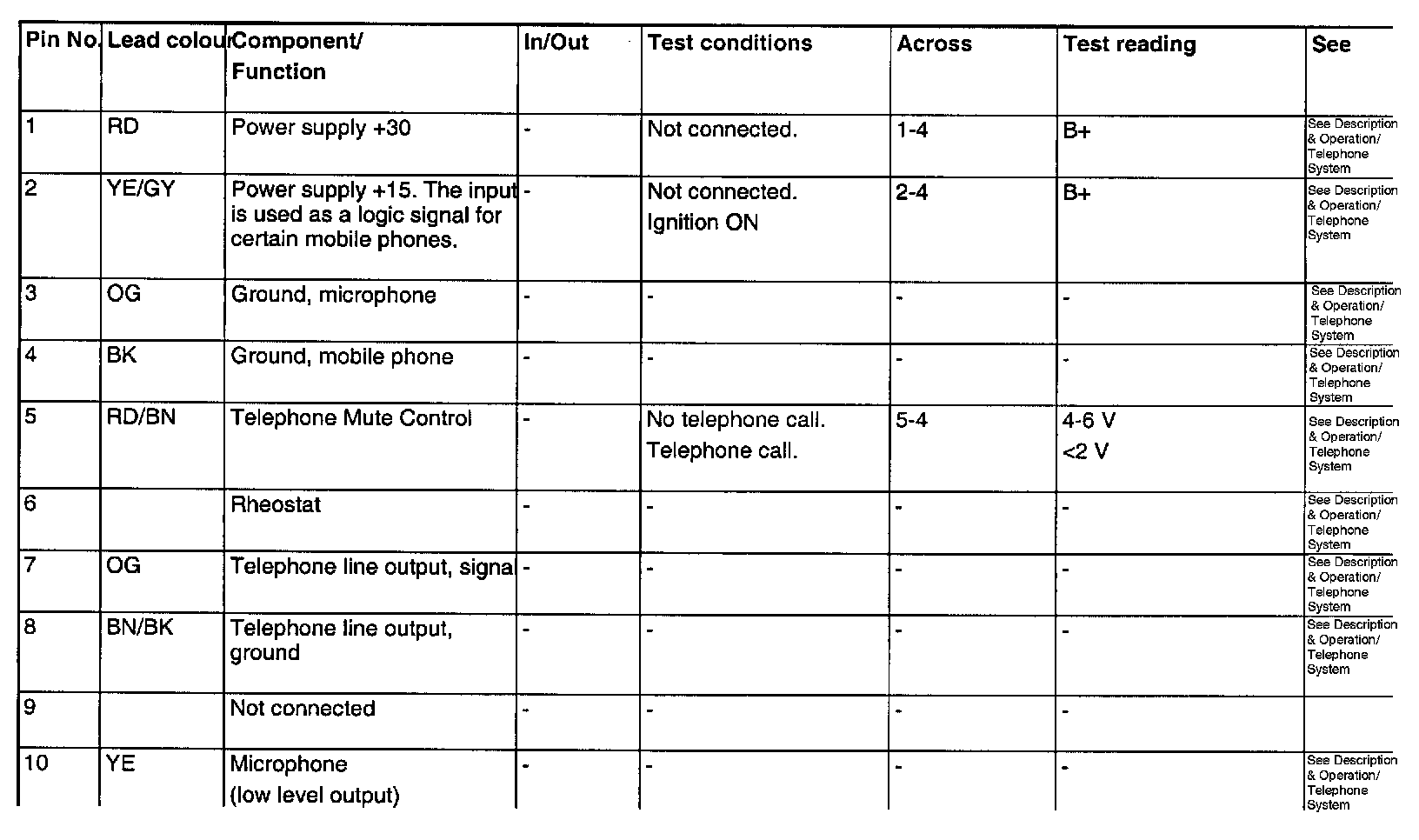

Pin No. 1 - 10:
