Tech 2 Menu Structure, Value, Activate, Immobil., Adjust, Prog.

Tech 2 Menu Structure
Diagnostic trouble codes (DTC)
Read Values / Activate
Immobilizer
Adjustment
Programming
Snapshot
System Information

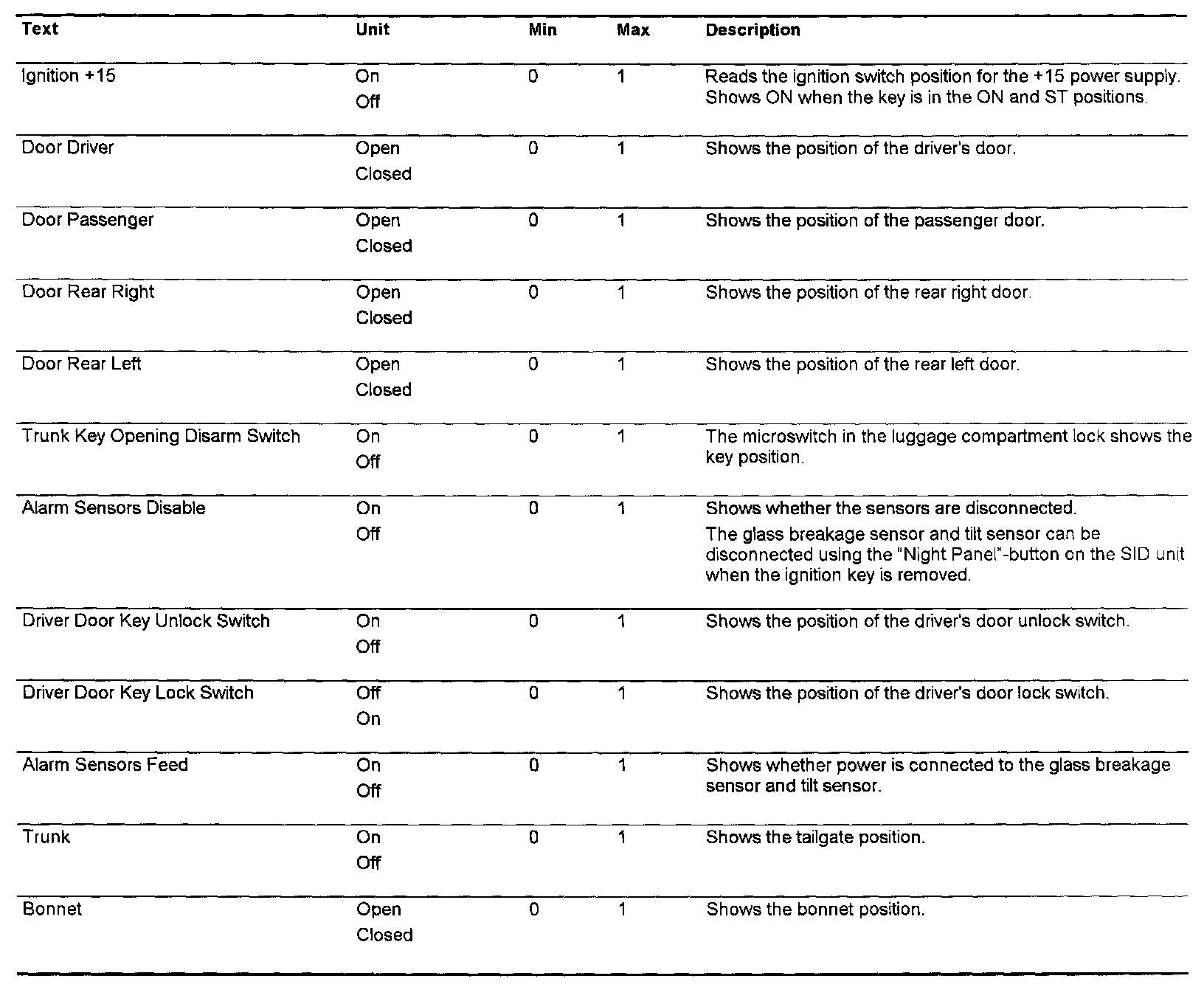

Menu "Read Values"

Menu "Read Values":

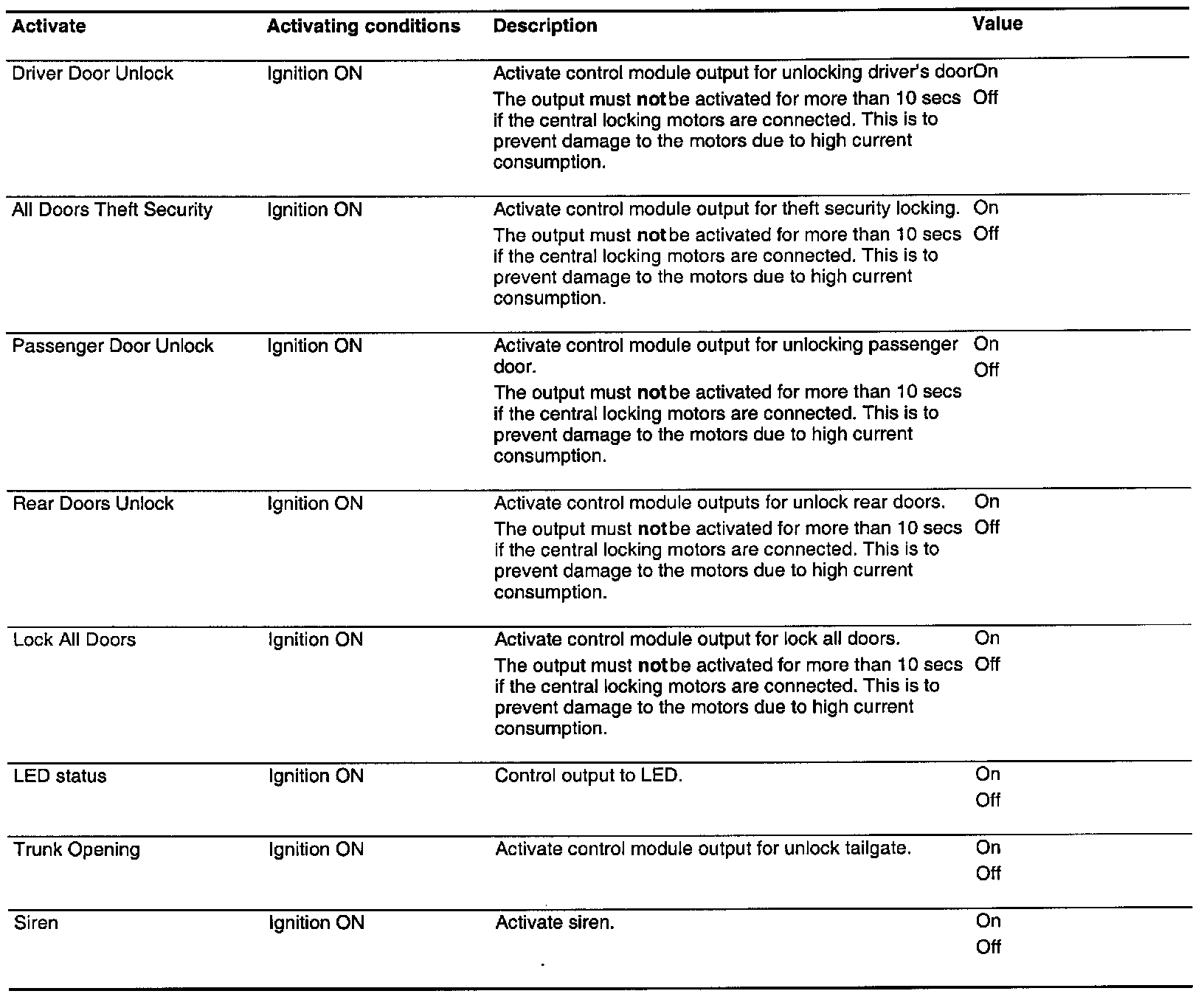

Menu "Activate"

Menu "Activate":

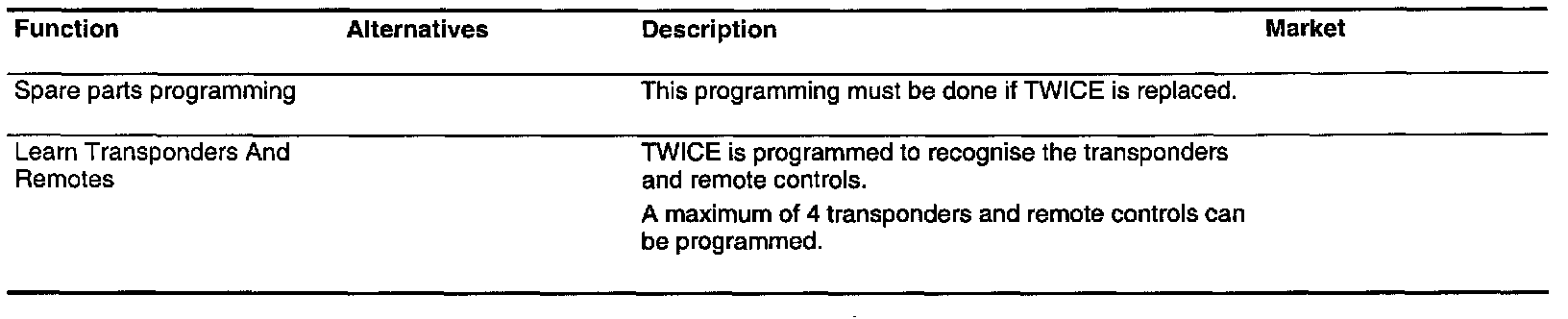

Menu "Immobilization"

Function Description
Immobilizer Combined programming of TWICE, MIU (Main Instrument Unit), and Engine Management System. This programming must be done it one of these control modules is replaced.

Menu "Adjustment"

Menu "Adjustment":

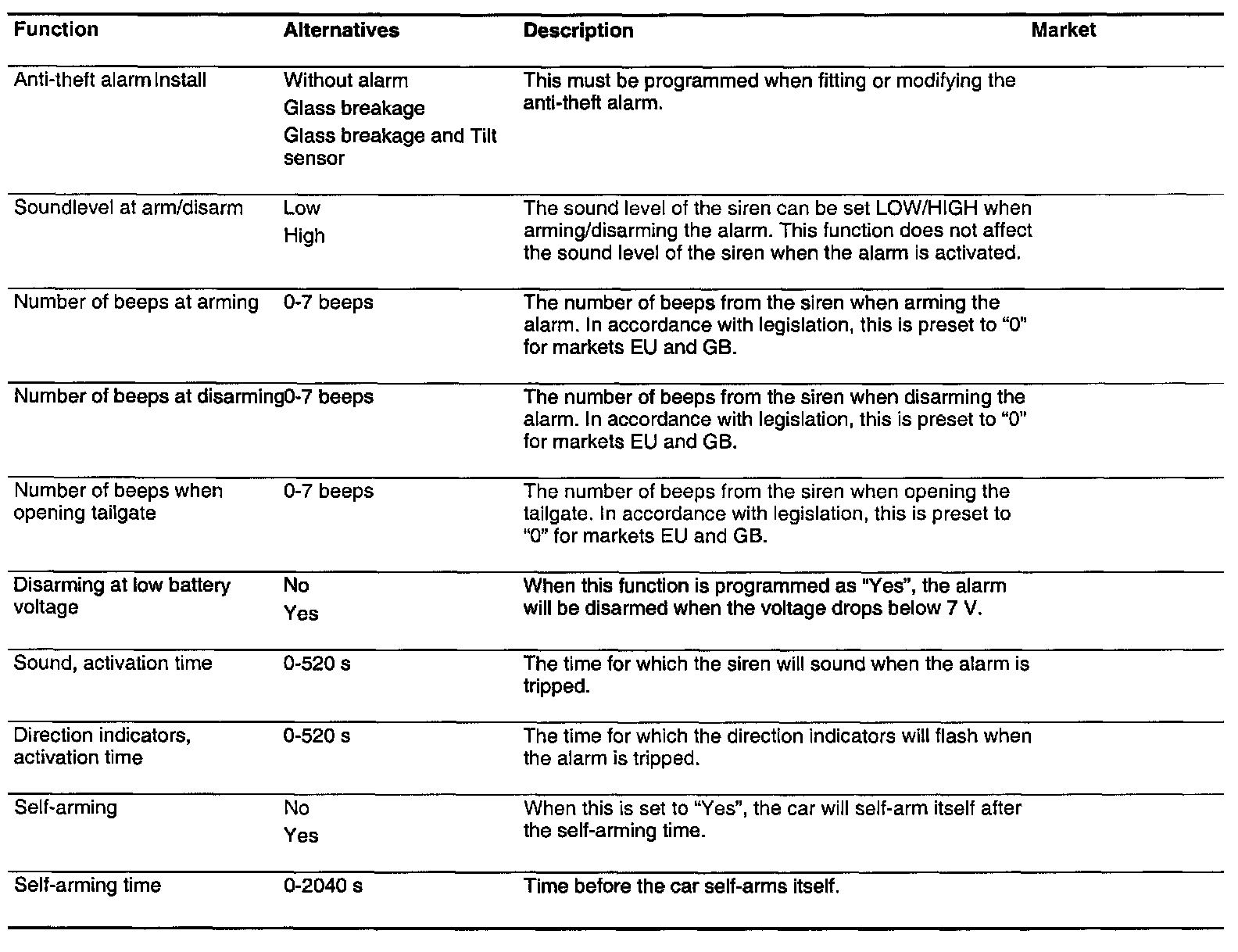

Menu "Programming"

Menu "Programming":

Menu "System Information"

Text Function
Saab Part Number Shows the SAAB 7-digit part number for the control module.
ECU Hardware Version Number Shows the supplier's X-digit part number for the control module.
ECU Software version Shows the supplier's X-digit part number for the software.
