System Overview, Heated Rear Seat

System overview, healed rear seat

System Overview, Healed Rear Seat:

- Control module, TWICE (632)
- Switch, heated rear seat (252R)
- Relay, heated rear seat (511)
- Heating pads, rear seat (64RL, 64RR)
- Control module, DICE (628)
- SID (541)
- Temperature sensor, outside air (286)

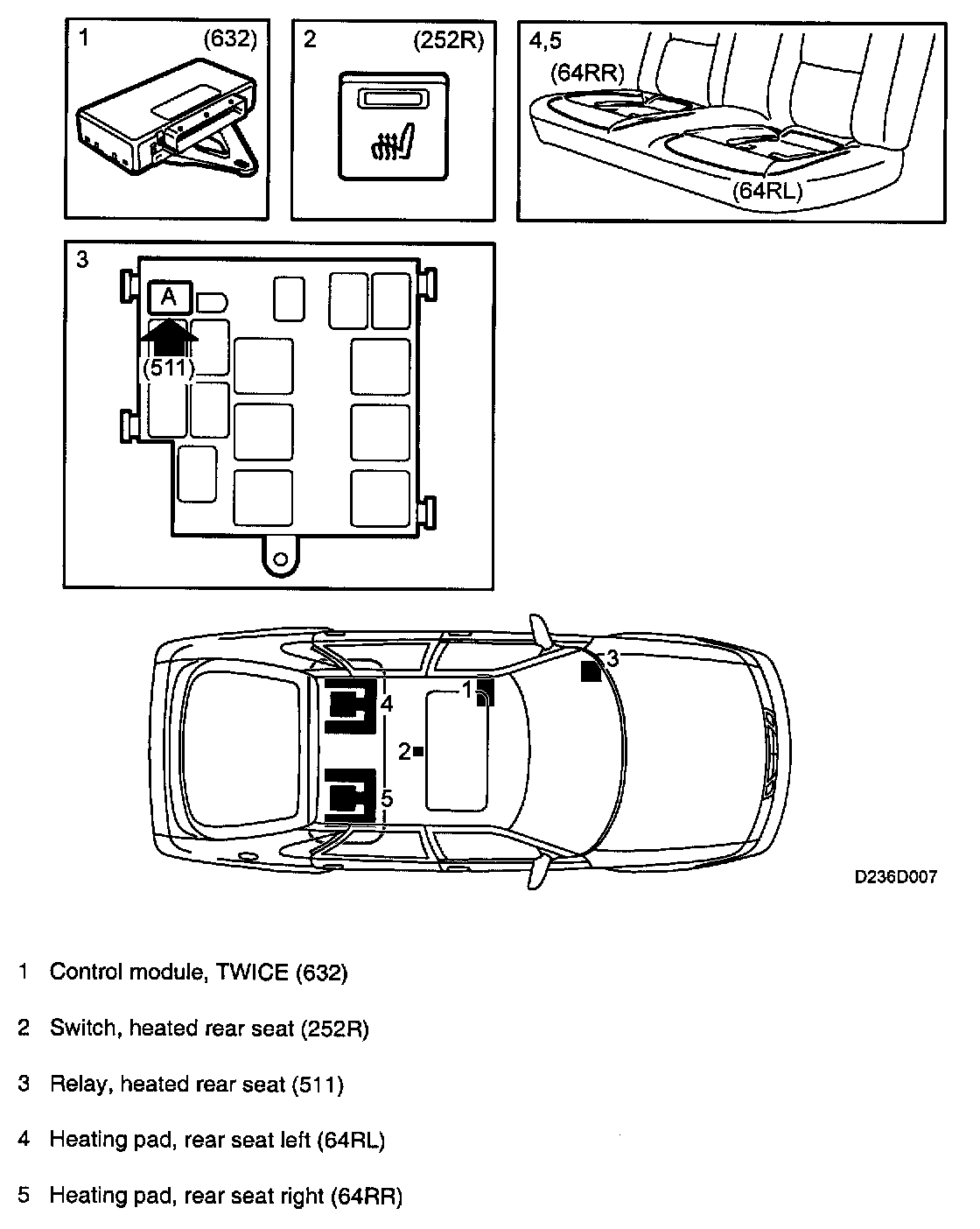

Main components, heated rear seat

Main components, heated rear seat:
