System Overview, Central Locking System, Doors

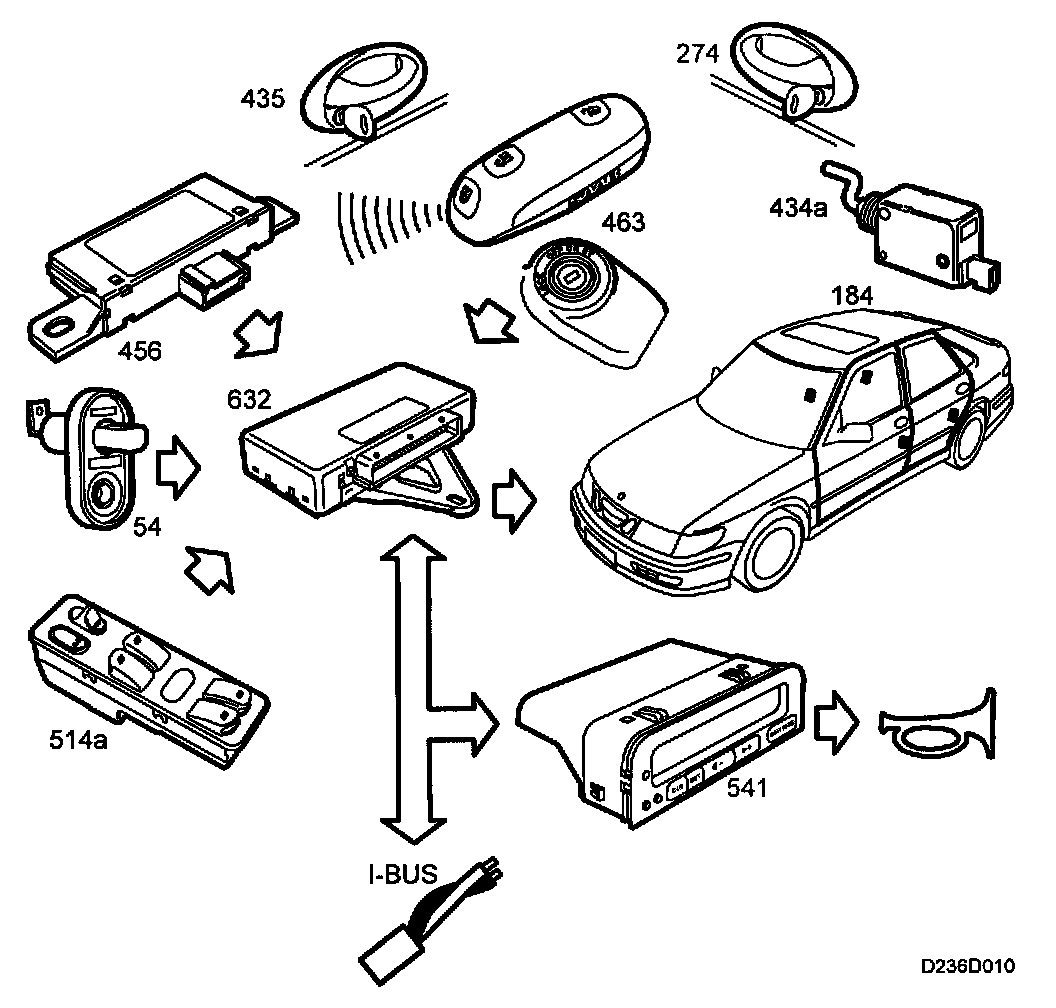

System overview, central locking system, doors


- Control module, TWICE (632)
- Car key
- Remote control
- Antenna, remote control, central locking system (456)
- Switch, simultaneous closure central locking system (514a)
- Motor, central locking system, doors (184D, 184P, 184RL, 184RR)
- SID (541)
- Antenna unit, immobilizer (463) Door switches (54)
- Microswitch, central locking system, driver's door (274)
- Microswitch, central locking system, passenger door (435)
- Solenoid, central locking system, filler cap (434a)

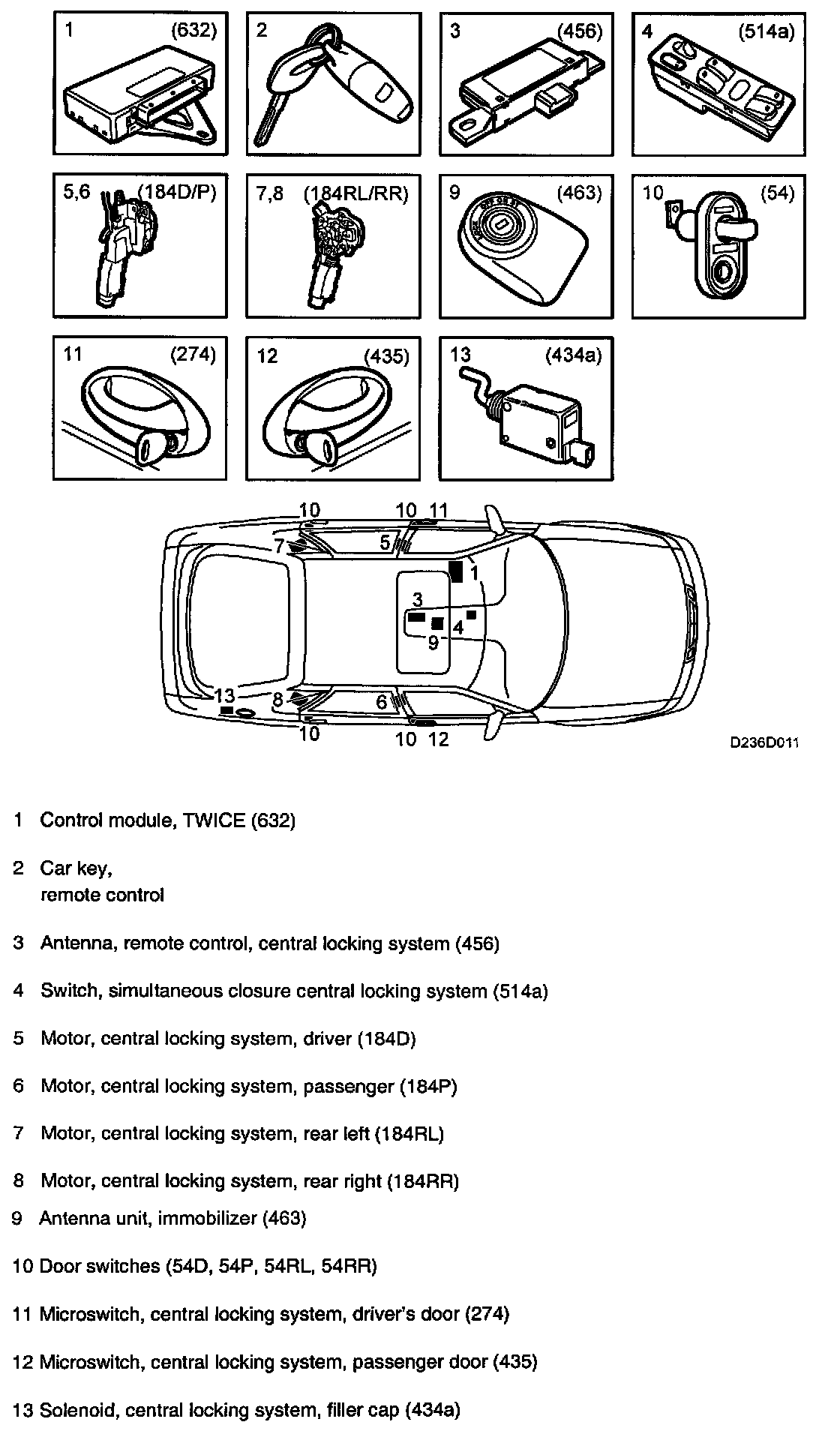

Main components, central locking system, doors
