Checking the Valve's Power Supply

Checking the Valve's Power Supply







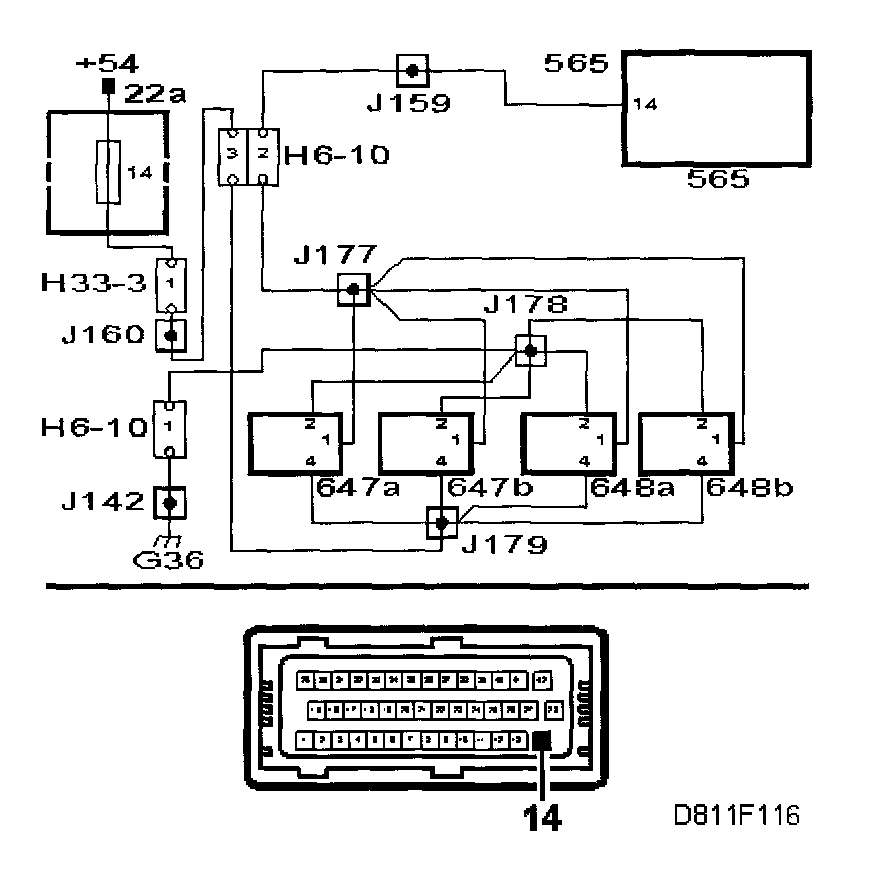

- Turn the ignition switch to the ON position.







Unplug the connector:

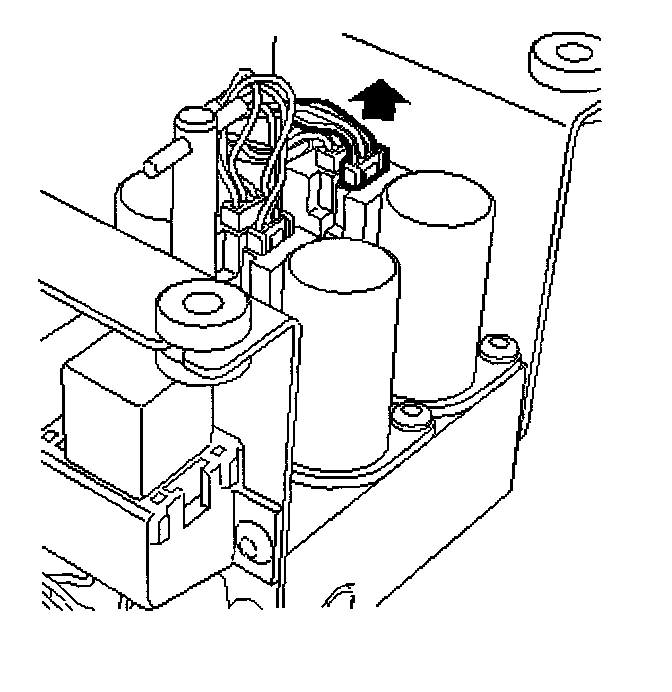

- Control valve, soft top (648a).

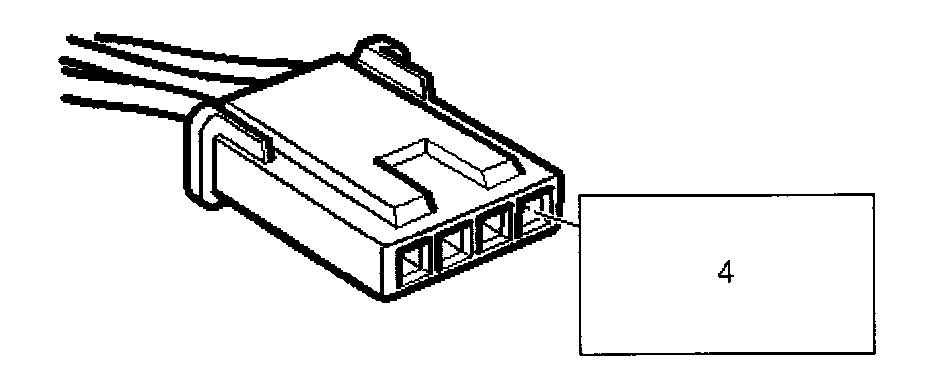

- Connect a test lamp to pin 4 of the female connector and a grounding point.







- The test lamp should light.

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - I

YES - Checking Valve Grounding
